Ultimate performance. Maximum control.

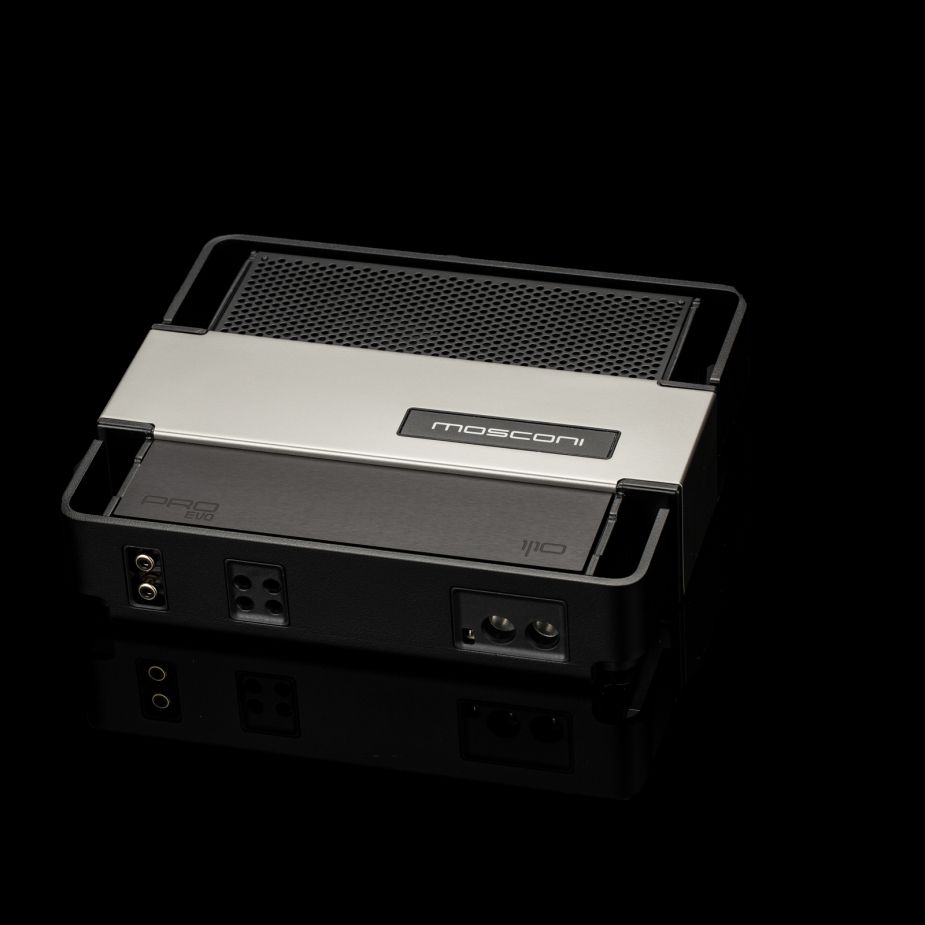

The MOSCONI PRO 1|10 EVO is a powerful mono power amplifier designed for high-performance car audio systems.
With up to 3,000 watts RMS at 1 ohm, it provides ample power while maintaining precise control over the speakers.
Thanks to its combination of efficient Class-D technology and optimized signal architecture, the PRO 1|10 EVO is ideal for subwoofer and high-power midwoofer applications.
High power density in a compact design.
The Class-D amplifier delivers high output power while requiring minimal space and generating low heat.
This makes the PRO 1|10 EVO ideal for installations with limited space.
Precise signal adjustment is possible without potentiometers.
Separate signal and power paths allow control down to the finest detail.
The PRO 1|10 AAB EVO's internal architecture strictly separates the audio signal path from the power supply.
While the power supply handles high currents and dynamic load changes, the audio signal path remains completely isolated from these influences.
This separation is implemented not only conceptually, but also at the layout level through clearly defined signal routing and separate ground domains.
The result is a significantly reduced impact from:
- power supply current peaks
- load-induced feedback into the supply rails
- electromagnetic interference within the amplifier
Even under high output levels and complex load conditions, the signal remains stable and unaltered.
Precise signal adjustment without potentiometers.

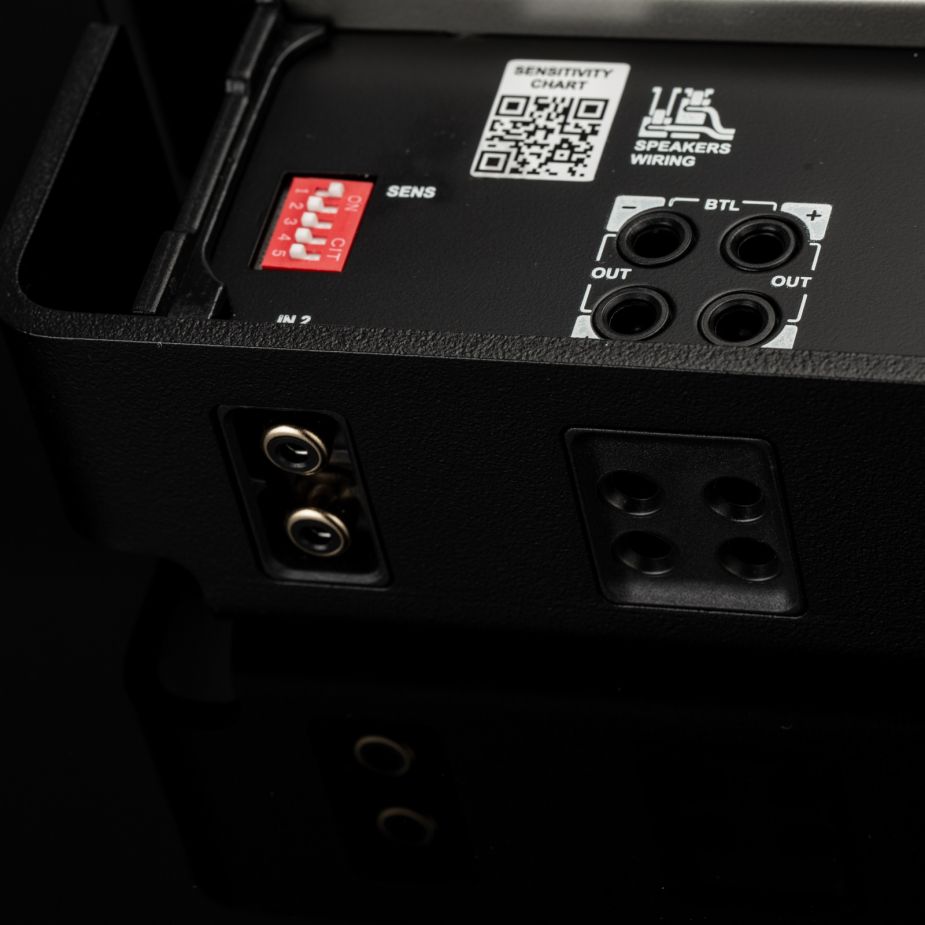

Input sensitivity can be adjusted separately for each channel via DIP switches.
This allows for consistent and long-lasting settings without the need for mechanical wear parts.
Adjustments are made in 0.25-volt increments within the range of 1 to 8,75 volts.
Optimized DirectDSP input
The integrated DirectDSP input allows for direct connection to external DSP systems.
Since signal processing in the amplifier is eliminated, the audio signal remains unchanged and low-loss.
This is particularly relevant for fully DSP-based systems.
Stable power output under real-world conditions
A microprocessor-controlled power supply ensures stable output power under real-world conditions, even with voltage fluctuations in the vehicle.
An internal system monitors temperature and operating status, actively controlling cooling.
Technical highlights:
- Class-D mono power amplifier
- Up to 3,000 watts RMS @ 1 ohm
- High damping factor (>1,000) for precise speaker control
- Efficiency-optimized design with low heat generation
- DIP switch configuration for exact signal tuning
- DirectDSP input for unaltered signal routing
- Microprocessor monitoring with temperature-controlled fan
- 4-layer PCB with 70 µm copper for minimal losses
