2 channel high performance amplifier

Mosconi Pro 2|30

  • 2 channel amplifier
  • New Class D technology
  • Up to 2 x 825 @ 2 Ohm

Overview Mosconi Pro 2|30

The MOSCONI PRO 2|30 is the first choice when it comes to maximum performance.

With the latest MOSCONI Class D technology, the PRO 2|30 is capable of driving all types of speaker or subwoofer chassis.

Thanks to its generous amplifier design and the use of the latest Class D technology, the MOSCONI 2|30 is not only the perfect playing partner for sound level applications, high-end users will also appreciate the absolute and perfect music reproduction.

  • DDSP - Direct DSP (bypassing all preamplifier circuits)

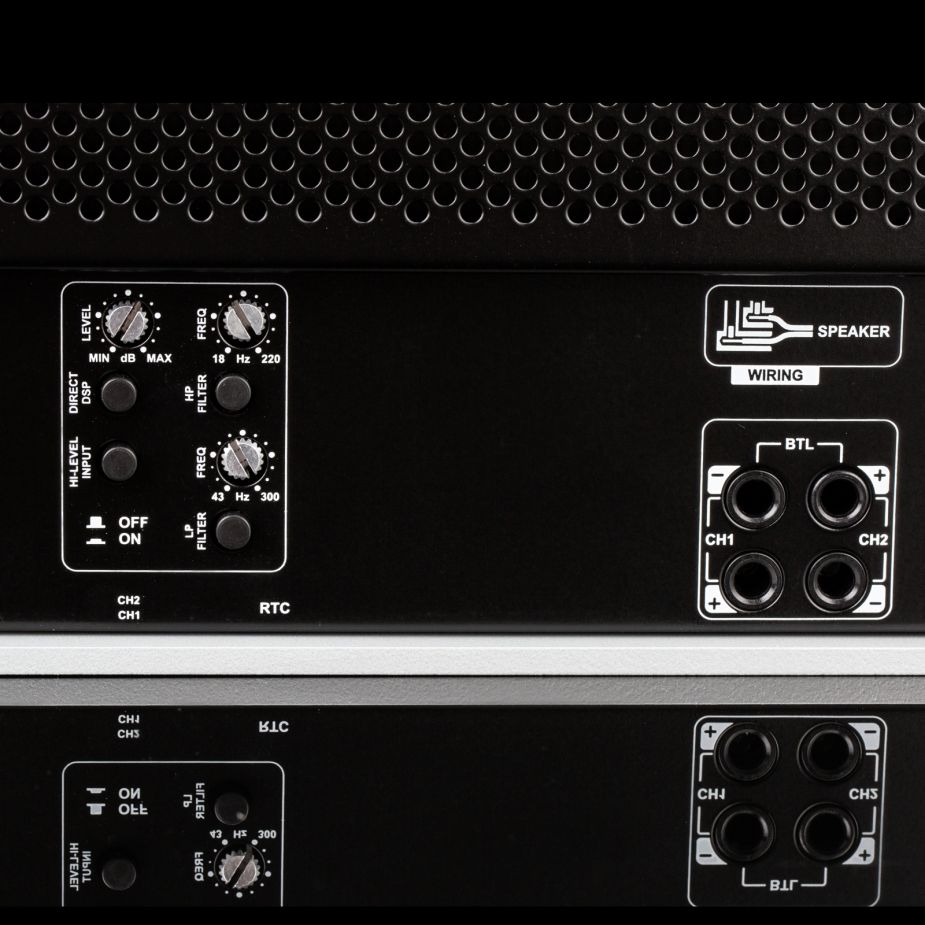

  • High Level / Low Level selectable input
  • Autosense (only in BTL mode)
  • RTC - Allows volume regulation by remote control (optional)
  • Power supply and temperature management controlled by microprocessor

Technical Data Mosconi Pro 2|30

Output Power:

  • Output power @ 4Ω:

    2 x 550 Watts

  • Output power @ 2Ω:

    2 x 825 Watts

  • Bridged Output power @ 4Ω:

    1 x 1650 Watts

  • Bridged Output power @ 2Ω:

    1 x 2500 Watts

Specifications:

  • Input sensitivity:

    0.25 V ÷ 8,3 V (4,3 V in DDSP mode)

  • Crossover:
    • LOW PASS 43 ÷ 300 Hz [24 dB/Oct]
    • HIGH PASS 18 ÷ 220 Hz [24 dB/Oct]
  • Dimensions:

    500 x 205 x 55 mm

  • Weight:

    5,0 kg

  • Housing:

    Available in black/silver finish

Download

Manual Mosconi Pro 2|30 (PDF)
