4 Channel High Performance Amplifier

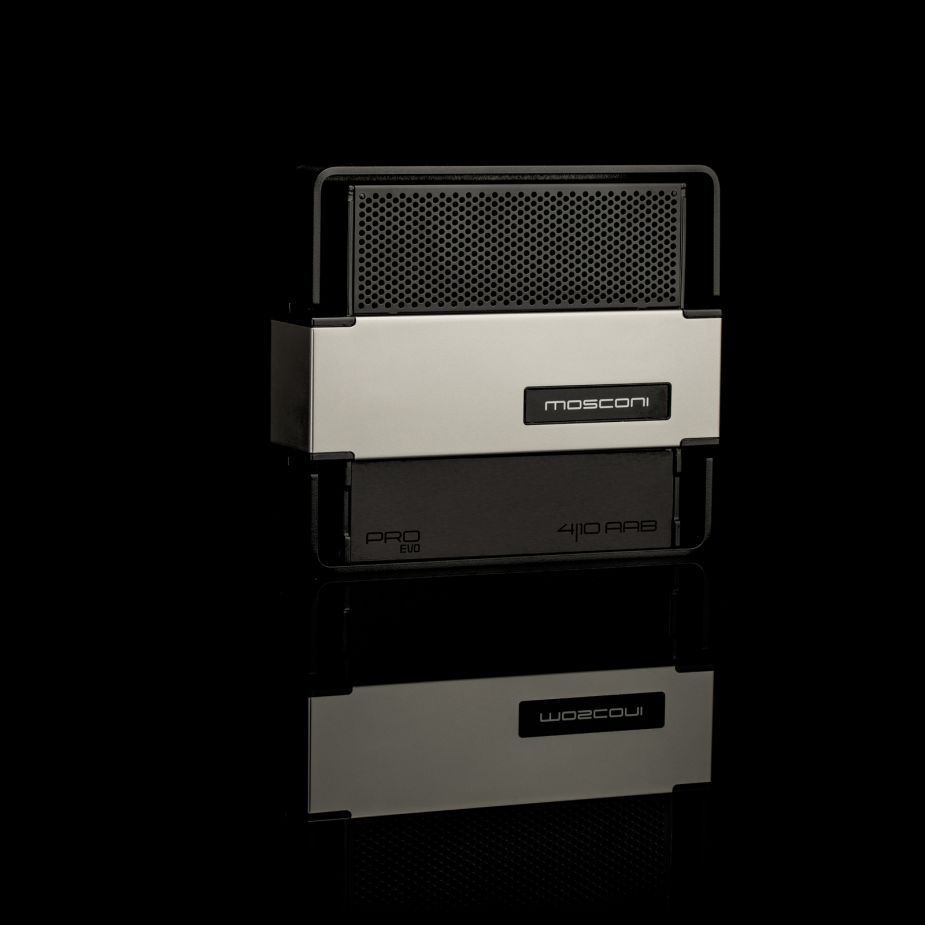

Mosconi Pro 4|10-AAB EVO

  • 4-channel amplifier
  • Class AB with AAB technology
  • 4 x 20 watts @ 4 ohms (true Class A)
  • Up to 4 x 130 watts @ 2 ohms
  • 2 x 220 watts bridged @ 4 ohms
Made in Italy
Mosconi Pro 4|10- A AB EVO, detail view

Overview Mosconi Pro 4|10-AAB EVO

Analog Reference. Engineered for Maximum Sonic Precision.

The MOSCONI PRO 4|10 AAB EVO is a 4-channel amplifier designed for demanding car audio systems where sound quality and control take center stage.

At its core is AAB technology, an amplifier concept fundamentally different from conventional Class AB amplifiers.
Instead of using a shared control stage for all power transistors, the output stage operates with distributed regulation at the component level.

The result is exceptionally stable and linear signal processing, even under real-world conditions such as temperature fluctuations, load variations, or highly dynamic music signals.

Class A at Normal Listening Levels

At normal listening levels, your music uses only a small part of the amplifier’s power on average. The MOSCONI PRO 4|10 AAB EVO operates in pure Class A up to 20 watts per channel into 4 ohms. Its output transistors conduct continuously in this range, eliminating crossover distortion. Above that, Class AB with AAB technology provides up to 4 x 130 watts RMS into 2 ohms for higher levels and deep bass.

AAB Technology: Component-Level Control

In conventional amplifiers, the entire output stage is controlled through a common operating point.
This approach assumes that all power transistors behave identically - something that never fully occurs in real-world operation.

AAB technology follows a different approach:

Each individual power transistor is monitored and regulated separately.
Local control loops ensure that every component remains within its optimal operating range at all times - regardless of:

  • temperature,
  • current flow,
  • load behavior,
  • component tolerances.

This results in significantly more stable and consistent operation across the entire amplifier stage.

Stability Instead of Compromise.

This distributed architecture reduces typical issues found in conventional amplifiers:

- thermal drift,
- uneven transistor behavior,
- unstable operating points,
- dependency on component tolerances.

Even at high output levels, with complex speaker loads and dynamic music signals, the amplifier remains controlled and predictable.

Separated Signal and Power Paths Create a Clean Foundation for Sound.

The internal architecture consistently separates the sensitive audio signal path from the power supply section.

The power supply handles high currents and rapid load changes.
The signal path, in contrast, operates with extremely small voltages and reacts sensitively to interference.

The clear separation on both layout and grounding level prevents these influences from reaching the audio signal.

This specifically reduces:

  • interference caused by current peaks,
  • load-induced feedback into the power supply,
  • internal crosstalk within the amplifier.

As a result, the signal remains clean, stable, and uncolored even at high output levels.

Sound Character: Control and Naturalness

The combination of AAB technology and clean internal architecture ensures stable playback even under real-world conditions.

This becomes especially evident in the following characteristics:

  • high detail resolution,
  • stable spatial imaging,
  • clean microdynamics,
  • controlled behavior at high output levels.

Even under increasing load, the sound remains calm, structured, and transparent.

Performance and Flexibility

Four powerful channels enable versatile system configurations:

- stereo operation,
- active multi-way systems,
- bridged operation for subwoofers.

The PRO 4|10 AAB EVO combines substantial power reserves with precise control over the loudspeaker.

Stability Under Real-World Conditions

The entire architecture is designed to remain stable even outside ideal laboratory conditions.

A high-performance power supply ensures consistent energy delivery, while internal monitoring continuously supervises temperature and operating status.

This allows the amplifier to remain reliable and controlled even under sustained high-load operation.

Precise signal adjustment without potentiometers.

Input sensitivity can be adjusted separately for each channel via DIP switches.
This allows for consistent and long-lasting settings without the need for mechanical wear parts.

Adjustments are made in 0.25-volt increments within the range of 1 to 8,75 volts.

Optimized DirectDSP input

The integrated DirectDSP input allows for direct connection to external DSP systems.

Since signal processing in the amplifier is eliminated, the audio signal remains unchanged and low-loss.
This is particularly relevant for fully DSP-based systems.


Technical data Mosconi Pro 4|10-AAB EVO

POWER OUTPUT:

  • Output power at 4 ohms:

    4 × 80 watts RMS

  • Output power at 2 ohms:

    4 × 130 watts RMS

  • Bridged output power at 4 ohms:

    2 × 220 watts RMS

  • Class A power at 4 ohms:

    4 × 20 watts RMS

  • Rated power (CEA-2006-A):

    4 × 80 watts at 14.4 V, 4 ohms, < 1% THD+N

AMPLIFIER:

  • Amplifier class:

    Class AB with AAB technology

  • THD at 4 ohms:

    < 0.055% (1 kHz, 90% rated power)

  • THD at 2 ohms:

    < 0.06% (1 kHz, 90% rated power)

  • Frequency response (−3 dB, 1 W):

    20 Hz – 20 kHz

  • Signal-to-noise ratio:

    100 dB(A), referenced to rated power

  • S/N ratio (CEA-2006-A):

    > 73 dB(A), referenced to 1 W at 4 ohms

  • Damping factor at 4 ohms:

    > 102

  • Channel separation (ref. 10 W):

    > 64 dB

  • Equivalent input noise (10 Hz–22 kHz, A-weighted):

    < 7 µV

INPUTS & OUTPUTS:

  • Inputs:

    4 × RCA, gold-plated

  • Input sensitivity:

    1–8.75 V

  • Sensitivity adjustment:

    32 settings via DIP switch, independent for each channel

  • Input impedance:

    20 kΩ

  • Speaker output:

    Gold-plated terminal block

POWER SUPPLY & PROTECTION

  • Power supply topology:

    Unregulated push-pull DC/DC converter, 50 kHz

  • Operating voltage:

    10–16 V

  • Fuse:

    1 × 80 A

  • Overall efficiency:

    > 65%

  • Idle current at 14.4 V:

    3 A

  • Standby current:

    < 2 mA

  • Mute delay:

    3 seconds

  • Start-stop compatibility:

    Down to 7.5 V for up to 300 ms

  • Fan control:

    On at 50 °C / off at 45 °C

  • Thermal shutdown / restart:

    90 °C / 70 °C

DIMENSIONS & FINISH

  • Dimensions (W × D × H):

    235 × 205 × 55 mm

  • Weight:

    2.4 kg

  • Finish:

    Black / Titanium

  • PCB:

    4-layer FR4, 70 µm copper, gold finish


Downloads MOSCONI PRO 4|10-AAB EVO

All documents for MOSCONI PRO 4|10-AAB EVO in one place.

Accessories

Mosconi Pro 4|10- A AB EVO, detail view

Similar products

Mosconi Pro 4|10- A AB EVO, detail view

Product safety and manufacturer information

Manufacturer: MOSCONI S.R.L., Via la Villa s.n., 61034 Fossombrone, Italy
Email: info@mos-hta.it · www.mos-hta.it

Worldwide distribution and contact: Gladen Europe GmbH, Bertha-Benz-Str. 9, 72141 Walddorfhaeslach, Germany
Email: info@gladen.com

Safety information

  • Observe the operating voltage: depending on the version, the unit is designed for 12 V or 24 V (see type plate and technical data). Operation at any other voltage damages the unit.
  • Ensure adequate ventilation. Do not cover the unit or install it under carpet, damping material or cargo. The housing can get hot during operation.
  • Choose the fuse rating by cable cross-section, not by amplifier power. Main fuse no more than 40 cm from the battery positive terminal.
  • Speaker impedance and bridged operation only as stated in the manual. Too low an impedance overloads the unit.
  • Screw the unit down firmly; do not fix it with hook-and-loop tape or cable ties alone.
  • Installation by qualified persons only. Disconnect the battery as specified by the vehicle manufacturer before starting work.
  • Do not mount in airbag deployment zones, in the driver's field of view or above the footwell or pedals.
  • Do not work on high-voltage systems of hybrid and electric vehicles. Do not touch orange cables.
  • For dry interiors of road vehicles only. Not for marine, trailer, outdoor or wet-area use.
  • High volume can permanently damage your hearing and mask warning signals, sirens and announcements.
  • Units with DSP: make adjustments only while the vehicle is stationary. Afterwards check that warning signals, parking aids and announcements remain audible. Update firmware only with the file released for the model and not with a weak battery.

Full safety and installation instructions: manual in the download area. Product safety questions or reports: Product safety page or info@gladen.com, or directly to the manufacturer at info@mos-hta.it.
