4 channel high performance amplifier

Mosconi PRO 4|30

4 channel amplifier
Class A-AB technology
Up to 4 x 225 Watts @ 2 Ohm

Overview Mosconi pro 4|30

Filippo Kania's masterpiece. (chief developer Mosconi)

The MOSCONI PRO 4|30 is a high-end 4-channel amplifier with a new Advanced AA/B amplifier technology. With this revolutionary AA/B circuit, the PRO 4|30 runs up to 30 Watts RMS in pure Class A mode and spoils the listener with everything that makes a Class A amplifier: airy, fine, rich in detail with an incredible amount of space.

With the combination of an extremely open, finely drawn sound image and its unique naturalness, the PRO 4|30 inspires music from the very first beat.

When performance and headroom are required, it packs a punch with 170 Watts RMS (at 4 Ohm) per channel (450 W bridged).

Technical Data Mosconi Pro 4|30

Output Power:

Output power @ 4Ω:

4 x 170 Watts
Output power @ 2Ω:

4 x 225 Watts
Bridged Output power @ 4Ω:

2 x 450 Watts

Specifications:

Input sensitivity:
- 0.35 V ÷ 12 V (5.3 V in DDSP mode) [CH 1/2/3/4]
Dimensions:

500 x 205 x 55 mm
Weight:

5,1 kg

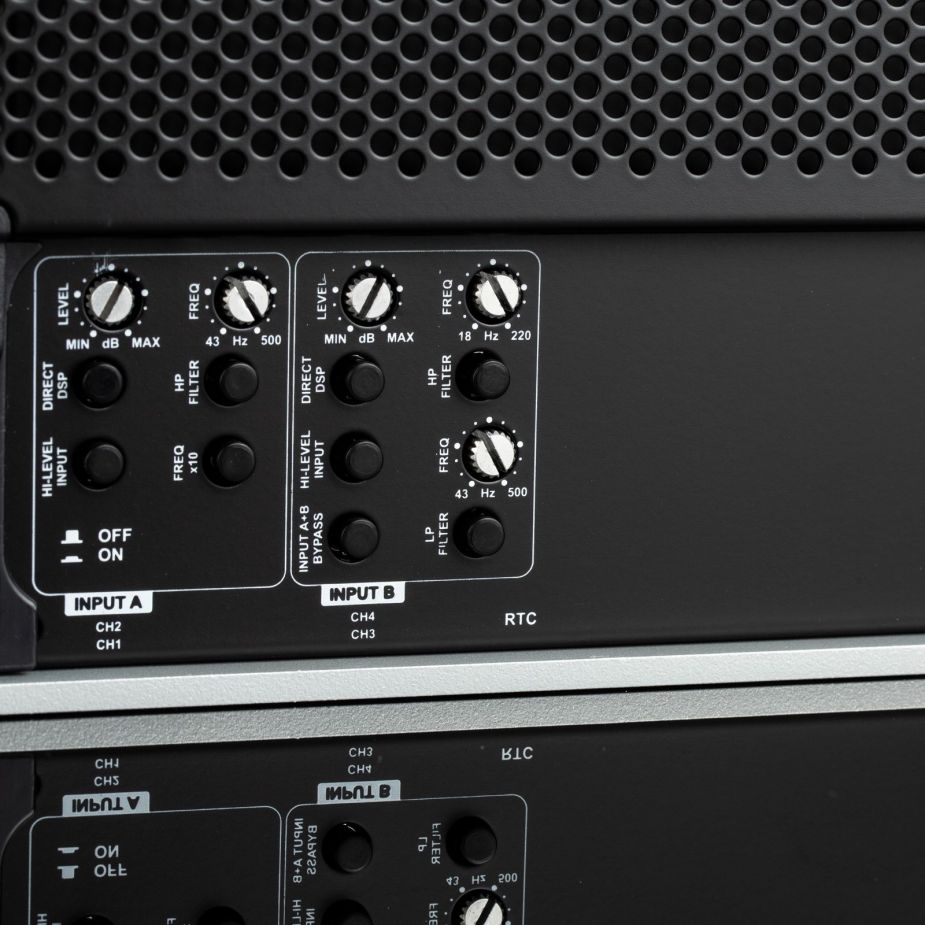

Crossover:
- CH 1/2 = HP: 43 ÷ 500 Hz (x 1) or 430 ÷ 5000 Hz (x 10)
- CH 3/4 = HP: 18 ÷ 220 Hz & LP: 43 ÷ 500 Hz
Signal to Noise Ratio:

> 83 dBA (ref: 1 Watt into 4 Ohm)

Download

Manual Mosconi Pro 4|30 (PDF)
