4 channel high performance amplifier

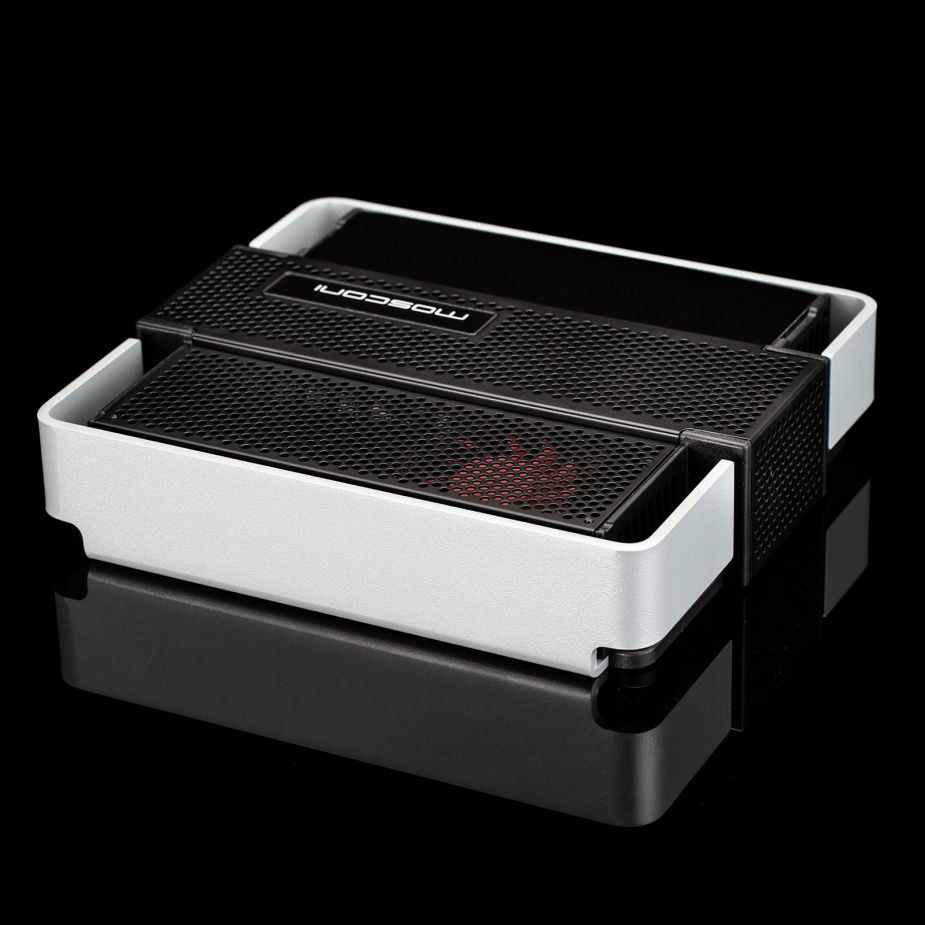

Mosconi Pro 4|10

  • 4 channel amplifier
  • Class AB technology
  • Up to 4 x 160 Watts @ 2 Ohm

Overview Mosconi Pro 4|10

The Mosconi Pro 4|10 amplifier is a classic 4 channel Class AB amplifier. Equipped with active crossovers, autosense function as well as a remote level control input, it is very versatile in the vehicle.

  • DDSP - Direct DSP (bypassing all preamplifier circuits)
  • High level / low level selectable input
  • Autosense (only in BTL mode)
  • RTC - Allows volume regulation by remote control (optional)
  • Power supply and temperature management controlled by microprocessor

Technical Data Mosconi Pro 4|10

Output Power:

  • Output power @ 4Ω:

    4 x 120 Watts

  • Output power @ 2Ω:

    4 x 160 Watts

  • Bridged Output power @ 4Ω:

    2 x 320 Watts

Specifications:

  • Input sensitivity:

    0.35 V ÷ 12 V (6.2 V in DDSP mode)

  • Crossover:
    • CH 1/2= HP: 43 ÷ 500 Hz (x 1) or 430 ÷ 5000 Hz (x 10)
    • CH 3/4= HP: 50 ÷ 200 Hz & LP: (430 ÷ 5000 Hz)
  • Dimensions:

    235 x 205 x 55 mm

  • Weight:

    2,3 kg

  • Housing:

    Available in black/silver finish

Download

Datasheet Mosconi Pro 4|10 (PDF)
Manual Mosconi Pro 4|10 (PDF)
