This product is no longer available. This page remains in the product archive with technical data and downloads. You can find current products under MOSCONI PRO EVO.

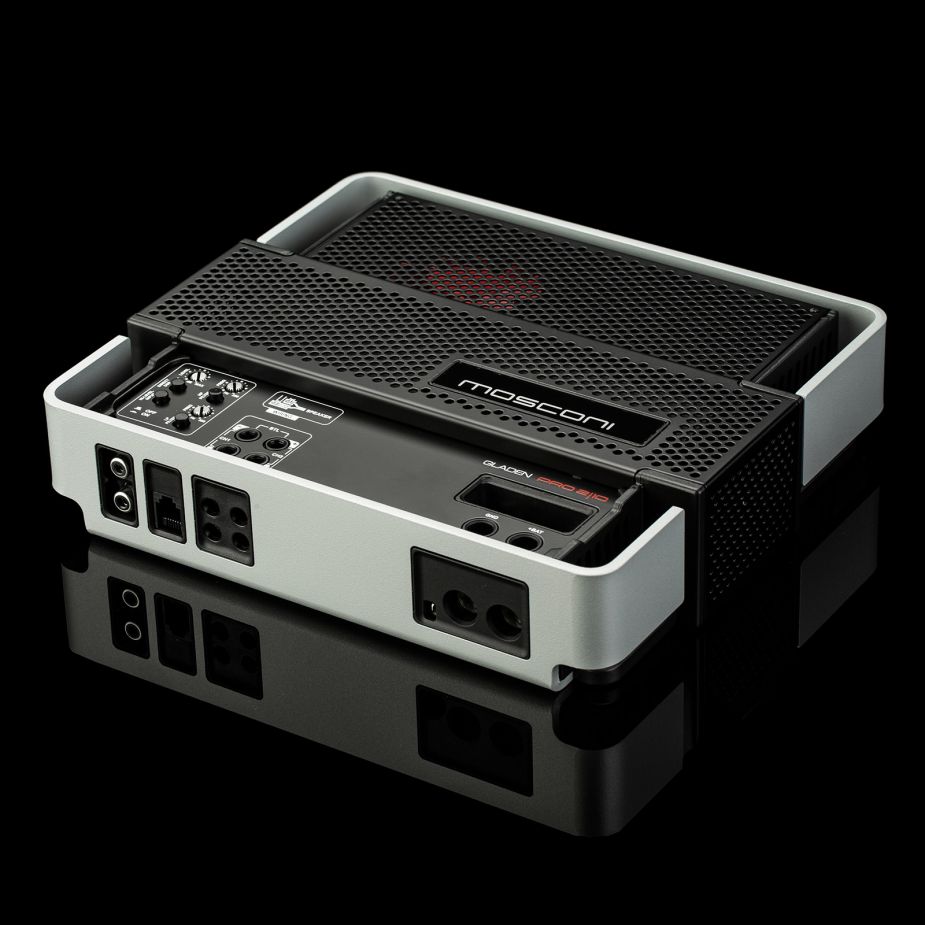

Mosconi Pro 2|10 2 channel high performance amplifier, image 1

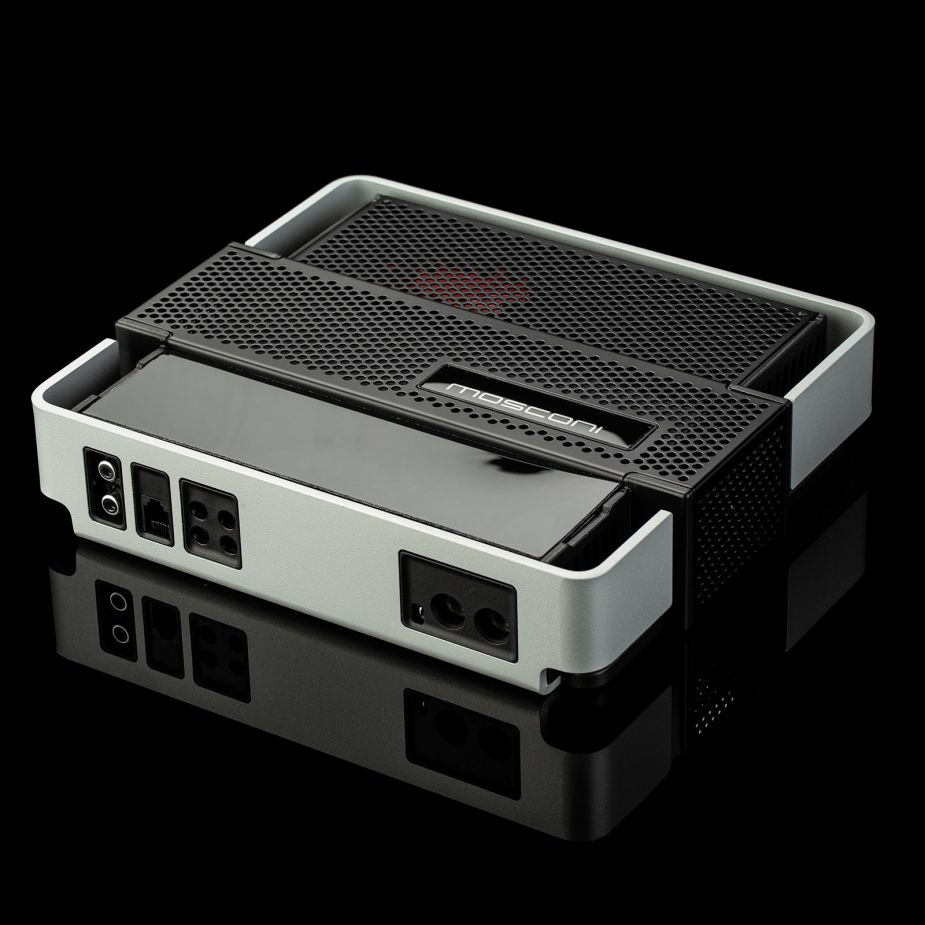

Mosconi Pro 2|10 2 channel high performance amplifier, image 2

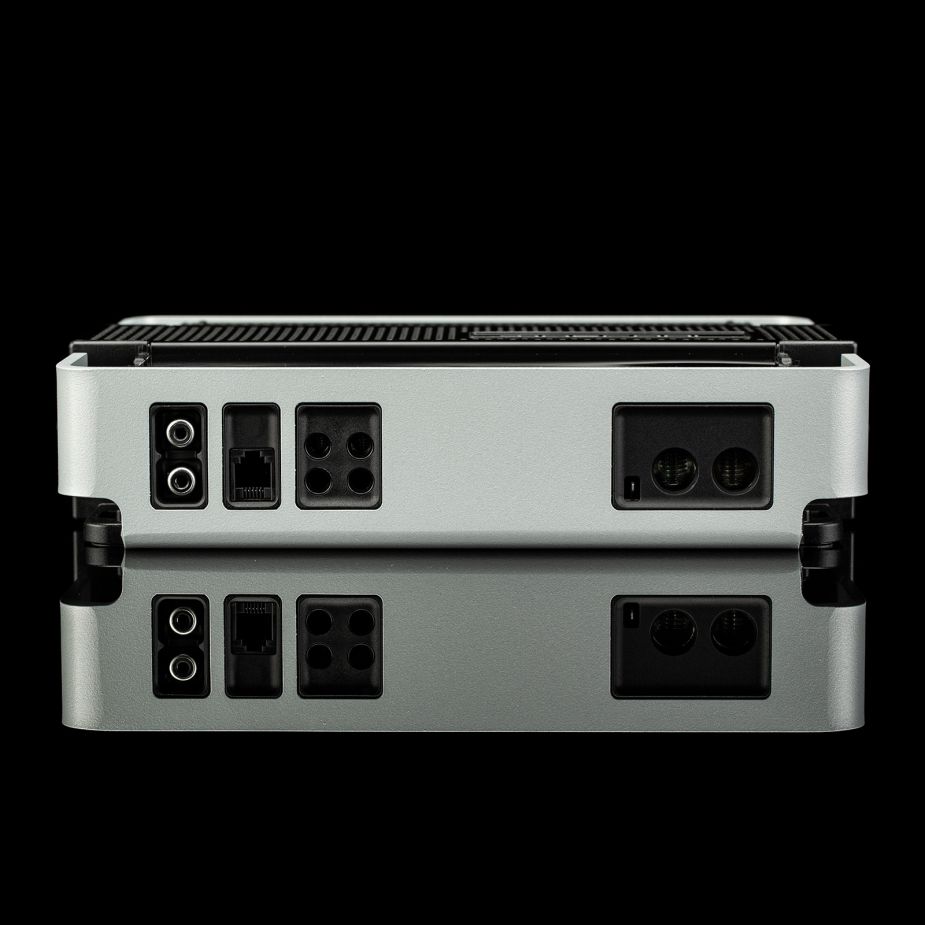

Mosconi Pro 2|10 2 channel high performance amplifier, image 3

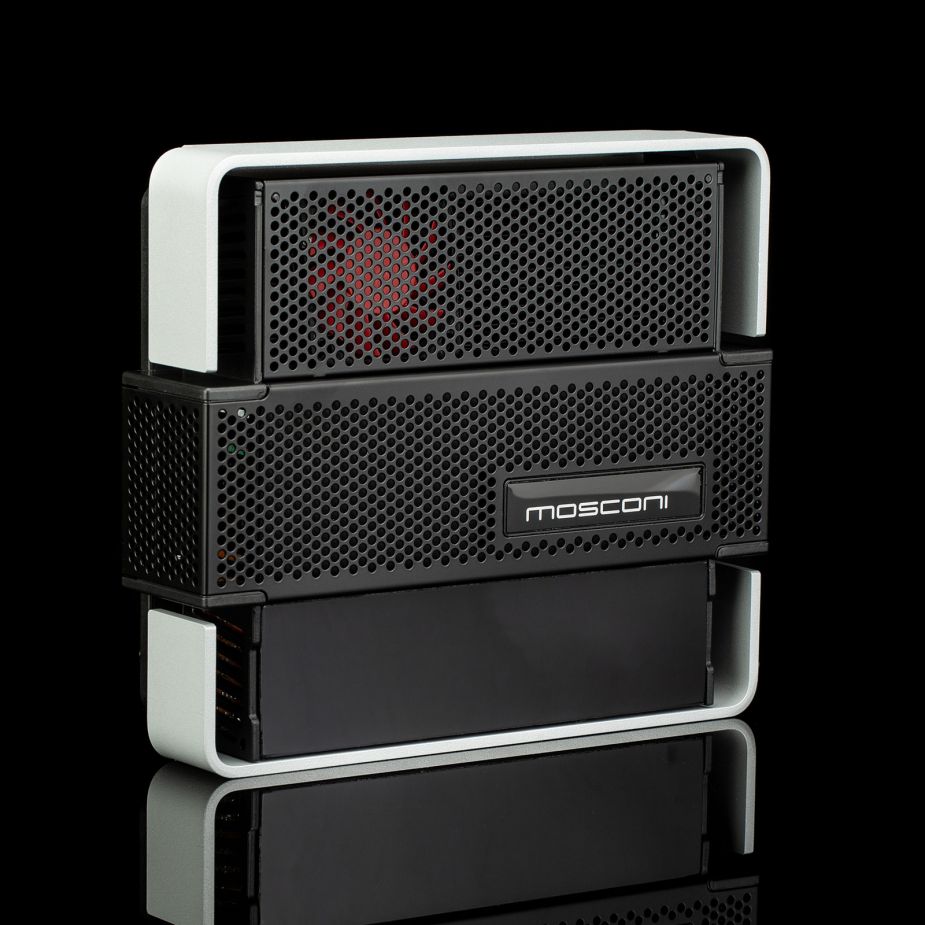

Mosconi Pro 2|10 2 channel high performance amplifier, image 4

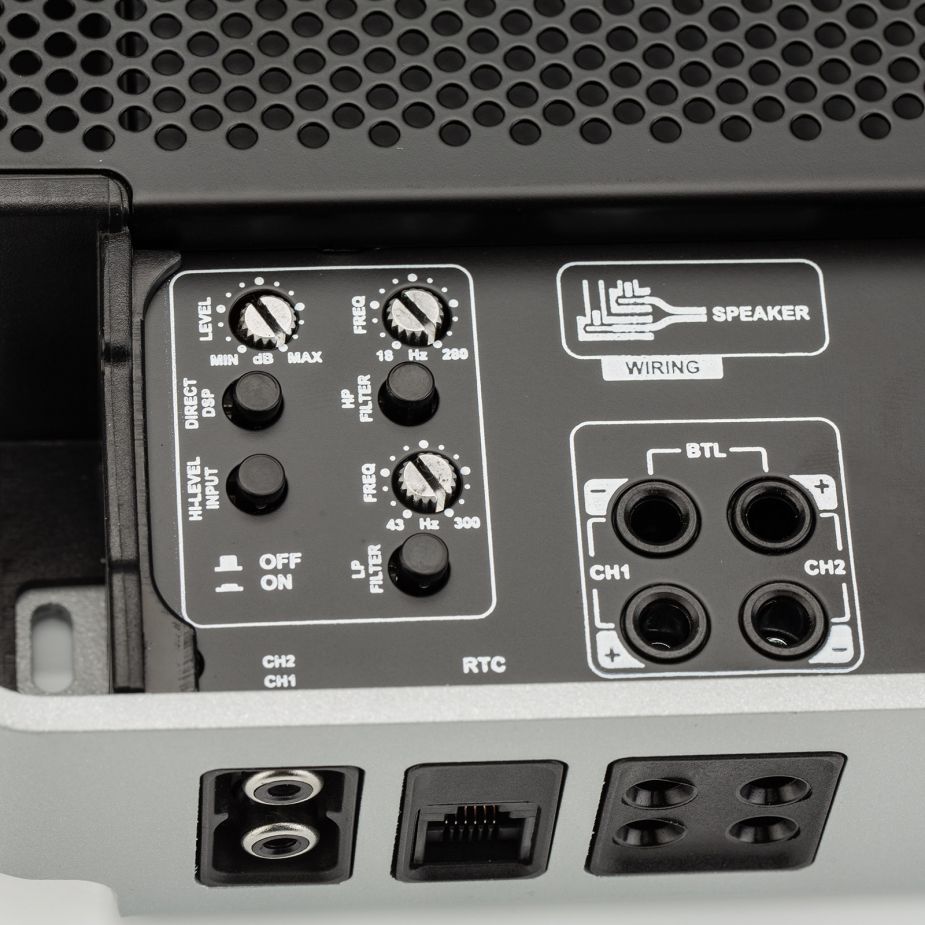

Mosconi Pro 2|10 2 channel high performance amplifier, image 5

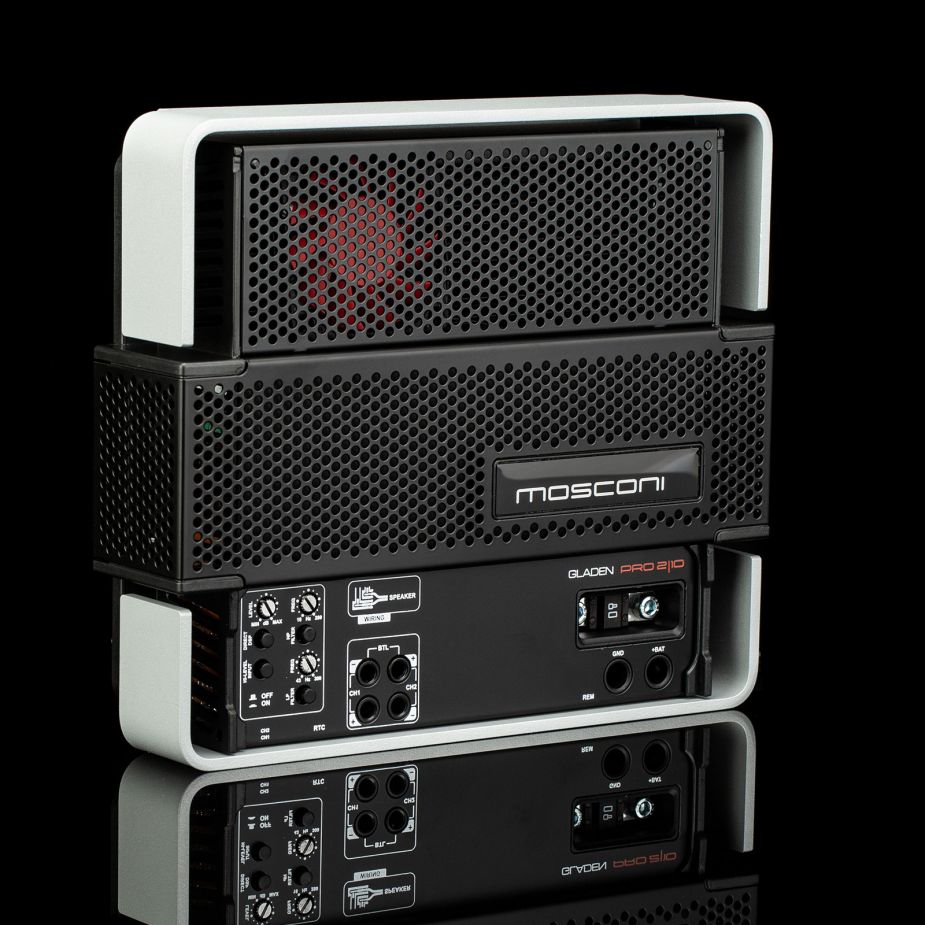

Mosconi Pro 2|10 2 channel high performance amplifier, image 6

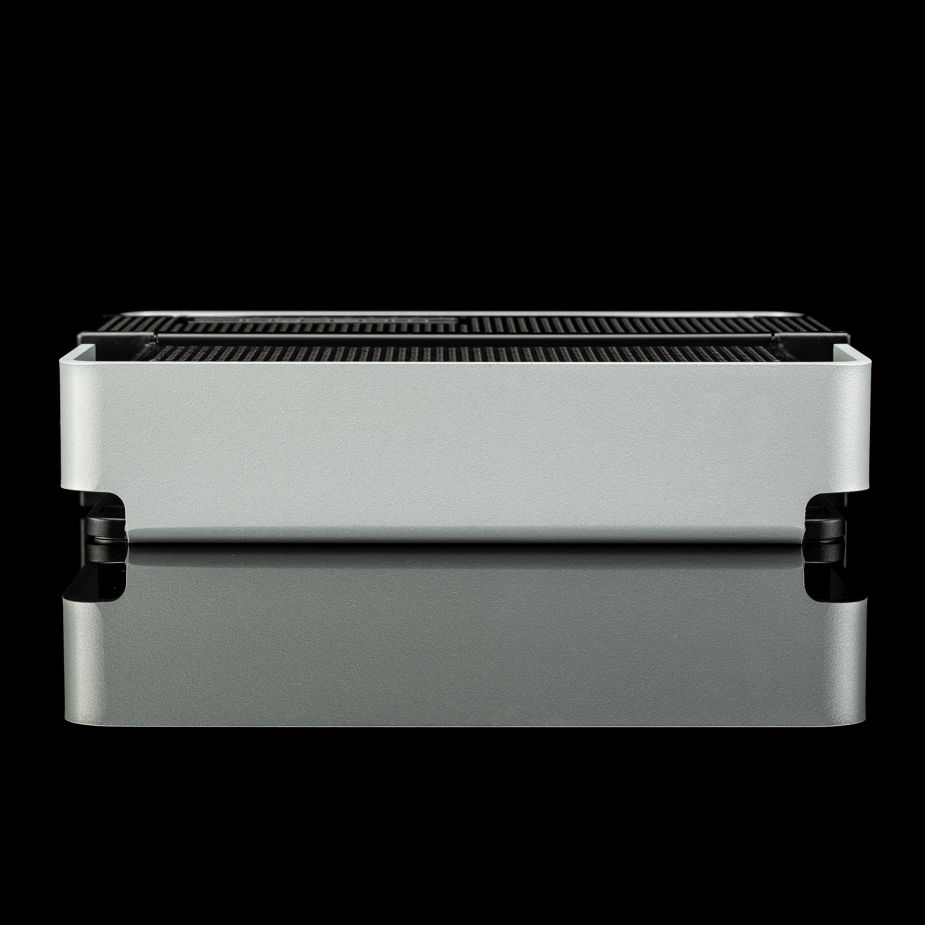

Mosconi Pro 2|10 2 channel high performance amplifier, image 7

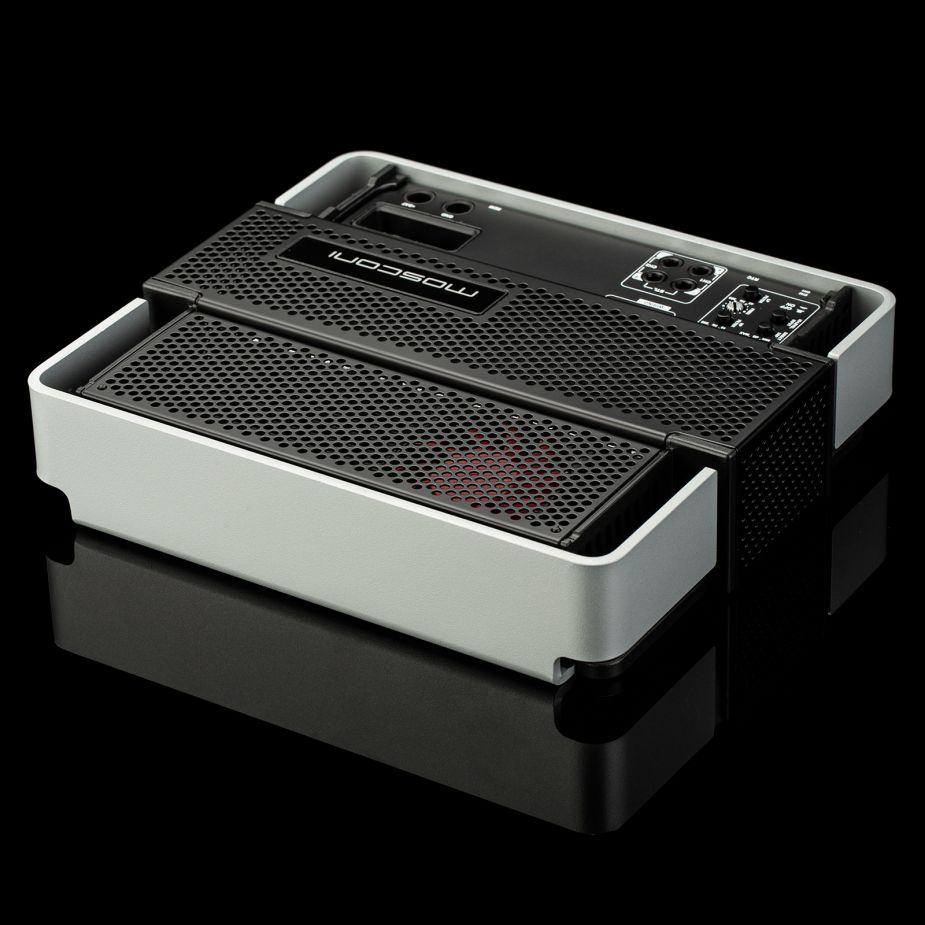

Mosconi Pro 2|10 2 channel high performance amplifier, image 8
  • Mosconi Pro 2|10 2 channel high performance amplifier, image 1
  • Mosconi Pro 2|10 2 channel high performance amplifier, image 2
  • Mosconi Pro 2|10 2 channel high performance amplifier, image 3
  • Mosconi Pro 2|10 2 channel high performance amplifier, image 4
  • Mosconi Pro 2|10 2 channel high performance amplifier, image 5
  • Mosconi Pro 2|10 2 channel high performance amplifier, image 6
  • Mosconi Pro 2|10 2 channel high performance amplifier, image 7
  • Mosconi Pro 2|10 2 channel high performance amplifier, image 8

2 channel high performance amplifier

Mosconi Pro 2|10

  • 2 channel amplifier
  • Class AB technology
  • Up to 2 x 360 @ 2 Ohm

Overview Mosconi Pro 2|10

The Mosconi Pro 2|10 amplifier is a classic 2 channel Class AB amplifier. Equipped with active crossovers, autosense function as well as a remote level control input, it is very versatile.

  • DDSP - Direct DSP (bypassing all preamplifier circuits)
  • High Level / Low Level selectable input
  • Autosense (only in BTL mode)
  • RTC - Allows volume regulation by remote control (optional)
  • Power supply and temperature management controlled by microprocessor

Technical Data Mosconi Pro 2|10

Output Power:

  • Output power @ 4Ω:

    2 x 240 Watts

  • Output power @ 2Ω:

    2 x 360 Watts

  • Bridged Output power @ 4Ω:

    1 x 720 Watts

Specifications:

  • Input sensitivity:

    0.35 V ÷ 12 V (6.2 V in DDSP mode)

  • Crossover:
    • LOW PASS 43 ÷ 300 Hz [24 dB/Oct]
    • HIGH PASS 18 ÷ 280 Hz [24 dB/Oct]
  • Dimensions:

    235 x 205 x 55 mm

  • Weight:

    2,3 kg

  • Housing:

    Available in black/silver finish

Download

Datasheet Mosconi Pro 2|10 (PDF)
Manual Mosconi Pro 2|10 (PDF)

Product safety and manufacturer information

Manufacturer: MOSCONI S.R.L., Via la Villa s.n., 61034 Fossombrone, Italy
Email: info@mos-hta.it · www.mos-hta.it

Worldwide distribution and contact: Gladen Europe GmbH, Bertha-Benz-Str. 9, 72141 Walddorfhaeslach, Germany
Email: info@gladen.com

Safety information

  • Observe the operating voltage: depending on the version, the unit is designed for 12 V or 24 V (see type plate and technical data). Operation at any other voltage damages the unit.
  • Ensure adequate ventilation. Do not cover the unit or install it under carpet, damping material or cargo. The housing can get hot during operation.
  • Choose the fuse rating by cable cross-section, not by amplifier power. Main fuse no more than 40 cm from the battery positive terminal.
  • Speaker impedance and bridged operation only as stated in the manual. Too low an impedance overloads the unit.
  • Screw the unit down firmly; do not fix it with hook-and-loop tape or cable ties alone.
  • Installation by qualified persons only. Disconnect the battery as specified by the vehicle manufacturer before starting work.
  • Do not mount in airbag deployment zones, in the driver's field of view or above the footwell or pedals.
  • Do not work on high-voltage systems of hybrid and electric vehicles. Do not touch orange cables.
  • For dry interiors of road vehicles only. Not for marine, trailer, outdoor or wet-area use.
  • High volume can permanently damage your hearing and mask warning signals, sirens and announcements.
  • Units with DSP: make adjustments only while the vehicle is stationary. Afterwards check that warning signals, parking aids and announcements remain audible. Update firmware only with the file released for the model and not with a weak battery.

Full safety and installation instructions: manual in the download area. Product safety questions or reports: Product safety page or info@gladen.com, or directly to the manufacturer at info@mos-hta.it.
