4 channel PWM amplifier with integrated DSP

Mosconi Pico 4|8 DSP

  • 4 channel amplifier
  • Class D technology
  • Integrated 8 channel DSP
  • Up to 460 Watts total power

Overview Pico Mosconi 4|8 DSP

Perfect OEM integration:

Powerful DSP amplifier optimized for factory radio use. Six analog inputs up to 30 V, flexible routing, 3 x input EQ and delay. With 4 x 90 Watts ideal for active and semi-active systems, as well as classic front + rear application. With two digital inputs (SP-Dif and BT+) and two processed line out ready for the future.

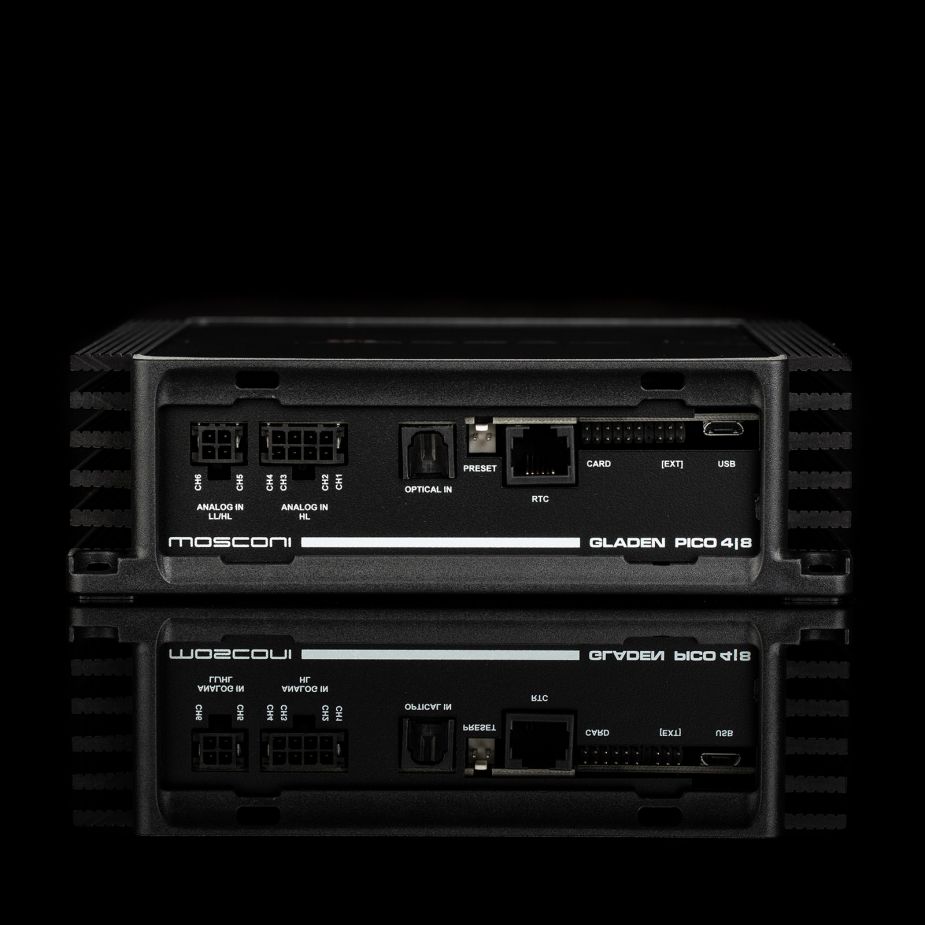

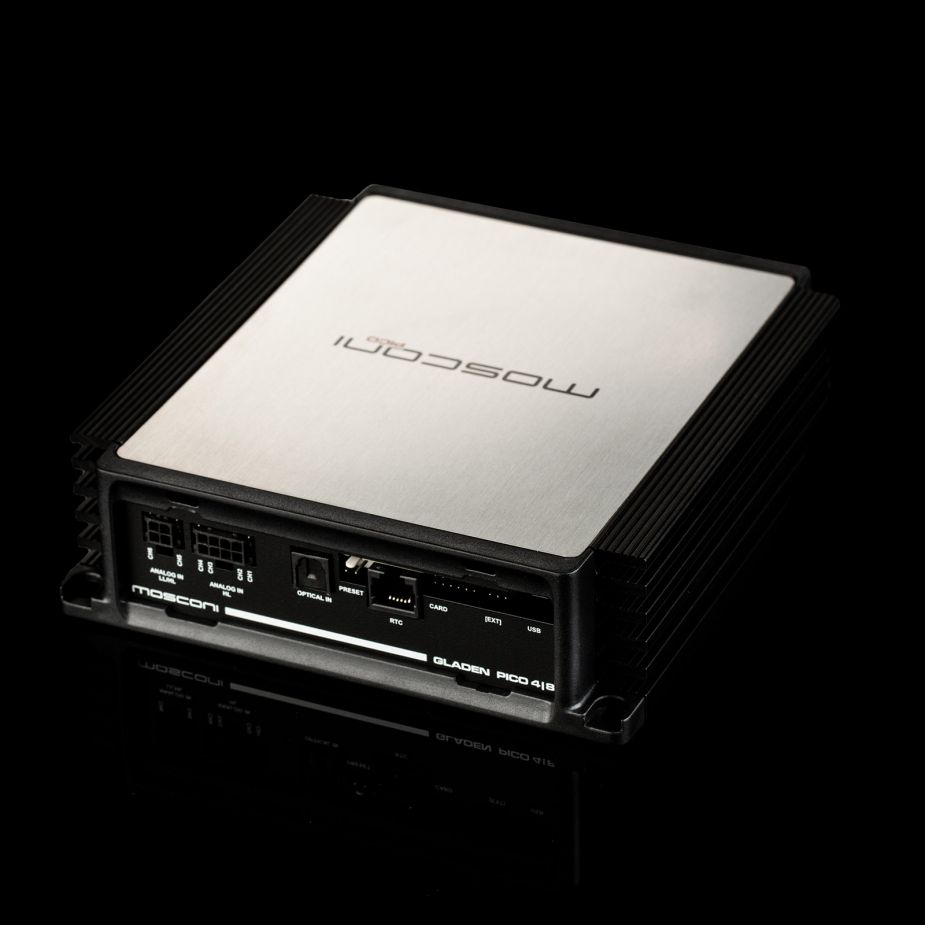

Input:

  • 4 x analog inputs balanced (high-level) up to 30 V
  • 2 x analog inputs switchable (high level / low level)
  • 1 x digital input SP-Dif optical (8 kHz - 96 kHz sampling rate)
  • 1 x bluetooth port with SP-Dif - TTL (8 kHz - 96 kHz, e.g. for Mos_BTS bluetooth streaming module)
  • Bluetooth extended digital audio port (BT+)
    (flexible 8 kHz - 384 kHz synchronous digital input for audio sources with 2 - 16 channels, direct DSP access without jitter, e.g. for MOS BTS-LD4C BT streaming module or extended analog inputs)

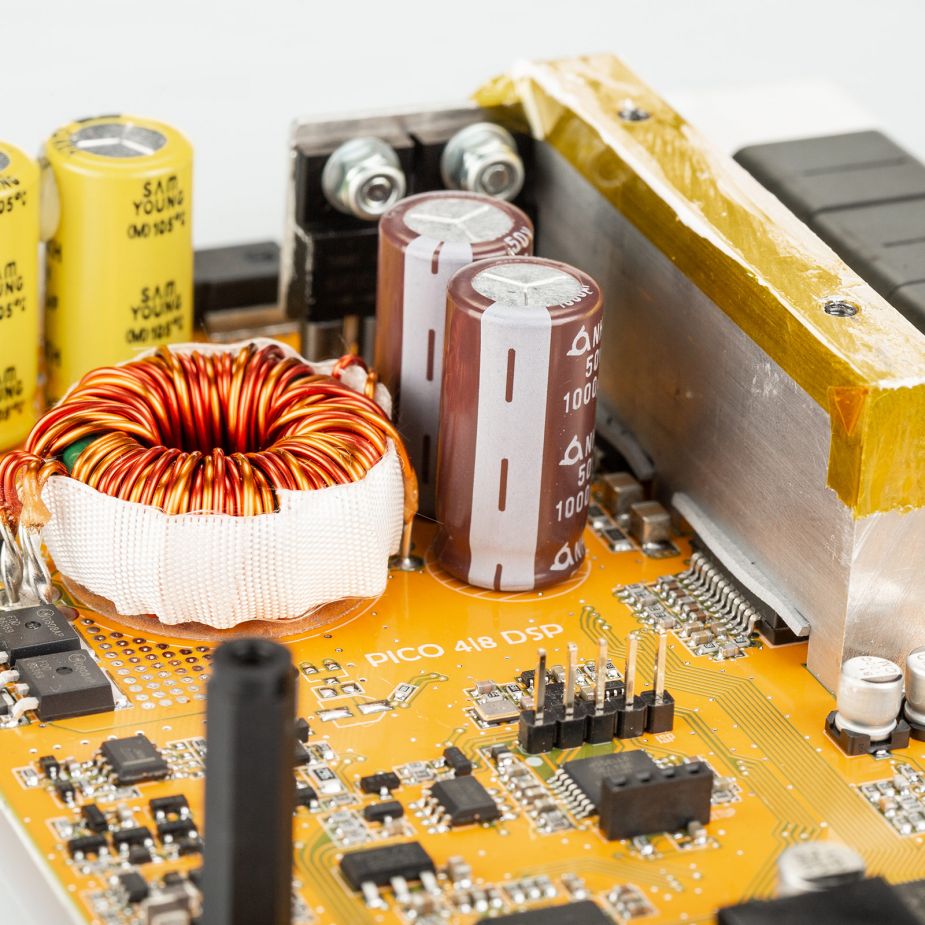

DSP:

  • 912 MHz, 32-bit audio port, 64-bit core
  • Double Precision 56 bit filter calculation
  • 6144 SIMD instructions per sample at 48 kHz
    ASRCs from 1:8 up to 7.75:1 ratio and 139 dB DNR

CONTROL:

  • 1 x remote connector (analog, for RTC.2 Poti remote control)
  • 1 x bluetooth control port (connection MOS-BT3.0 (app control), RC-Can (CAN-Bus control), MOS_USB2.0 (Programming dongle)
  • 1 x remote out, 1 x remote in, auto remote for high level connection
  • Connections with MOLEX® plug contacts
  • Very small size with low heat generation, best suited for installation behind panels

SOFTWARE:

  • 3 x 9 band parametric input EQ (de-equalizing)
  • 6 x input delay 0 - 3 ms / 0.01 ms (de-delay)
  • 10 x input level control digital (signal conditioning)
  • Flexible mixer for signal routing
    (Side separated, can sum and subtract, 10 inputs to 4 x 2 output groups)
  • 6 x 30 band or 4 x 30 band + 2 x 15 band group EQ
    (parametric, relative phase remains stable)
  • 8 x 10 band output filters
  • Highpass / lowpass / highshelf / lowshelf / notch / allpass 1st + 2nd order / speaker-EQ)
  • 8 x speaker-delay 0 - 12ms, 0,02ms
  • 8 x speaker phase switch

Technical Data Mosconi Pico 4|8 DSP

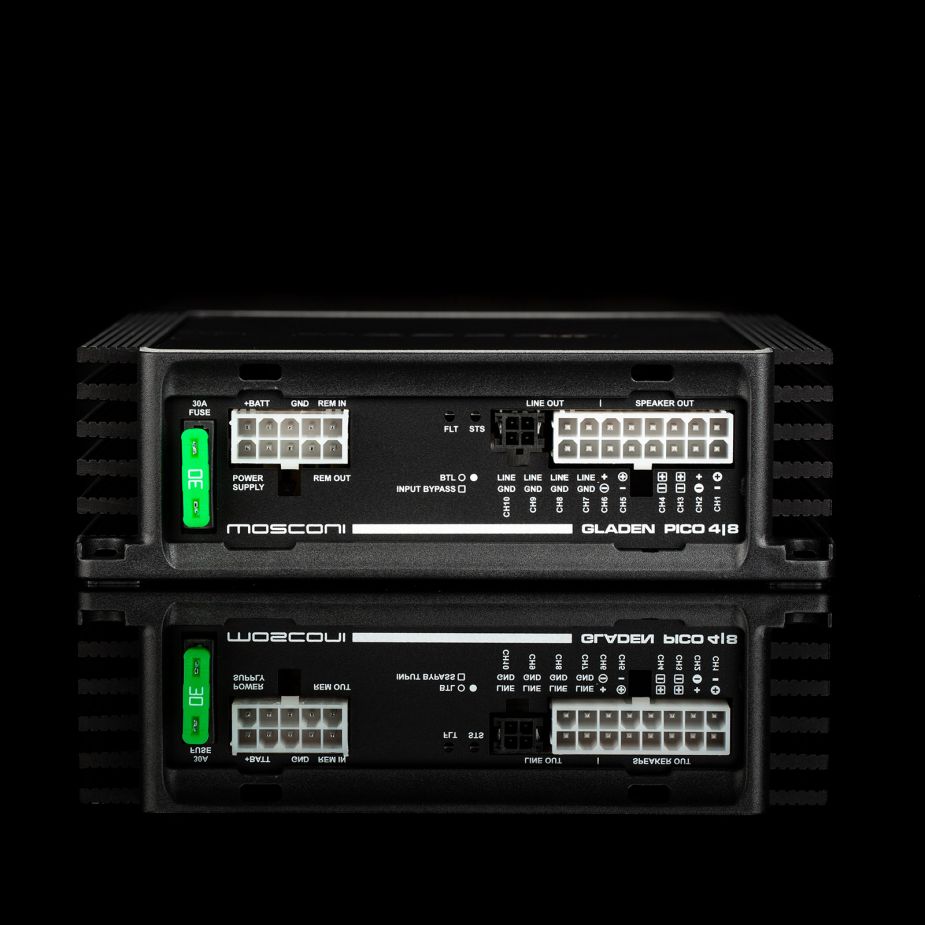

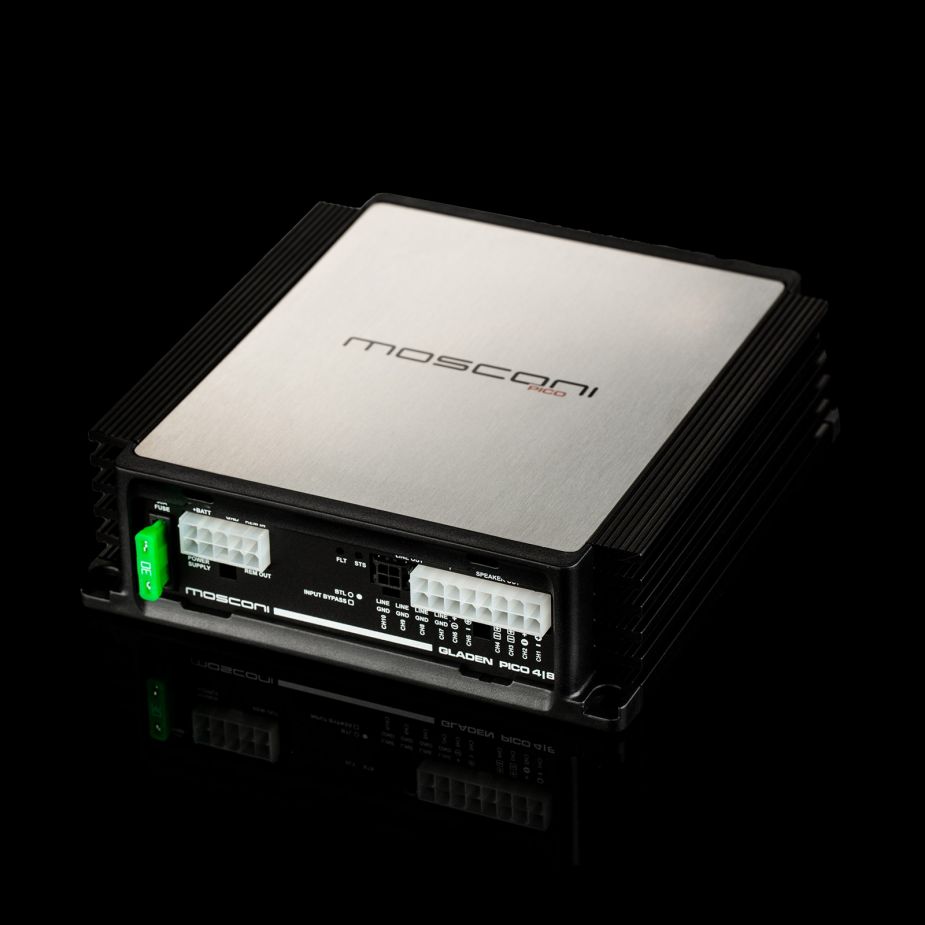

Output power/output side:

  • Output power RMS @ 4Ω:

    4 x 90 Watts

  • Output power RMS @ 2Ω:

    4 x 115 Watts

  • Output power RMS @ 4Ω:

    2 x 85 Watts + 1 x 230 Watts (bridged)

  • Output power RMS @ 4Ω:

    2 x 230 Watts (bridged)

  • Line Out:

    4 x 2 Vrms Line Out

Specifications:

  • Input voltage:

    0.3 - 15 V

  • Overall efficiency:

    > 80 %

  • Auto-On (only High Level):

    Off - BTL

  • Dimensions:

    150 x 133 x 46 mm

  • Weight:

    1100 Gramm
