8 channel high quality DSP amplifier

Mosconi One 90.8 DSP

8 channel amplifier
Integrated 8 channel DSP
Class AB technology
Up to 8 x 120 Watts @ 2 Ohm

Overview Mosconi One 90.8 DSP

The MOSCONI ONE 90.8 DSP is a universal 8 channel high quality amplifier in Class AB technology and an integrated digital sound processor. It is the ideal amplifier for speaker systems and/ or efficient subwoofers. The digital 8 channel sound processor allows you to adjust your car hifi system perfectly via PC software. In addition to an extensive active crossover, equalizer and a delay correction, various special filters are available. For system expansion, the ONE 90.8 DSP has a processed preamplifier output. Here you can easily connect the "Line IN" of another mono or stereo amplifier.

Automatic switch-on (only high level, SE or BTL mode)
Switchable mode 6-channel / 8-channel

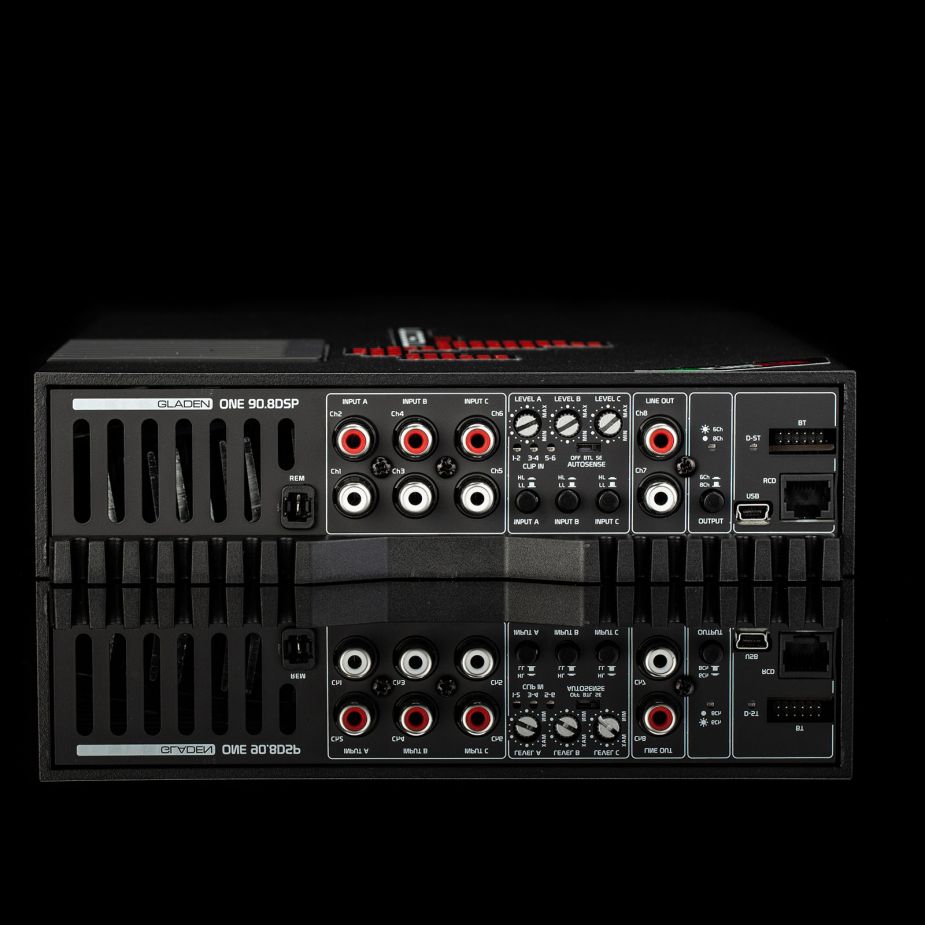

AUX inputs
Auto fading between inputs
Signal mix capability
USB cable for PC connection
BT radio module for PC connection (optional)
GUI (Windows XP, VISTA 32/64 bit and 7 32/64 bit)
Presets: 4
30 bands parametric equalizer
Implemented filters type all standard filters available
HP frequency range for each channel Hz 10 ÷ 20000
LP frequency range for each channel Hz 10 ÷ 20000
Slope of HP and LP filters for each cell dB/Oct 6 to 24 (up to 48 when cascaded)
Bandpass allowed yes
Variable "Q" 0.25 ÷ 40
Time delay ms 0 ÷ 15 (0.02 steps)
Phase inversion for each channel 0 / 180
Gain level for each channel dB -115.5 ÷ 6
Remote volume control (optional)

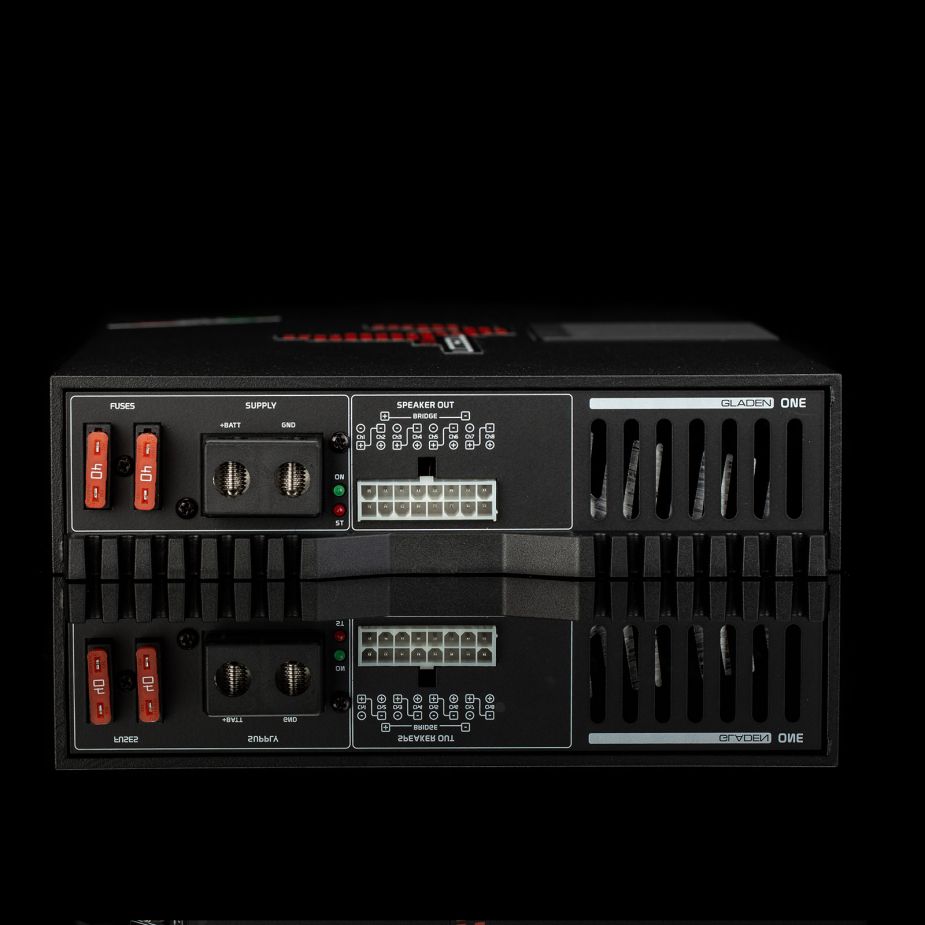

MOLEX connection of loudspeaker outputs

Technical Data Mosconi One 90.8 DSP

Output Power:

Output power @ 4Ω:

8 x 90 Watts
Output power @ 4Ω:

4 x 85 Watts + 2 x 250 Watts BTL
Output power @ 2Ω:

8 x 120 Watts
Bridged Output power @ 4Ω:

4 x 240 Watts

Specifications:

Input sensitivity:

0.8 V - 17 V (LL / HL)
Weight:

2,6 kg
Dimensions:

300 x 200 x 50 mm

Download

Datasheet Mosconi One 90.8 DSP (PDF)

Manual Mosconi One 90.8 DSP (PDF)
