4 channel high quality DSP amplifier
Mosconi One 130.4 DSP
Mosconi One 130.4 DSP M
- 4 channel amplifier
- Integrated 6 channel DSP
- Class AB technology
- up to 4 x 175 Watts @ 2 Ohm
- 12 V and 24 V versions
- Also available as Molex version

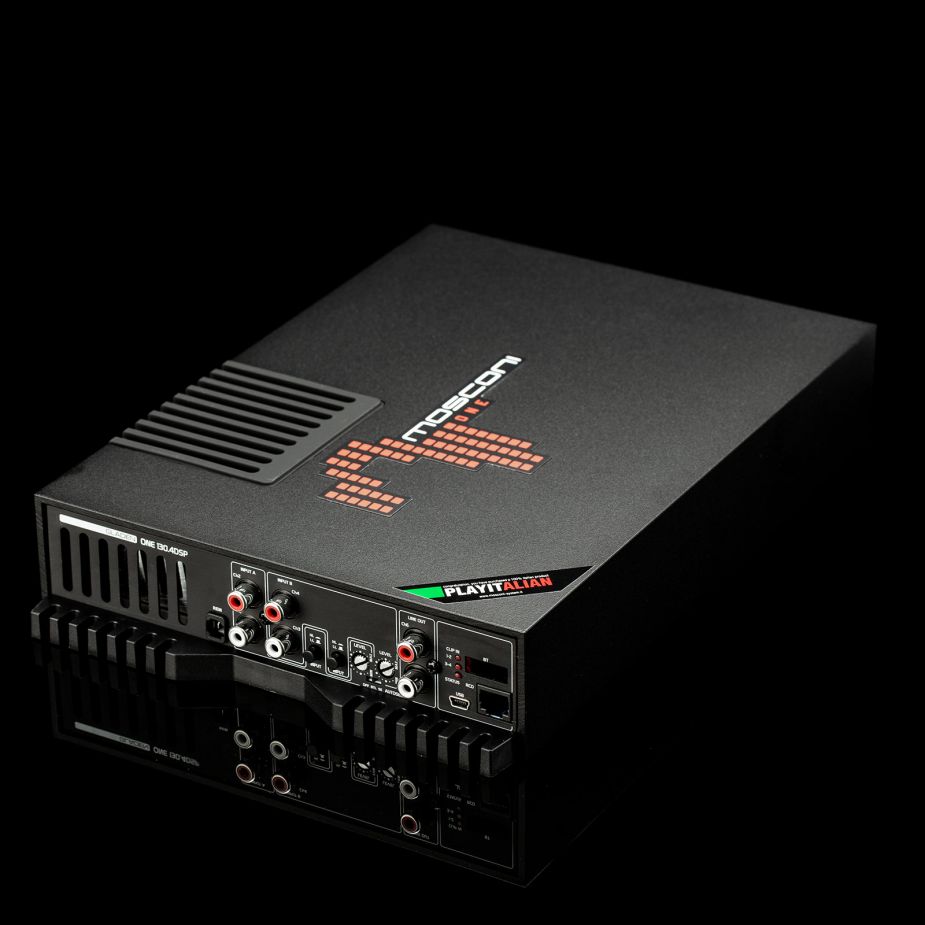

Overview Mosconi One 130.4 DSP
The Mosconi ONE 130.4 is a universal 4 channel high quality power amplifier in Class AB technology and an integrated digital sound processor. It is the ideal power amplifier for speaker systems and/ or medium-sized subwoofers. The digital 6 channel sound processor allows you to adjust your car hifi system perfectly via PC software. In addition to an extensive active crossover, equalizer and a delay correction, various special filters are available. For system expansion, the Mosconi One 130.4 DSP has a processed preamplifier output. Here you can easily connect the "Line IN" of another mono or stereo amplifier.
The One 130.4 DSP is available as a MOLEX version (One 130.4 DSP-M) or with a conventional screw terminal.
- Automatic power-on (high level, SE or BTL mode only)
- AUX inputs
- Auto fading between inputs
- Signal mix capability
- USB cable for PC connection
- BT radio module for PC connection (optional)
- GUI (Windows XP and higher, 32 and 64 bit)
- Presets: 4
- 30 bands parametric equalizer
- Implemented filter type all standard filters available
- HP frequency range for each channel Hz 10 ÷ 20000
- LP frequency range for each channel Hz 10 ÷ 20000
- Slope of HP and LP filters for each cell dB/Oct 6 to 24 (up to 48 when cascaded)
- Bandpass allowed yes
- Variable "Q" 0.25 ÷ 40
- Time delay ms 0 ÷ 15 (0.02 steps)
- Phase inversion for each channel 0 / 180
- Gain level for each channel dB - 115.5 ÷ 6
- Remote volume control (optional)
- 24 Volt version available for truck operation
Technical Data Mosconi ONE 130.4 DSP
Output Power:
-
Output power @ 4Ω:
4 x 130 Watts
-
Output power @ 2Ω:
4 x 175 Watts
-
Bridged Output power @ 4Ω:
2 x 350 Watts
Specifications:
-
Input sensitivity:
0.28 V ÷ 5.7 V (LL) / 0.8 V ÷ 16 V (HL)
-
Dimensions:
310 x 200 x 50 mm
-
Weight:
2,7 kg
