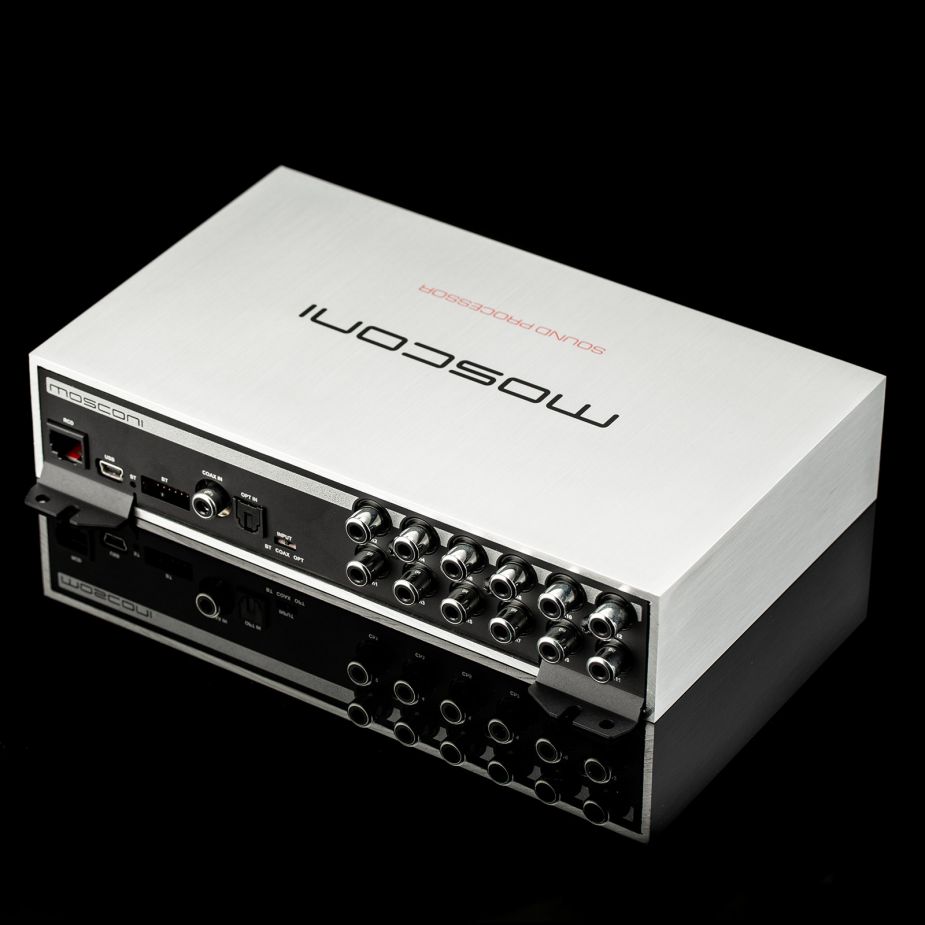

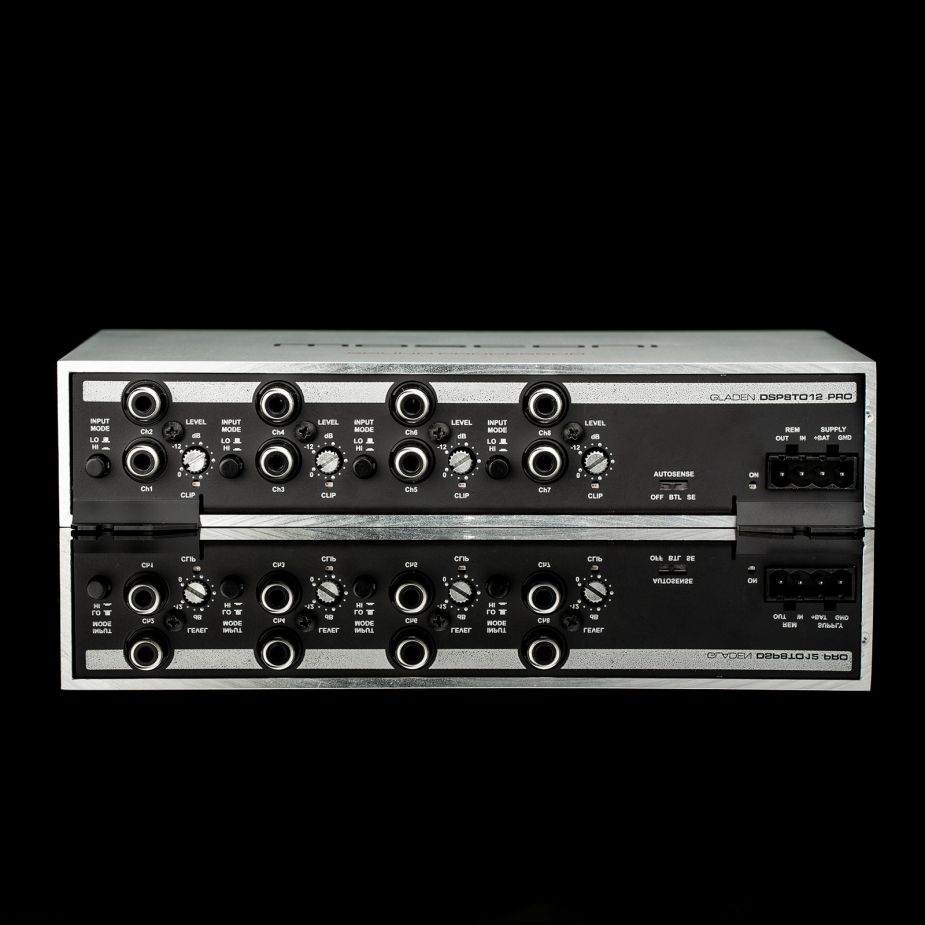

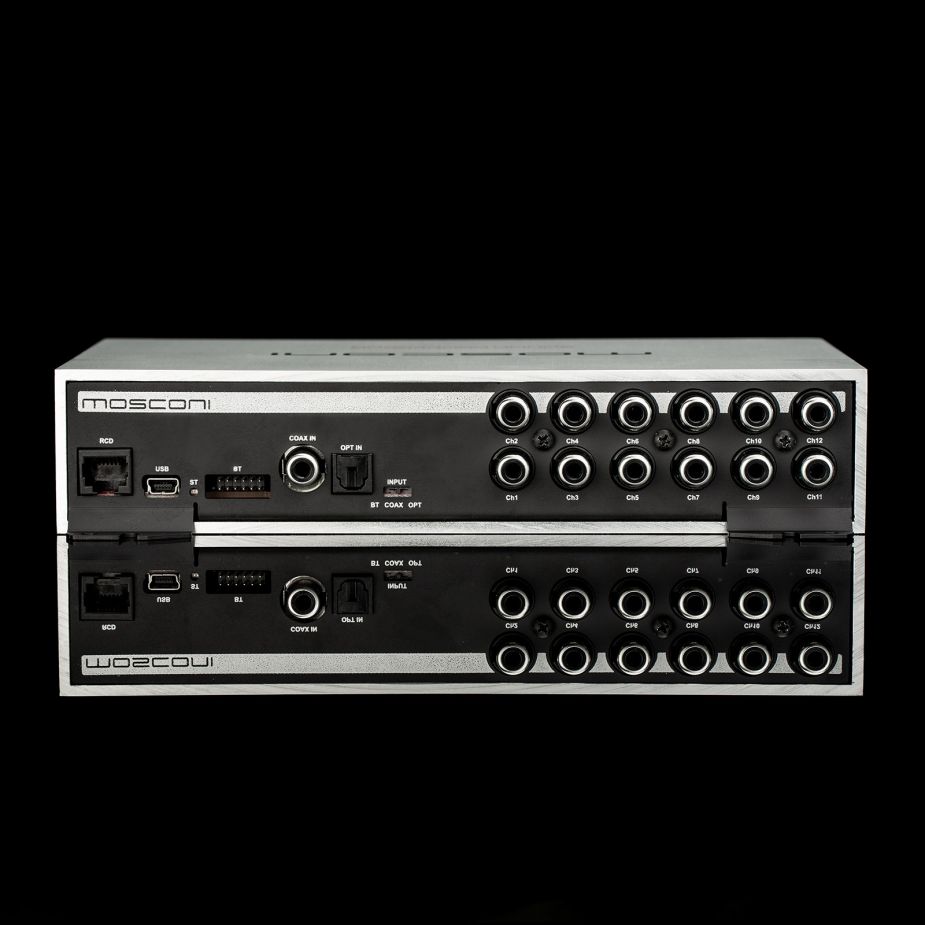

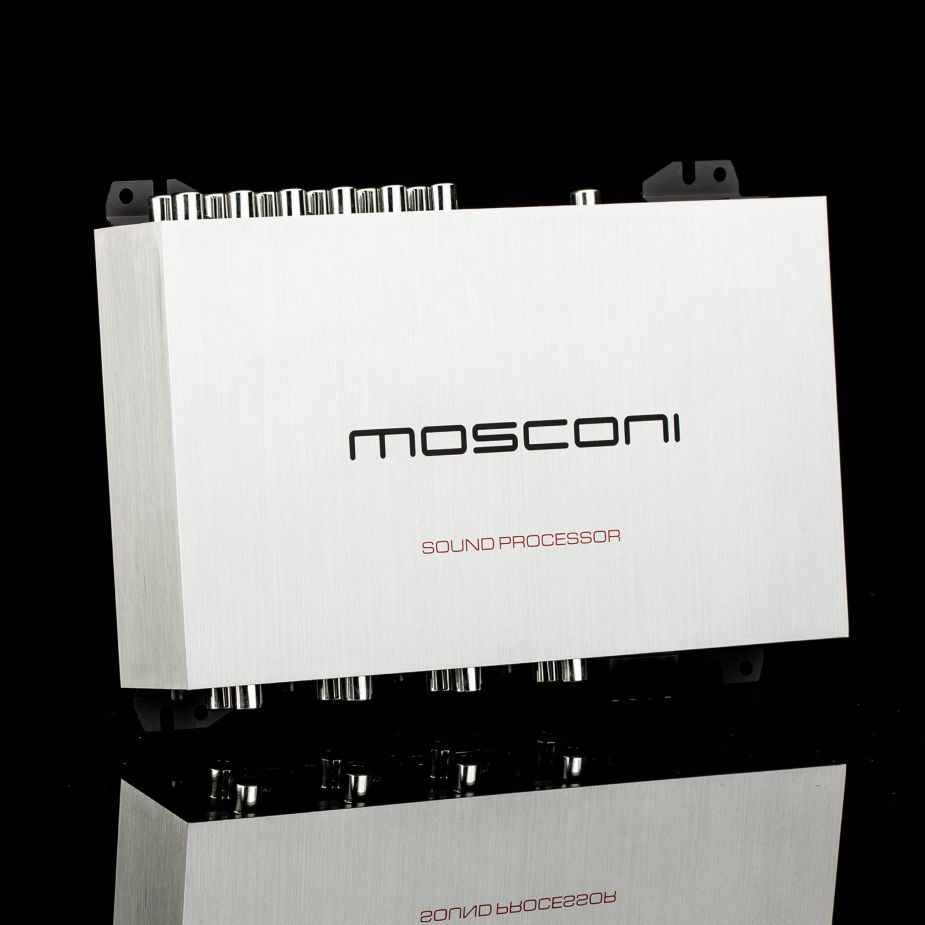

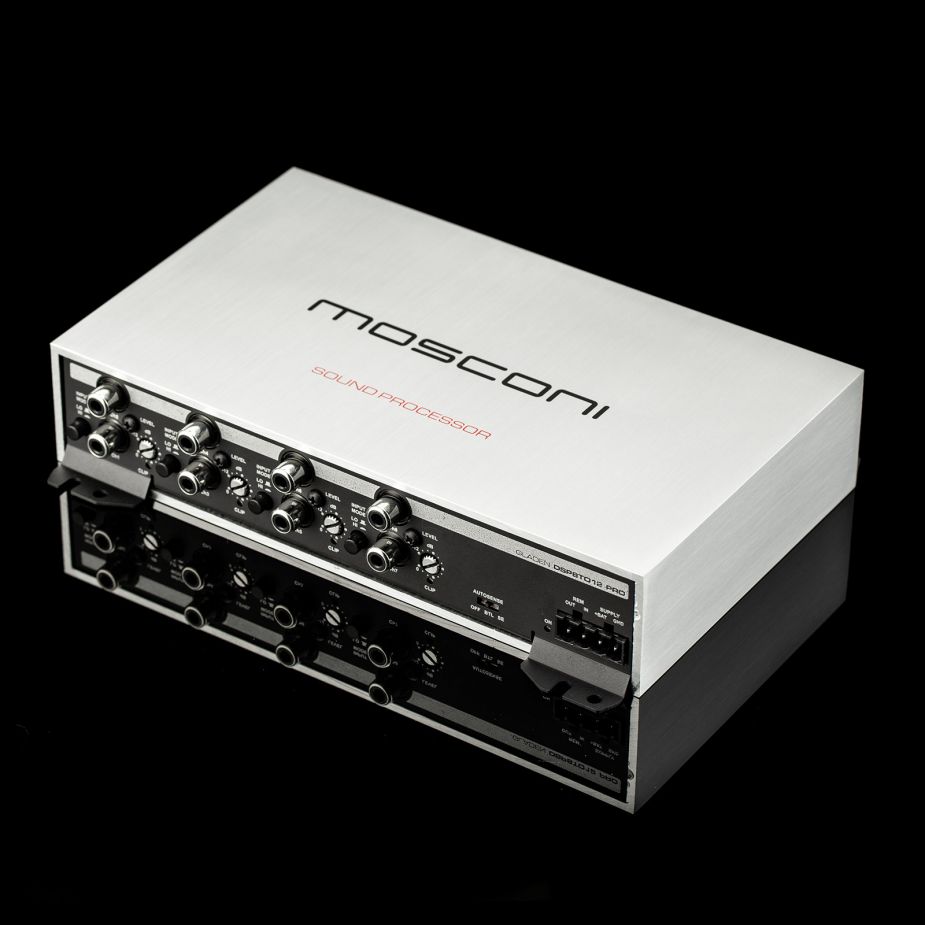

Mosconi DSP 8to12 Pro

Technical Data Mosconi DSP 8to12 Pro

Inputs:

• 8 x RCA (Cinch), switchable high / low level with autosense

• 4 of them freely selectable as prioritized auto-fade/aux

• 1 x digital input, optionally usable as:

  • 1 x S/PDIF digital optical
  • 1 x RCA digital COAX
  • 1 x BT slot
• ATOM Mixer menu with dynamic preset switching and "trigger" control

---

Outputs:

• 12 x RCA analog

• 1 x S/PDIF optical (freely assignable, volume controlled)

• 12 V remote-out / autosense bei high level-signal

---

Equilizer:

• Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40

• Fixed: Channels Front (1 - 6) Channels Rear (9 + 10)

• Assignable channels: 7 + 8 = Front, Rear 11 + 12 = Sub, Center, Free

---

Filters:

• 10 per channel freely configurable, (setting without sound interruption)

• Highpass, lowpass, shelf, notch, allpas, peak EQ

• Slope 6 - 120 dB/Oct, variable Q, time and level

---

Others:

• Time correction 0 - 12 ms (0.010 ms steps) (setting without sound interruption)

• Input delay (channels 1 - 6) for correction of run-time delayed plant systems

• Phase shift 0 - 180°

• Level adjustment outputs (0.5-dB steps)

• Mute function

• 4 x preset memory (switching without sound interruption)

• Dimensions: 200 x 125 x 40 mm (incl. mounting flange)

---
