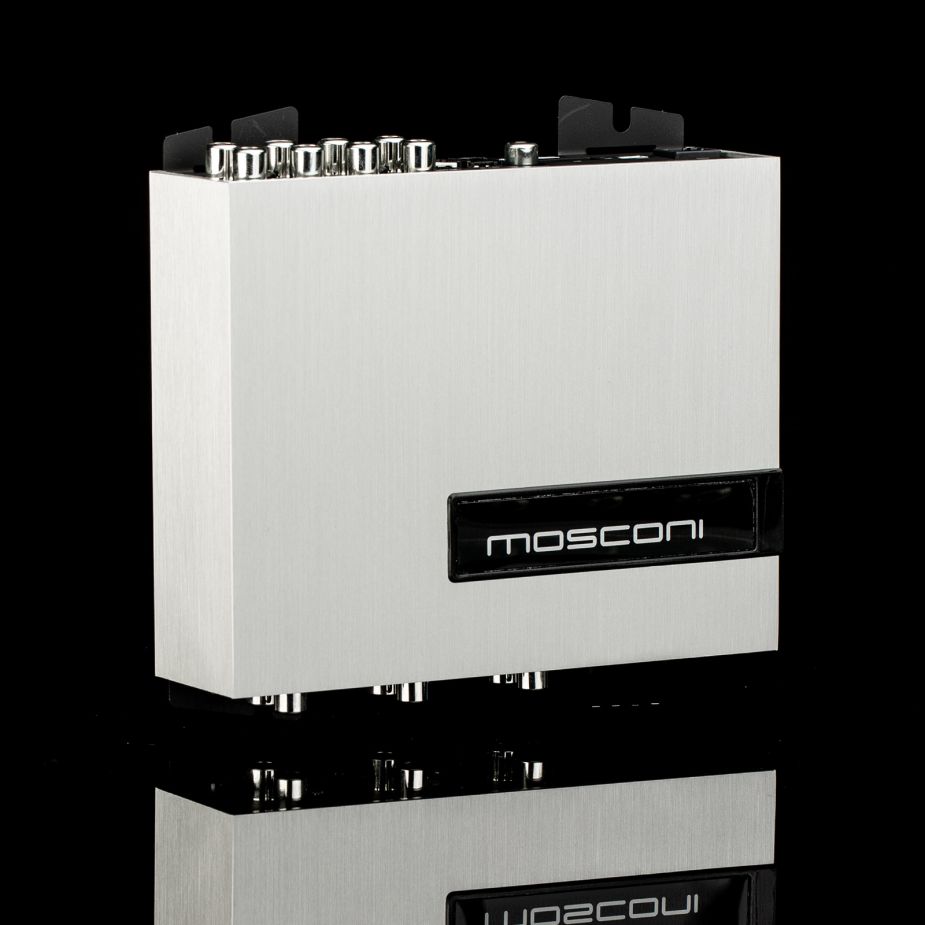

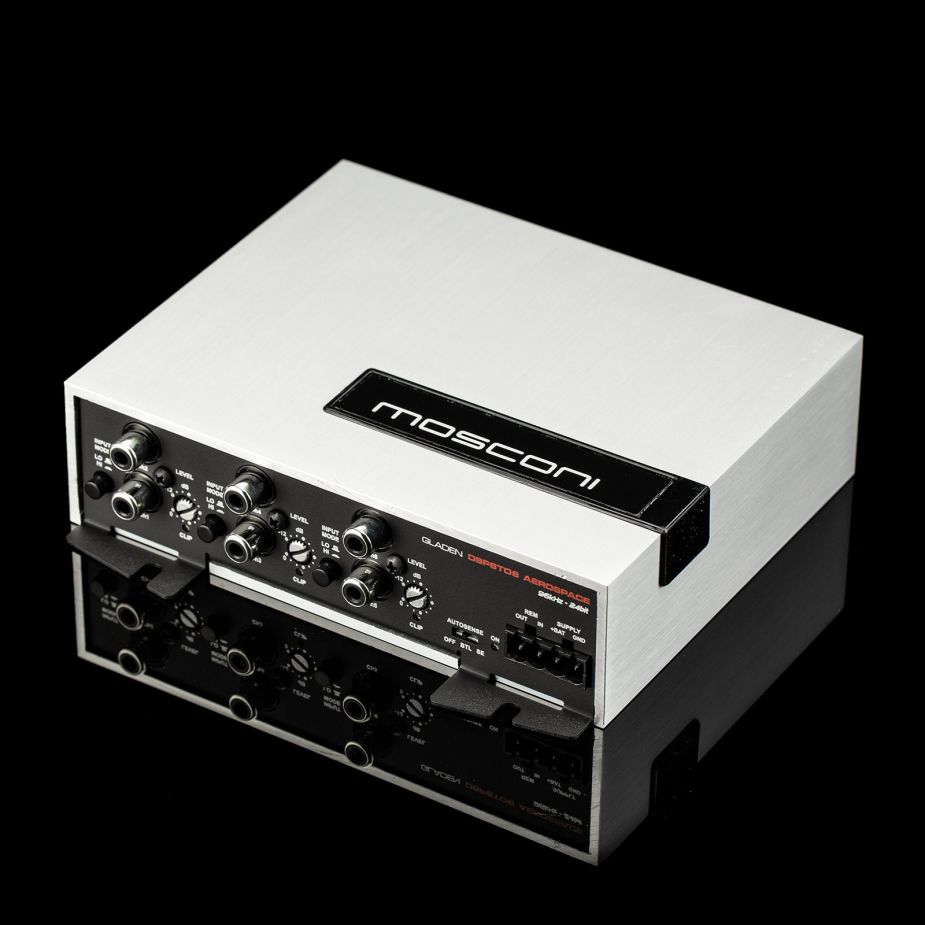

Mosconi DSP 6to8 Aerospace

Technical Data Mosconi DSP 6to8 Aerospace

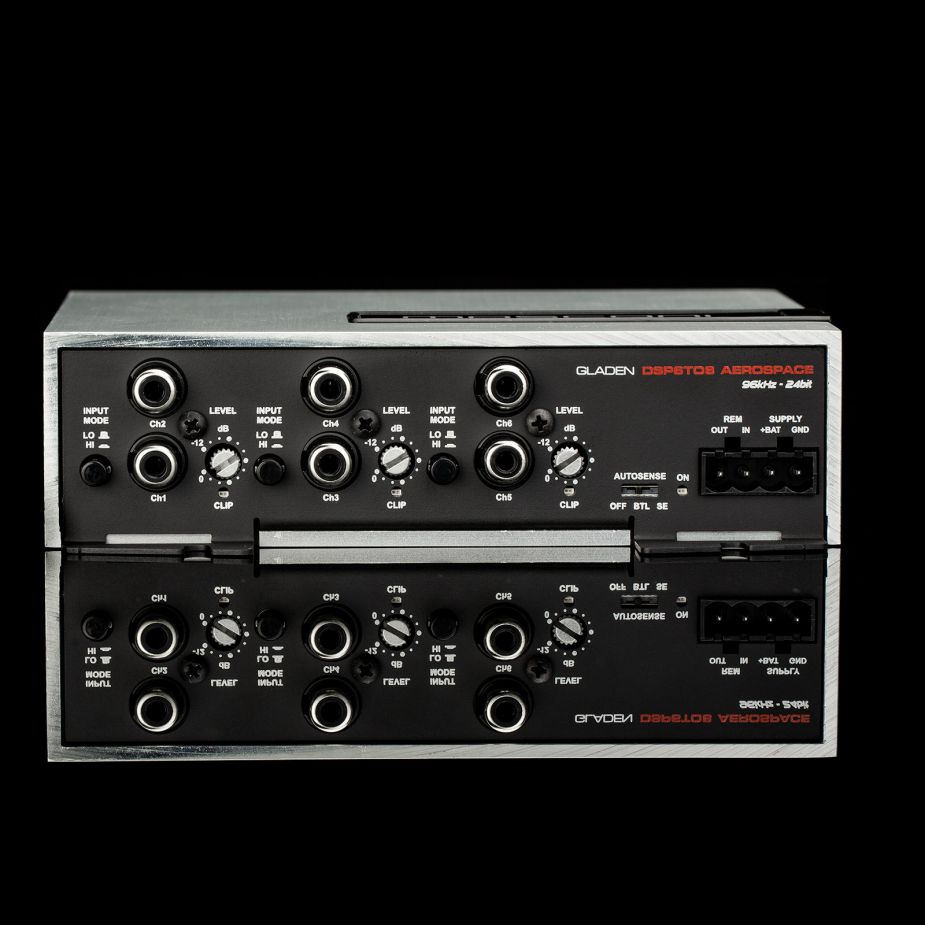

Inputs:

• 6 x RCA (Cinch), switchable high/ low level with autosense

• 1 x S/PDIF digital optical

• 1 x RCA digital COAX

• 4 of them freely selectable as prioritized auto-fade/aux

• ATOM Mixer menu with dynamic preset switching and "trigger" control

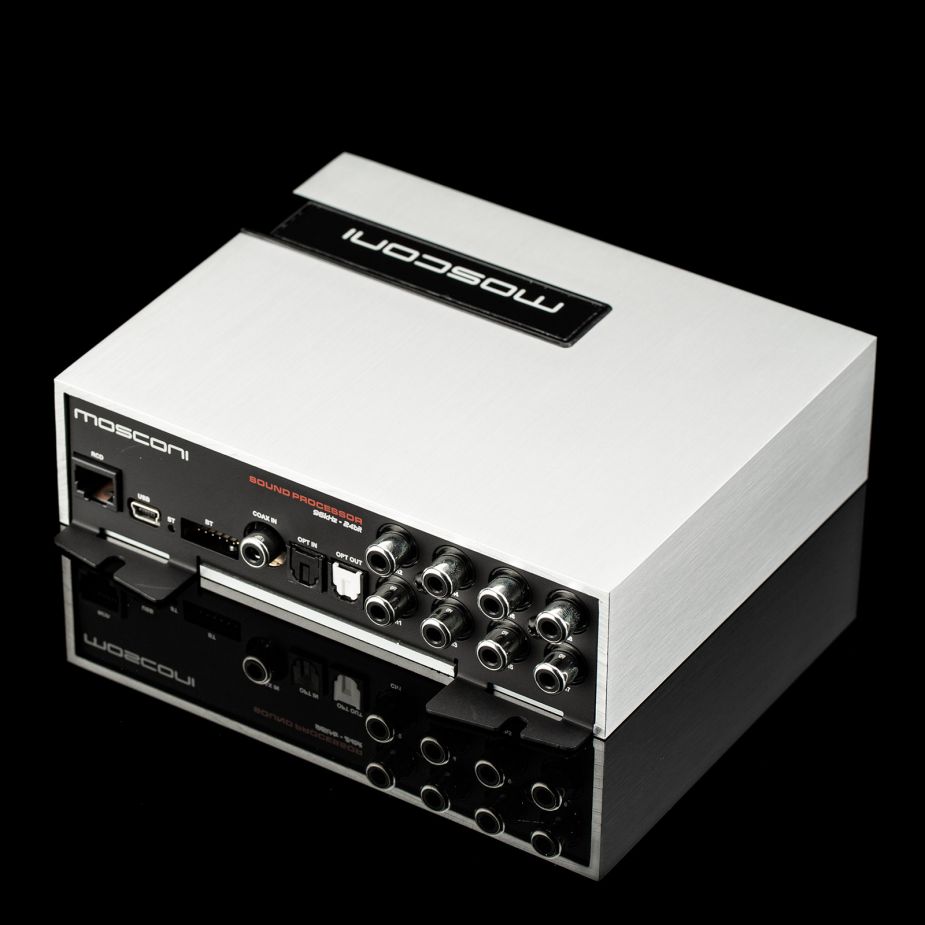

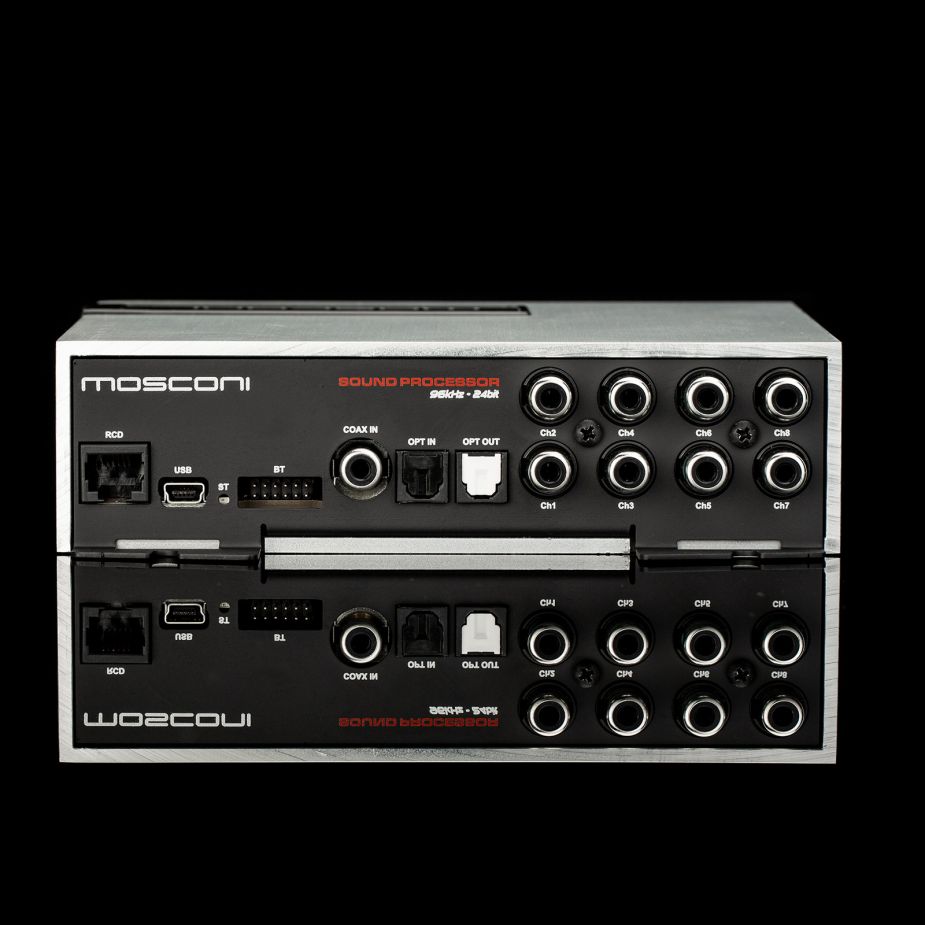

Outputs:

• 8 x RCA analog

• 1 x S/PDIF optical (freely assignable, volume controlled)

• 12 V remote-out

Equalizer:

• Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40

• Fixed: channels front (1 - 4)

• Assignable channels: 5 + 6 = front, rear 7 + 8 = sub, center, free

Filters:

• 10 per channel freely configurable

• Highpass, lowpass, shelf, notch, allpas, peak EQ

• Slope 6 - 120 dB/Oct, variable Q, time and level

Others:

• Time correction 0 - 12 ms (0.010 ms steps)

• Input delay (channels 1 - 6) for correction of run-time delayed plant systems

• Phase shift 0 - 180°

• Level adjustment outputs (0.5 - dB steps)

• Mute function

• 4 x preset memory (switching without sound interruption)

• Dimensions: 150 x 125 x 40 mm (incl. mounting flange)
