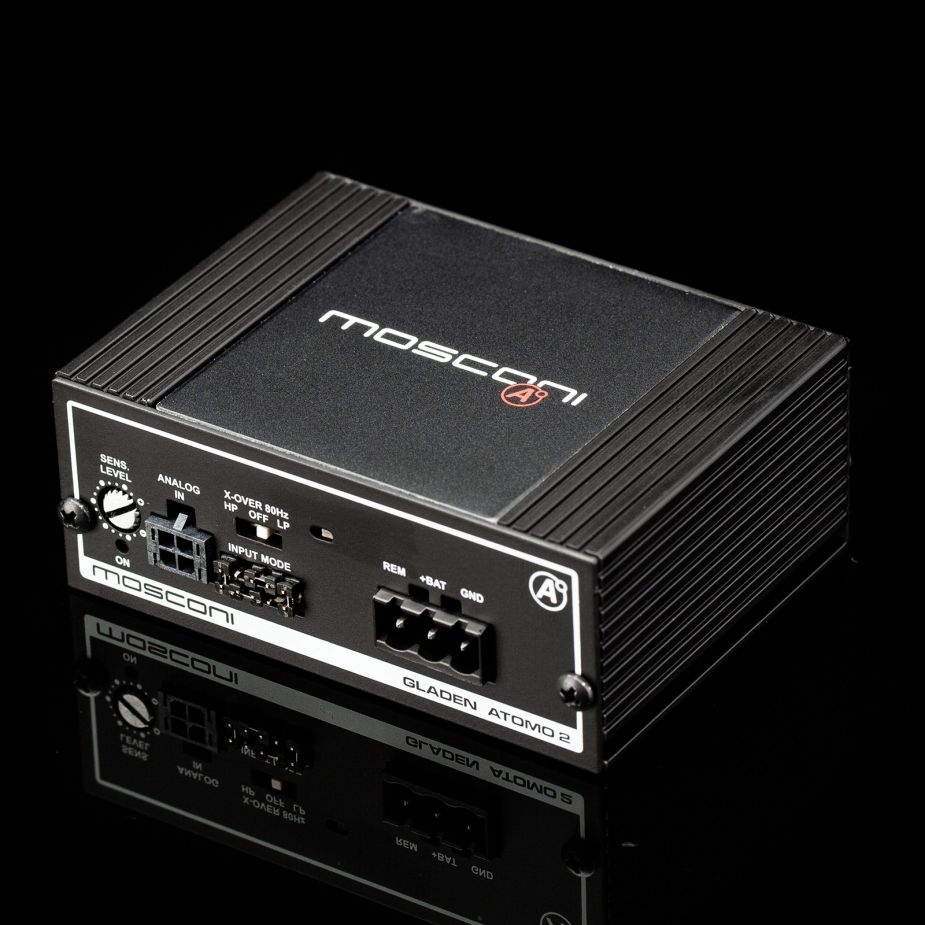

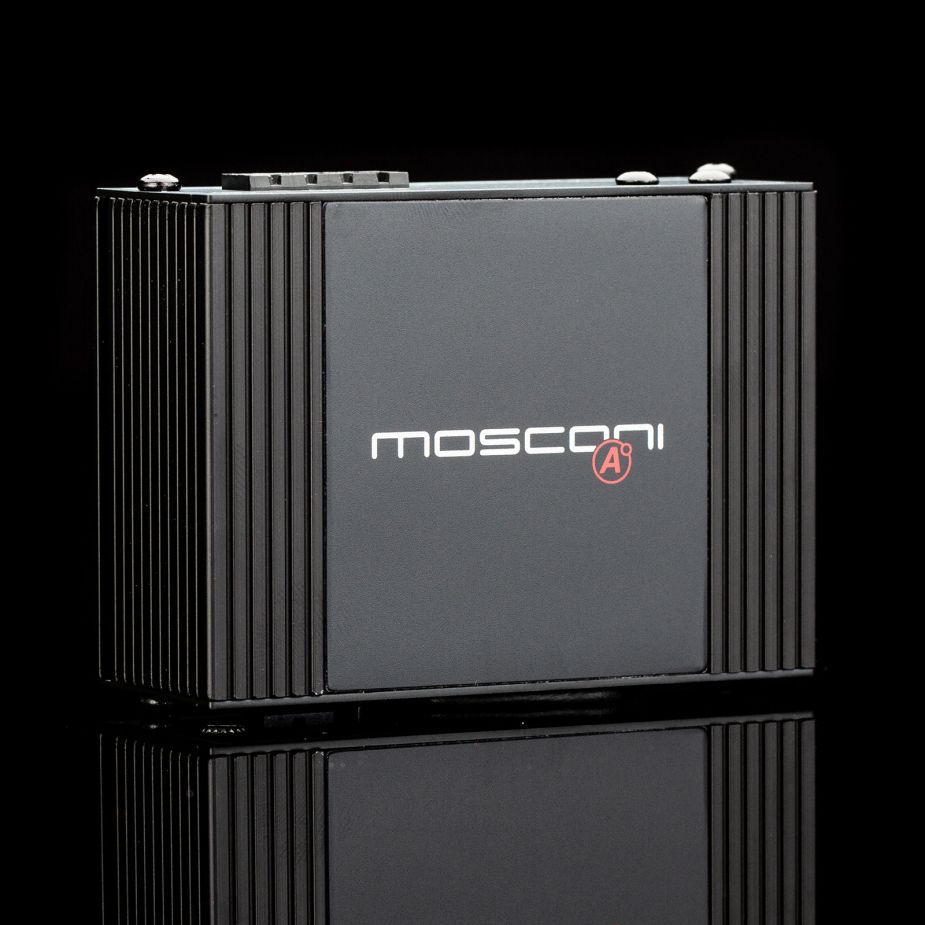

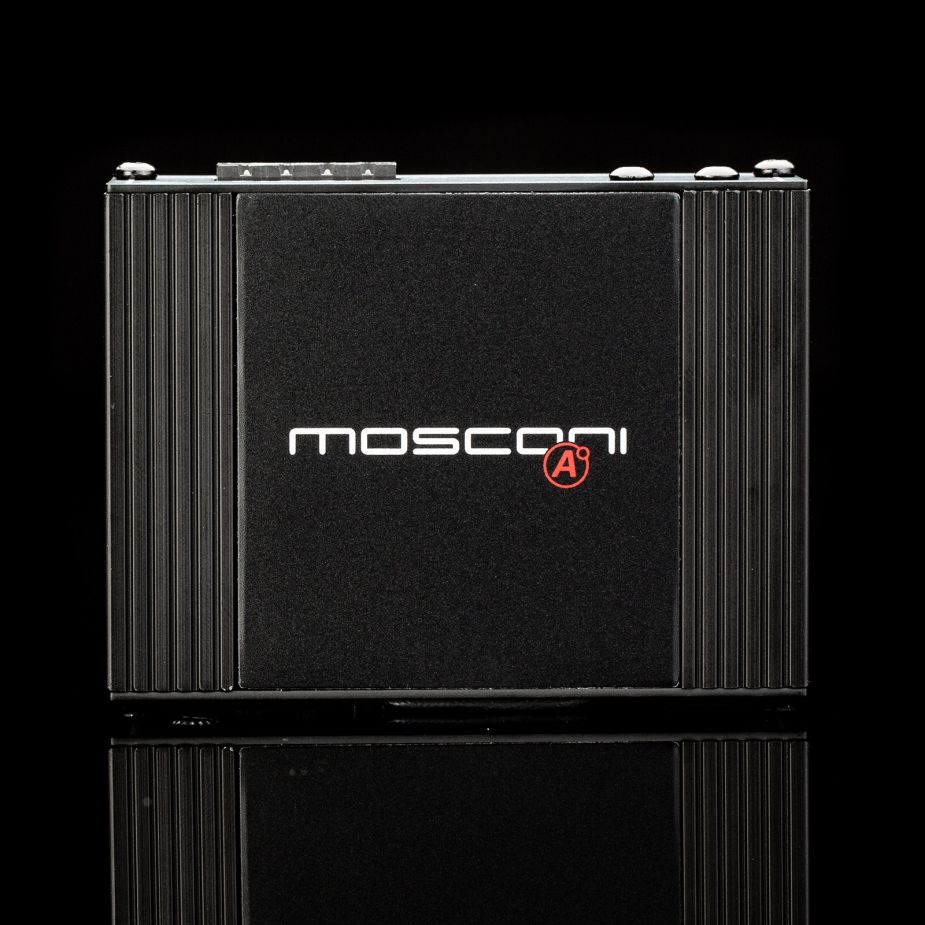

Mosconi Atomo 2

Technical Data Mosconi Atomo 2

POWER SUPPLY:

• Power supply voltage:

  10 - 16 V

• DC-DC converter typology:

  Unregulated – Push Pull
• External fuse:

  1 x 15 A

• Power-on/Power-off voltage threshold:

  9 V / 6 V

• Mute delay time:

  3 secs

• Autosense power-on (HL only):

  BTL source only
• Overall efficiency:

  > 75 %

• Standby current:

  < 0.1 mA (typical)

• Idle current:

  0.47 A @ 14.4 V

• Thermal cutoff threshold:

  93 °C (± 5 %)

---

OUTPUT POWER RMS @ 14.4 V (1 % THD)

• Output power RMS @ 4Ω:

  100 W x 2 or 220 W x 1

• Output power RMS @ 2Ω:

  110 W x 2

• T.H.D. @ 4Ohm:

  < 0.3 % (1 kHz / 90 Power rating ref)

• T.H.D. @ 2Ohm:

  < 0.5 % (1 kHz / 90 Power rating ref)

• Minimum load:

  2 Ohm with musical signal

---

SIGNAL INPUT

• Low level input sensitivity range:

  0.4 ÷ 5 Vrms

• High level input sensitivity range:

  1.6 ÷ 20 Vrms

• Bandwidth (-3dB ÷ 10W):

  5 Hz ÷ 40 kHz

• Low level Input impedance:

  > 15 kOhm

• High level input impedance:

  21 Ohm (dummy load with jumper)

• Ground reference (LL only):

  OPEN - 21Ohm
• S/N (AP filter 10Hz - 22KHz):

---

FEATURES

• Onboard filter configuration:

  OFF - HP - LP
• Onboard filter slope:

  12 dB/Oct

• Onboard filter frequency:

  80 Hz

• Autosense power-on (HL only):

  BTL source only
• Start&Stop compliance:

  YES

---

CONNECTIONS

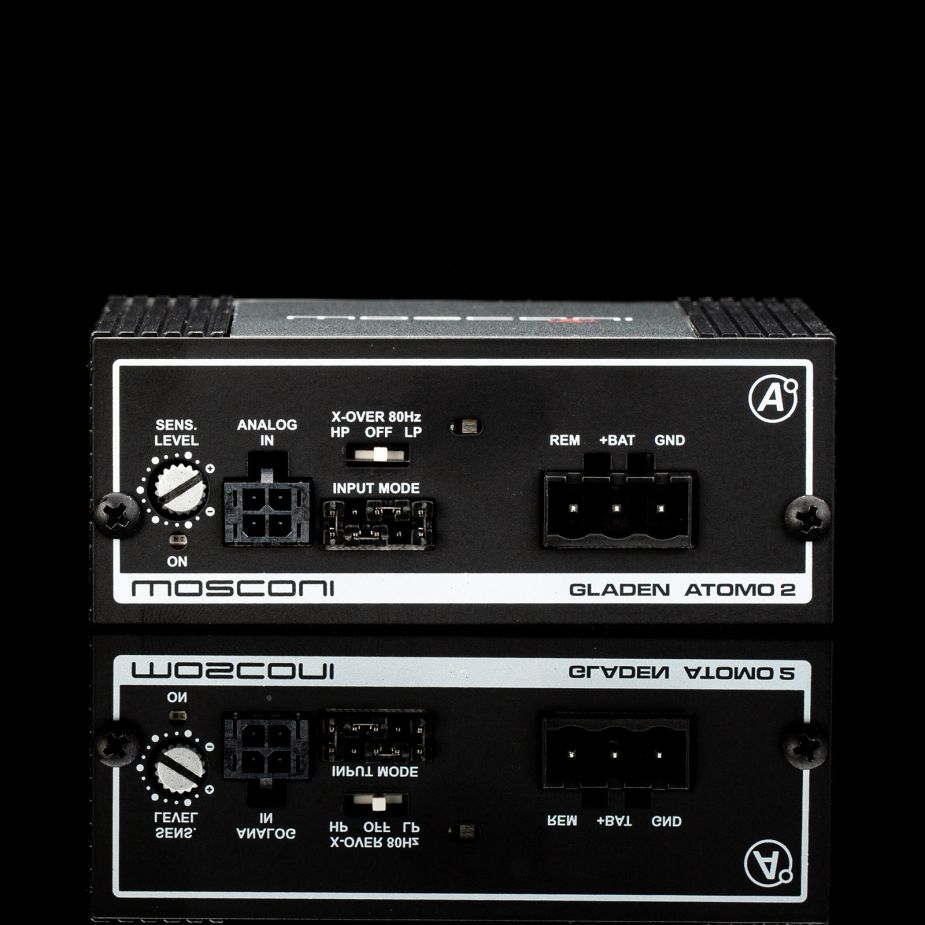

• Low/High level input :

  Micro-Fit

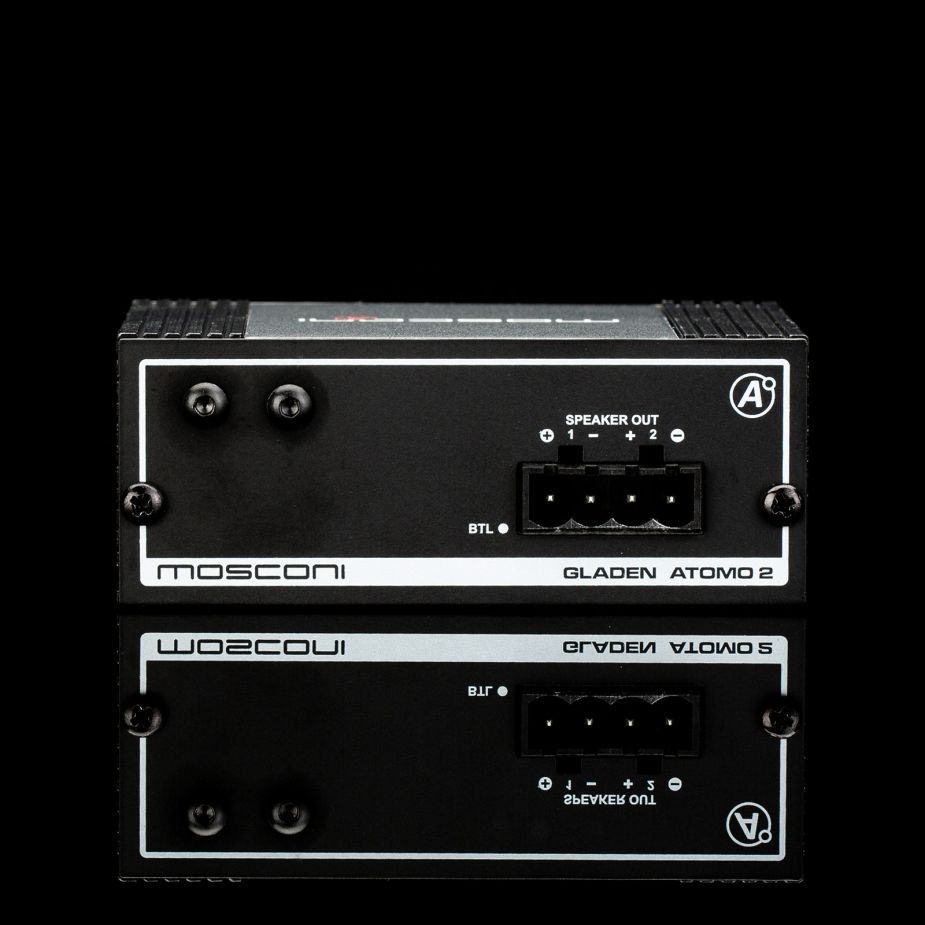

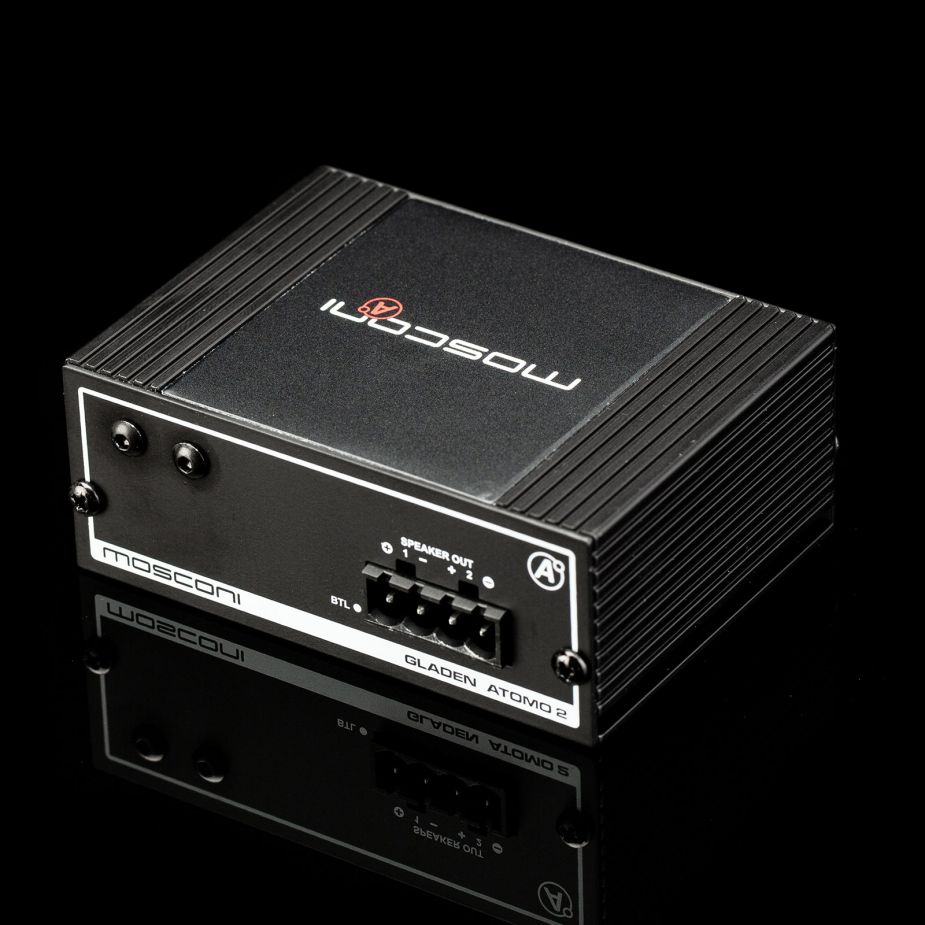

• Speaker out:

  Mini-Fit
• Power supply:

  Mini-Fit

---

APPEARANCE

• Dimensions:

  86 x 65 x 34 mm

• Weight:

  275 g

• Finishing:

  Black anodized

---
