High Performance subwoofer

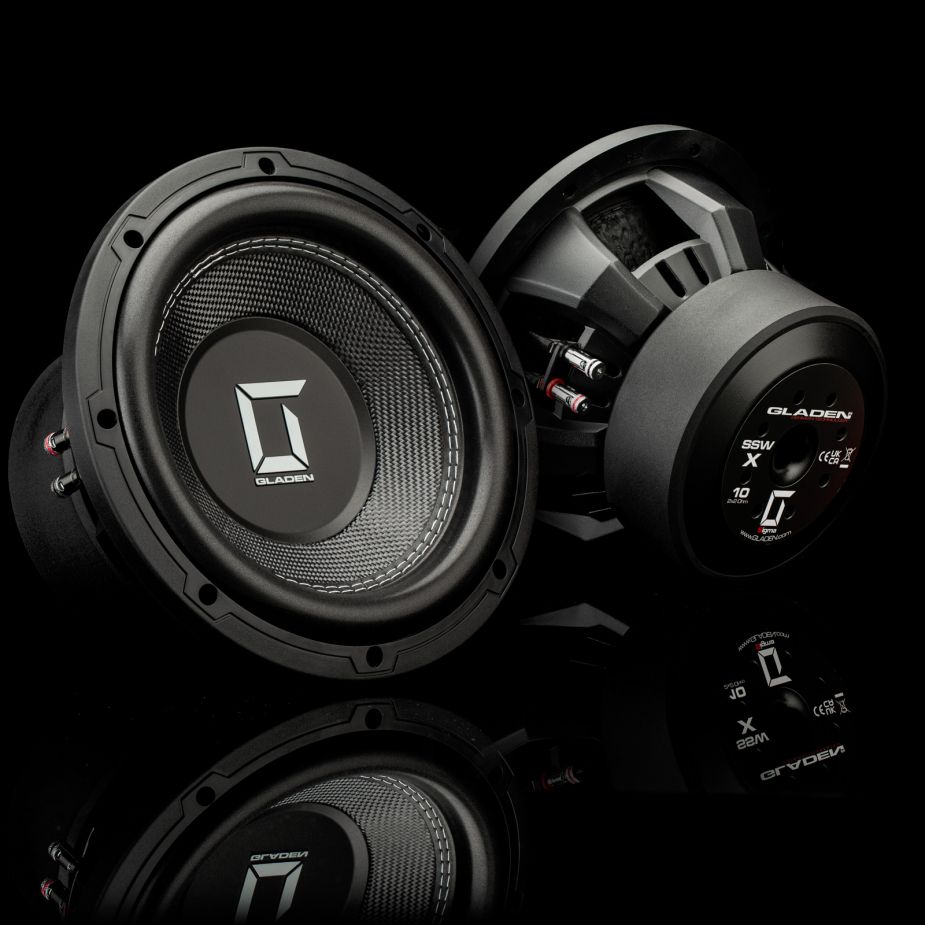

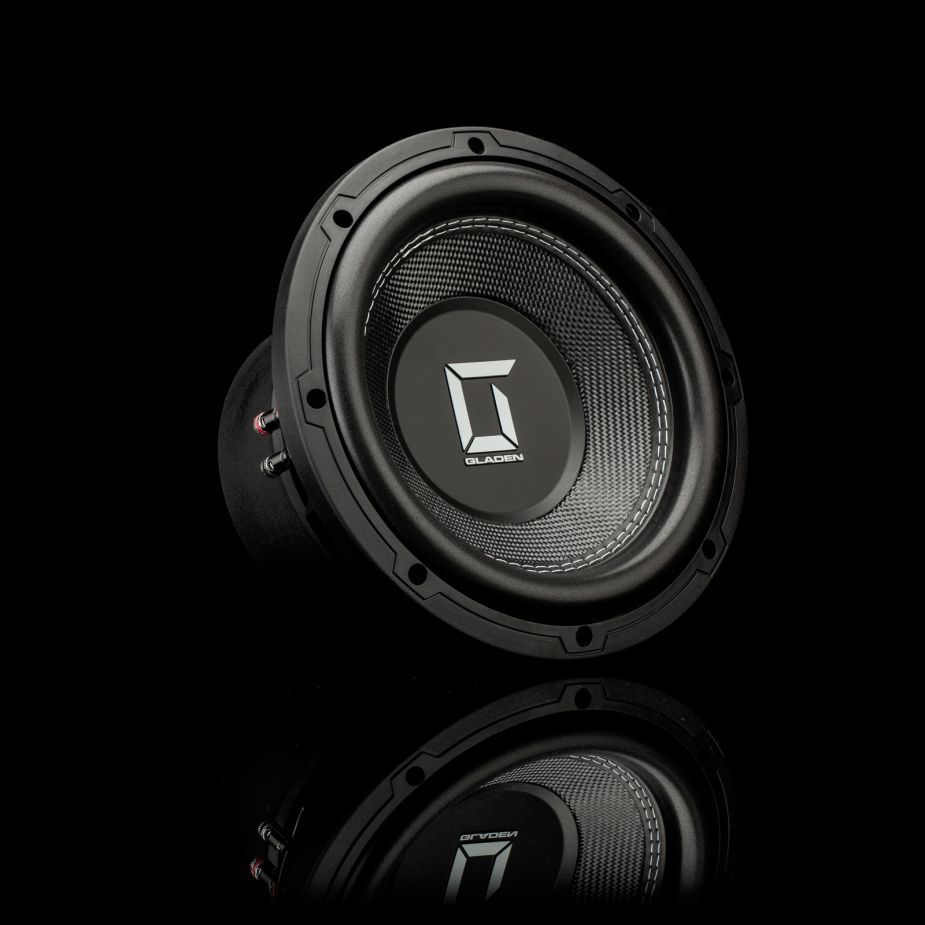

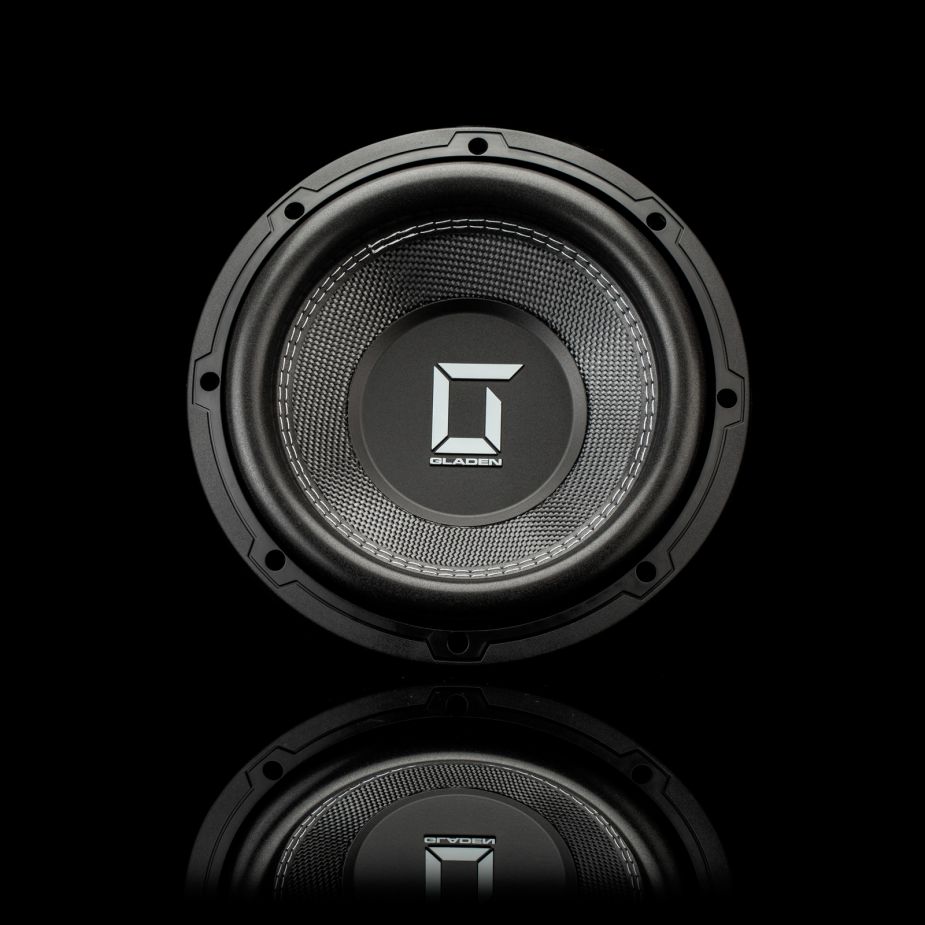

Gladen Sigma SSWX10
- 25 cm / 10” Subwoofer
- 1400 / 700 Watt
- 2x2 Ohm Impedance
- 2,5” Schwingspule
Overview Gladen SIgma SSWX10
The GLADEN SIGMA SSWX10 was designed for uncompromising bass performance. Its increased excursion, drive power, and significantly higher level stability make this 10-inch subwoofer ideal for performance-oriented car audio systems requiring both pressure and control. The SSWX10 delivers massive low bass with noticeable punch, even under high continuous load.
Its extremely powerful drive with a large voice coil ensures precise control of the cone, even at maximum excursion. In combination with the rigid, high-load cone, the bass remains controlled, clean, and low in distortion at all times. This is where the SSWX10 clearly sets itself apart from the SSW10, offering more reserves, assertiveness, and authority in the low frequency range.
Thanks to its dual 2-ohm design, the SIGMA SSWX10 can be flexibly adapted to powerful amplifiers. It is optimized for both closed and bass reflex enclosures, making it the perfect foundation for uncompromising bass setups with high power requirements.
- High-power 10" subwoofer for maximum low bass.
- Extremely powerful motor
- Rigid, resilient diaphragm
- Long-throw, high-performance voice coil (dual 2 ohms)
Technical Datas Gladen Sigma sswX10
Material:
-
Dustcap:
PP
-
Coilformer:
Aluminum
-
Spider:
7" PC Mix (poly-cotton blend)
-
Cone:
Glassfiber
-
Surround:
Foam
-
Basket:
Aluminum
Datas:
-
Recommended volume:
14-18 Liter
-
X-Max linear (+/-):
15 mm
-
DC resistance (Rdc):
1,8 Ω (dual)
-
Nominal impedance (ZN):
2,2 Ω
-
Resonance frequency (Fs):
31 Hz
-
Voice coil diameter:
60 mm
-
Voice coil height:
40 mm
-
Mechanical Q factor (Qms):
6,96
-
Electrical Q factor (Qes):
0,52
-
Total Q factor (Qts):
0,49
-
Bewegte Masse (Mms):
259 g
-
Membranfläche (sd):
367 cm2
-
Compliance (Cms):
0,06 mm/N
-
Force factor (BL):
21 Tm
-
Equivalent air volume (Vas):
13,1 Liter
-
Efficiency (η):
0,12 %
-
SPL 2,83V/1m:
86,5 dB
-
External diameter:
281 mm
-
Installation diameter:
223 mm
-
Installation depth:
152 mm
