Tweeter

Gladen PRO 25

  • 25 mm tweeter
  • 4 Ohm impedance

Overview Gladen Pro 25

DETAIL THAT BECOMES PART OF THE MUSIC.

The PRO 25 handles the fine high-frequency information in an active PRO system. Its tuning focuses on natural detail and clear spatial reproduction without adding artificial brilliance or pushing the treble forward.

Its compact dimensions also make it suitable for demanding vehicle installations where available mounting space is limited.

TECHNOLOGY & CONSTRUCTION

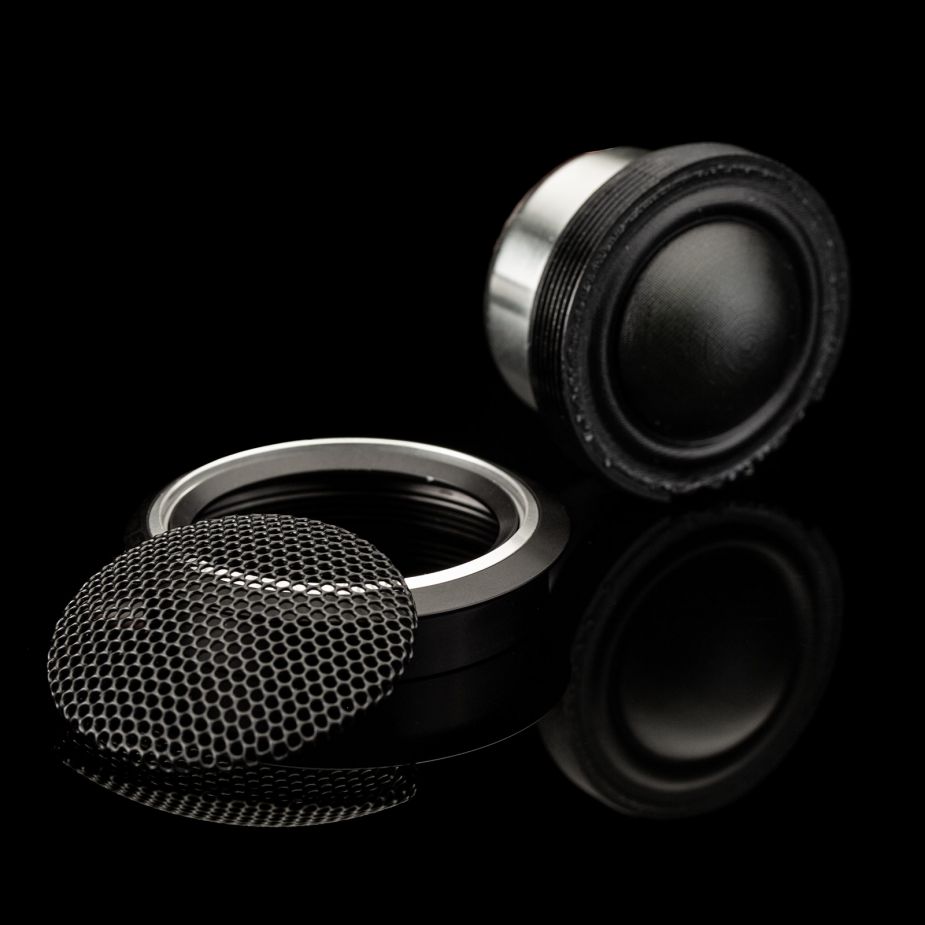

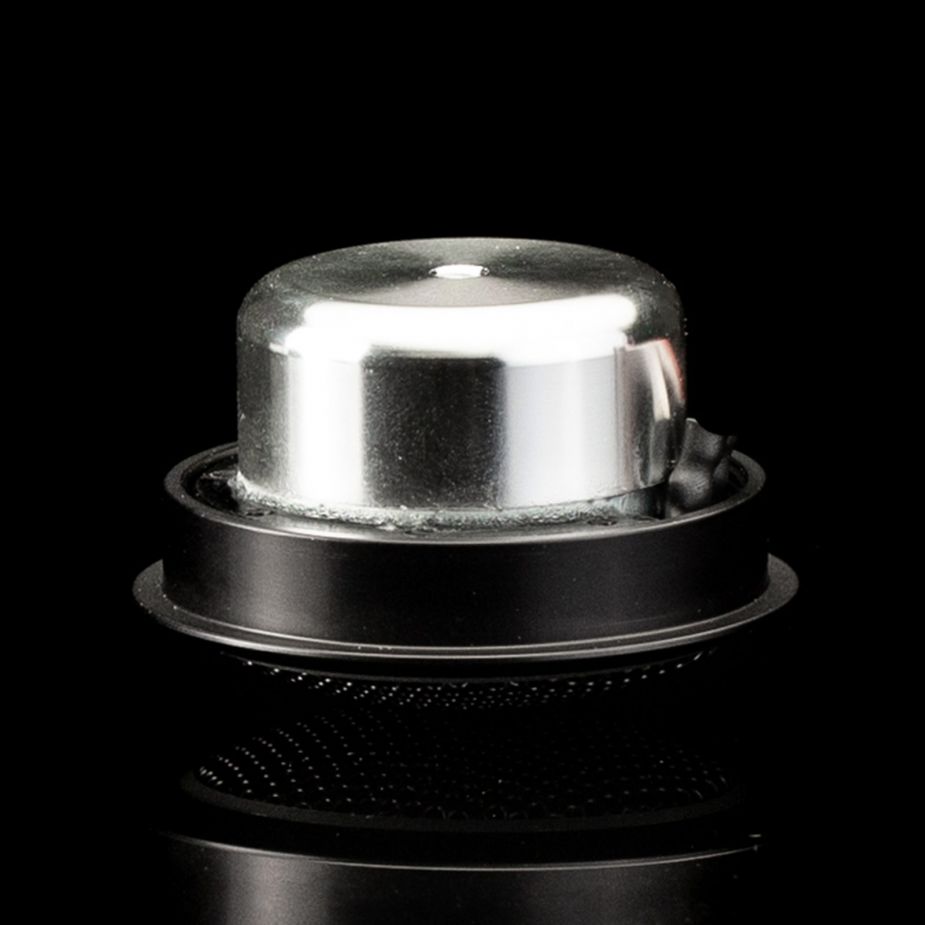

The 25 mm silk dome operates with a dedicated rear coupling chamber. This creates defined acoustic conditions behind the diaphragm and supports controlled operation throughout its intended frequency range.

The compact construction also makes integration into vehicle-specific mounting locations easier.

FEATURES

  • 25 mm silk dome
  • Dedicated rear coupling chamber
  • Hand-coated dome
  • Compact construction
  • 4 ohms
  • Made in Germany

System Application: Tweeter for active PRO systems


Technical Data GLADEN PRO 25

Specifications:

  • DC resistance (Rdc):

    3,4 Ω

  • Nominal impedance (ZN):

    4 Ω

  • Resonance frequency (fs):

    720 Hz

  • Voice coil diameter:

    25 mm

  • Dome:

    Fine cloth

  • Recommended high-pass frequency:

    > 3000 Hz 12 dB/Oct
    > 2300 Hz 18 dB/Oct
    > 1600 Hz 24 dB/Oct
