2 - Way System

Gladen Gamma 100-X

  • 10mm Loudspeakersystem
  • 120 | 80 Watt
  • 3 Ohm Impedance
  • carbon-Nomex-Membrane

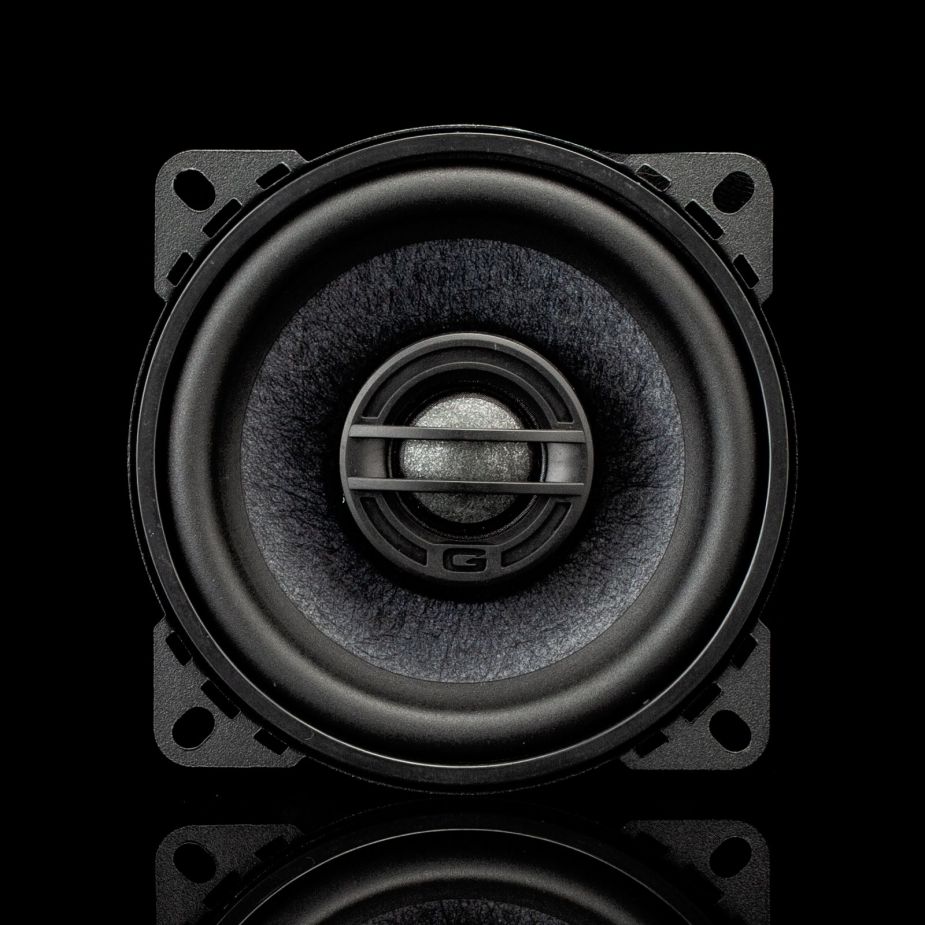

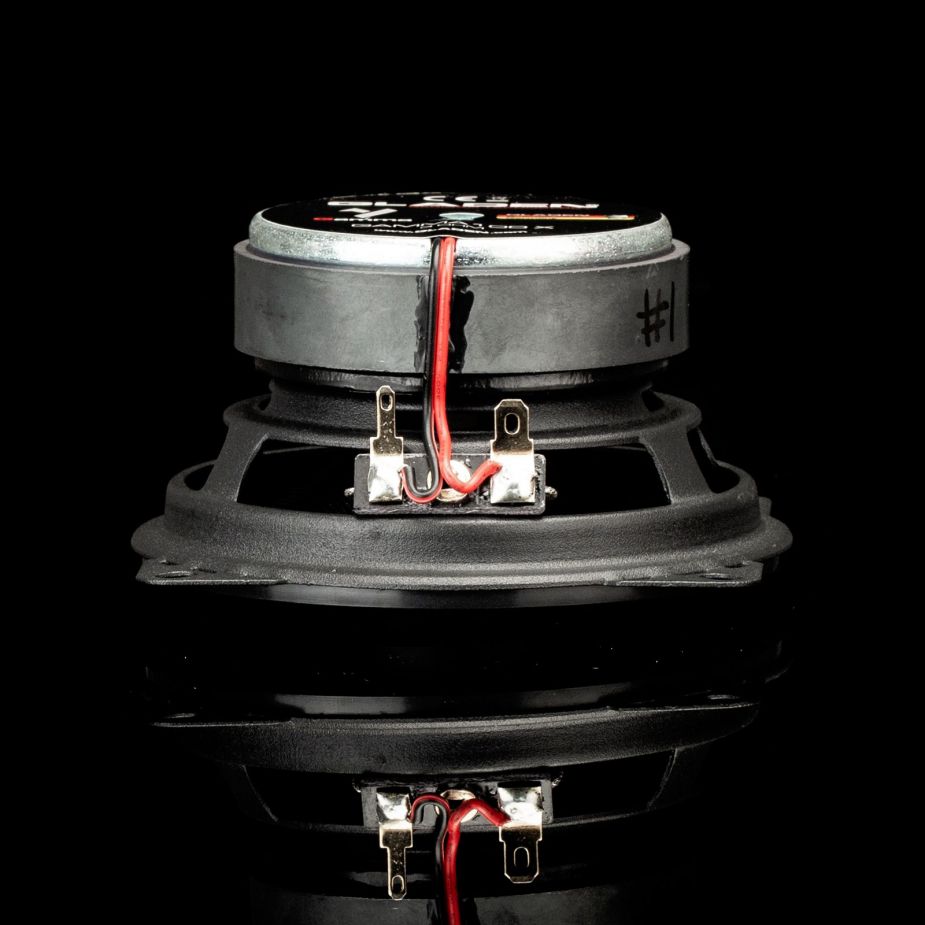

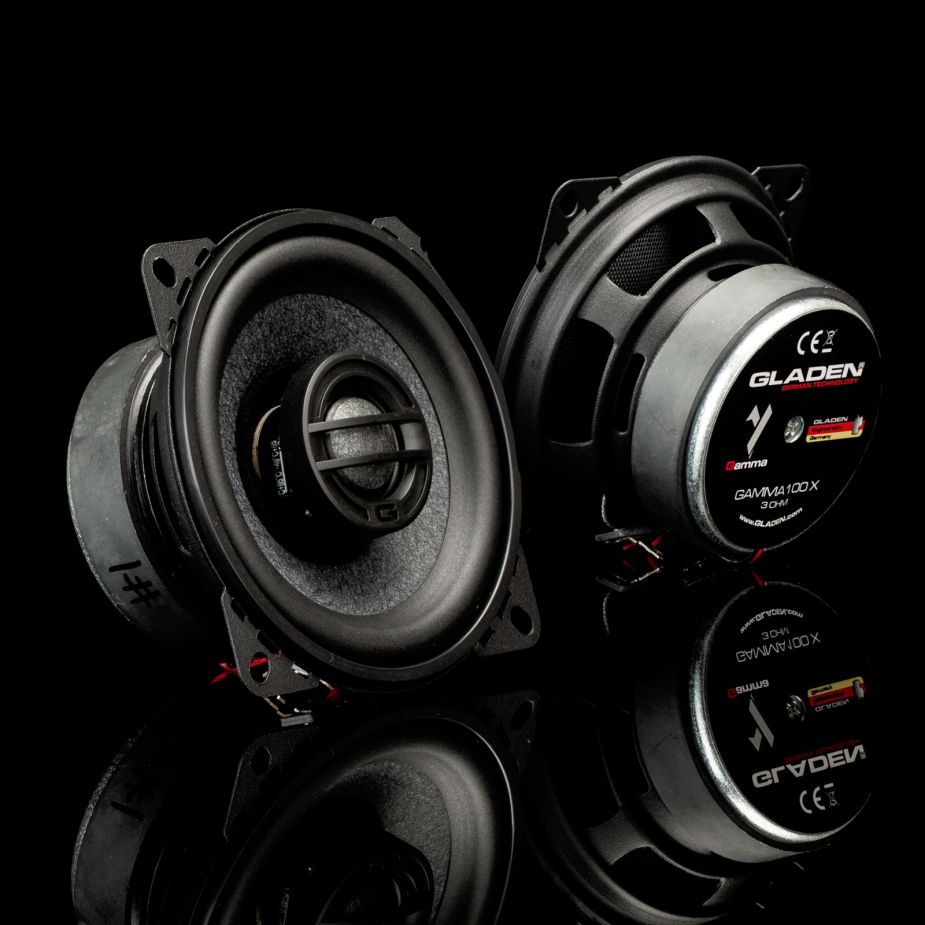

Overview Gladen Gamma 100-X

The GLADEN GAMMA 100-X brings the classic GAMMA sound to a compact coaxial system, offering direct, balanced, and mature sound quality. Designed for those who want significantly better sound in their vehicle with minimal installation effort, it impresses with its clarity, dynamics, and harmonious overall balance.


The integrated tweeter ensures open, fine high-frequency reproduction with plenty of air and detail. Highs are clear and present without being sharp, blending harmoniously into the sound. Voices and subtle nuances become more natural and spatial, making the music sound lively and authentic.


The woofer complements the system with precise, controlled bass. It gives music noticeable body, keeps bass cleanly structured, and ensures stable, pleasant sound reproduction, even at higher volumes. The result is a sound image that is powerful yet relaxed.


The coaxial design creates a closed, homogeneous soundstage that impresses regardless of the installation position. This makes the GAMMA 100-X ideal for door or rear installations, as well as for high-quality retrofit solutions with an OEM-like appearance.


It is the perfect choice for those seeking a compact speaker system with superior sound quality, high usability, and authentic GAMMA character.

midWoofer

  • Size: 100 mm
  • Glass fibre Nomex cone
  • Nomex spider
  • 25 mm voice coil

Tweeter

  • 19 mm Voicecoil
  • Carbon-Fiber-Graphene
  • Internal high-frequency strand guide and crossover

Technical datas Gladen Gamma 100-X

MIdWoofer

  • Diameter:

    100 mm

  • Power handling:

    120 | 80 Watts

  • Impedance:

    3 Ohm

  • Fs:

    120 Hz

  • Re:

    2,67

  • Qms:

    3,1

  • Qes:

    0,99

  • Qts:

    0,75

  • Vas:

    1,23 Liter

  • Sq:

    55,4 cm²

  • Mms:

    5,6 g

Tweeter

  • Diameter:

    19 mm

  • Impedance:

    4 Ohm
