2 - Way System

Gladen Gamma 200.2 (ac)

  • 200mm Loudspeakersystem
  • 150 | 100 Watt
  • 3 Ohm Impedance
  • carbon-Nomex-Membrane

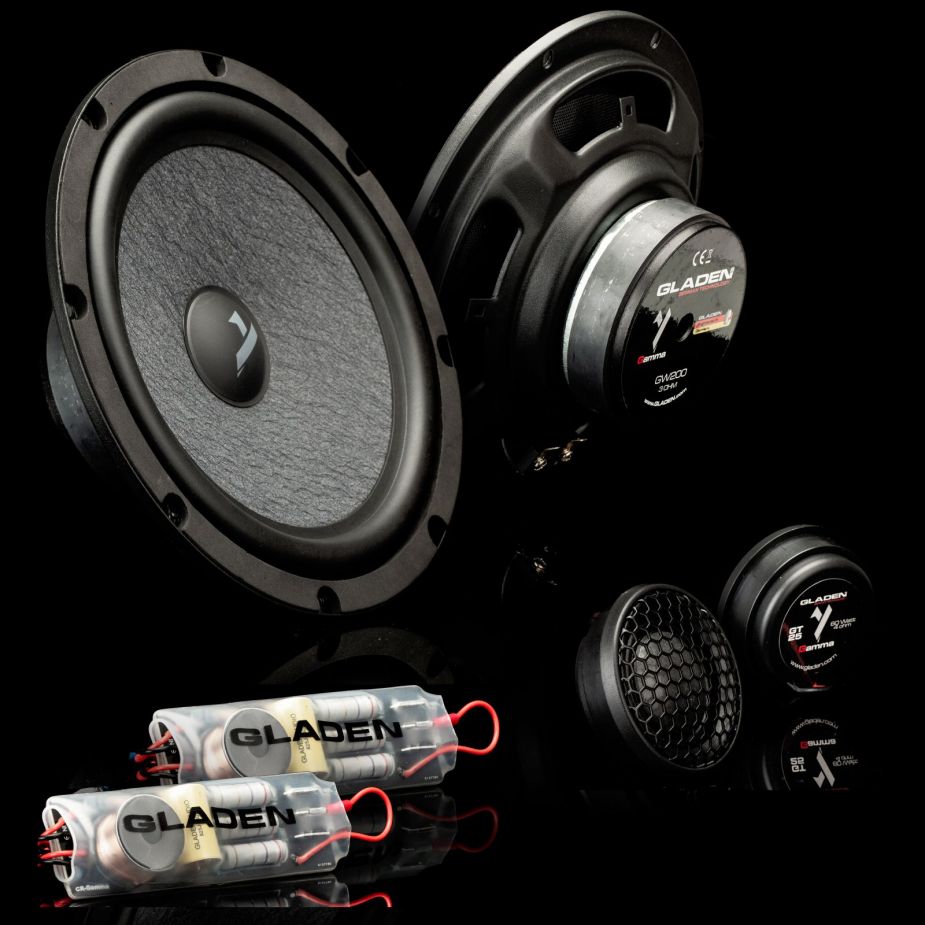

Overview Gladen Gamma 200.2 (AC)

The GLADEN GAMMA 200.2 is the most powerful two-way complete system in the GAMMA series. Designed for uncompromising dynamics, precise kick bass, and high-level stability, it is ideal for vehicles with sufficient installation space. With its large 200-millimeter woofer, the system is ideal for vehicles with ample installation space or applications requiring maximum fundamental tone and bass performance.


With a total quality factor of 0.67, the GAMMA GW200 woofer provides controlled, powerful performance in door volumes and small, closed enclosures. The innovative NOMEX/glass fiber cone combines high rigidity with excellent internal damping. The result is clean, low-distortion sound, even at high volumes, as well as precise reproduction down to the low-midrange.
The newly developed GAMMA GT25 tweeter is used for high-frequency reproduction. Its carbon fiber graphene diaphragm provides extreme rigidity with minimal mass, ensuring high-resolution, spatial, and natural high-frequency reproduction. This is supported by a pressure-relieving magnet system, a copper eddy current brake, and exclusive MagForce technology, which reduces distortion and ensures even force distribution.


The included CR-GAMMA crossover provides clean signal separation and allows for precise adjustment of the tweeter according to the installation position and personal listening preferences across multiple levels. A system-specific connector ensures quick, secure, and error-free installation.


The GAMMA 200.2 is the ideal choice for discerning music lovers looking to build a powerful, controlled, and detailed front system with genuine high-end DNA in their vehicle.

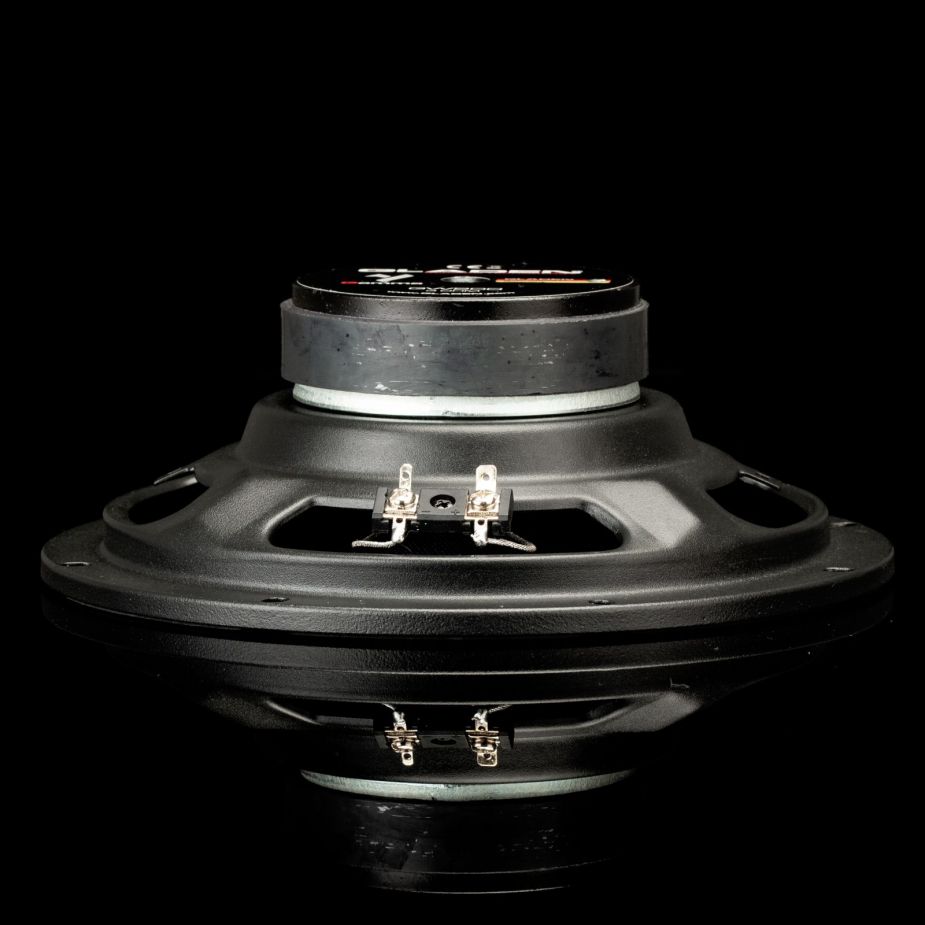

midWoofer

  • Size: 200 mm
  • Glass fibre Nomex cone
  • Nomex spider
  • 32 mm voice coil
  • Soft dust cap

Tweeter

  • 25 mm Voicecoil
  • Carbon-Fiber-Graphene
  • Plastic housing with coupling volume
  • 4 Ohm Impedance

crossover

  • 12db/oct filter
  • 4-stage level adjustment
  • Compact design

Technical datas Gladen Gamma 200.2 (AC)

MIdWoofer

  • Diameter:

    200 mm

  • Power handling:

    150 | 100 Watts

  • Impedance:

    3 Ohm

  • Fs:

    51 Hz

  • Re:

    2,51

  • Qms:

    3,69

  • Qes:

    0,81

  • Qts:

    0,67

  • Vas:

    26,78 Liter

  • Sq:

    216,5 cm²

  • Mms:

    23,45 g

Tweeter

  • Diameter:

    25 mm

  • Power handling:

    80 | 60 Watts (3,5 kHz|24dB/Okt.)

  • Impedance:

    4 Ohm

  • Fs:

    1050 Hz

  • Re:

    3,3 Ohm

  • Sq:

    6,6 cm²

Crossover

  • Crossover frequency:

    2800 Hz

  • Level adjustment (tweeter):

    4 x 2db

  • Bi-amping capable:

    yes
