2 - Way System

Gladen Gamma 165.2 slim

  • 165mm Loudspeakersystem
  • 130 | 80 Watt
  • 3 Ohm Impedance
  • carbon-Nomex-Membrane
  • Slim Version

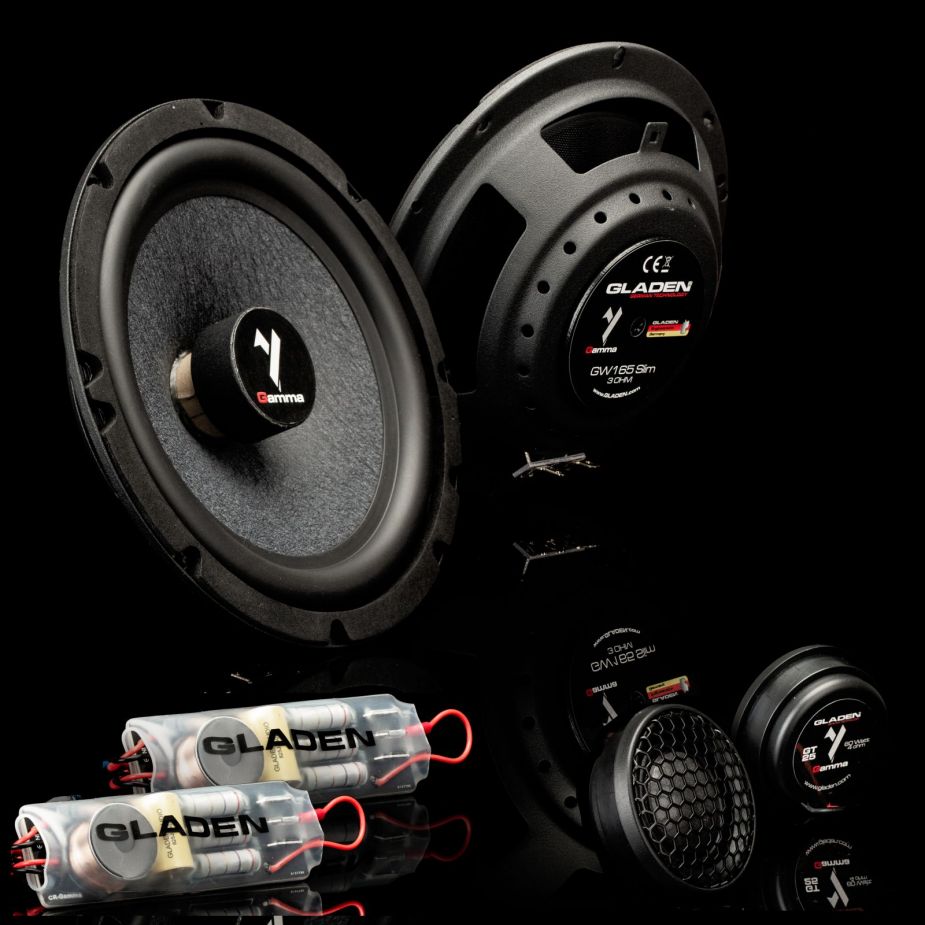

Overview Gladen Gamma 165.2 Slim

The GLADEN GAMMA 165.2 Slim was specially designed for vehicles with limited space for installation. Despite this limitation, these vehicles still require a powerful, full-fledged front system. The GLADEN GAMMA 165.2 Slim combines the sonic strengths of the GAMMA series with an exceptionally flat design, without compromising precision, dynamics, or musical expressiveness.


The low-midrange driver's flat design delivers surprisingly powerful and controlled kick bass, giving voices and instruments more body and presence. Despite its shallow installation depth, the sound image remains stable, cleanly structured, and balanced. This makes the system ideal for modern door installations and vehicle-specific locations with limited space.


In the high-frequency range, the newly developed GAMMA GT25 tweeter impresses with its exceptionally fine, spatial reproduction. It resolves details precisely without being intrusive, blending seamlessly into the overall sound. The result is an open, natural soundstage with clear localization and long-term listening comfort.
The CR-GAMMA crossover is perfectly matched to the system and ensures that all components work together harmoniously. It allows for flexible adaptation to installation positions and personal listening preferences, facilitating integration into a wide variety of vehicles. The system-specific connection for the tweeter enables quick, clean installation.


The GAMMA 165.2 Slim is the ideal solution for those who want the full GAMMA sound despite a shallow installation depth: powerful, precise, and uncompromisingly musical.

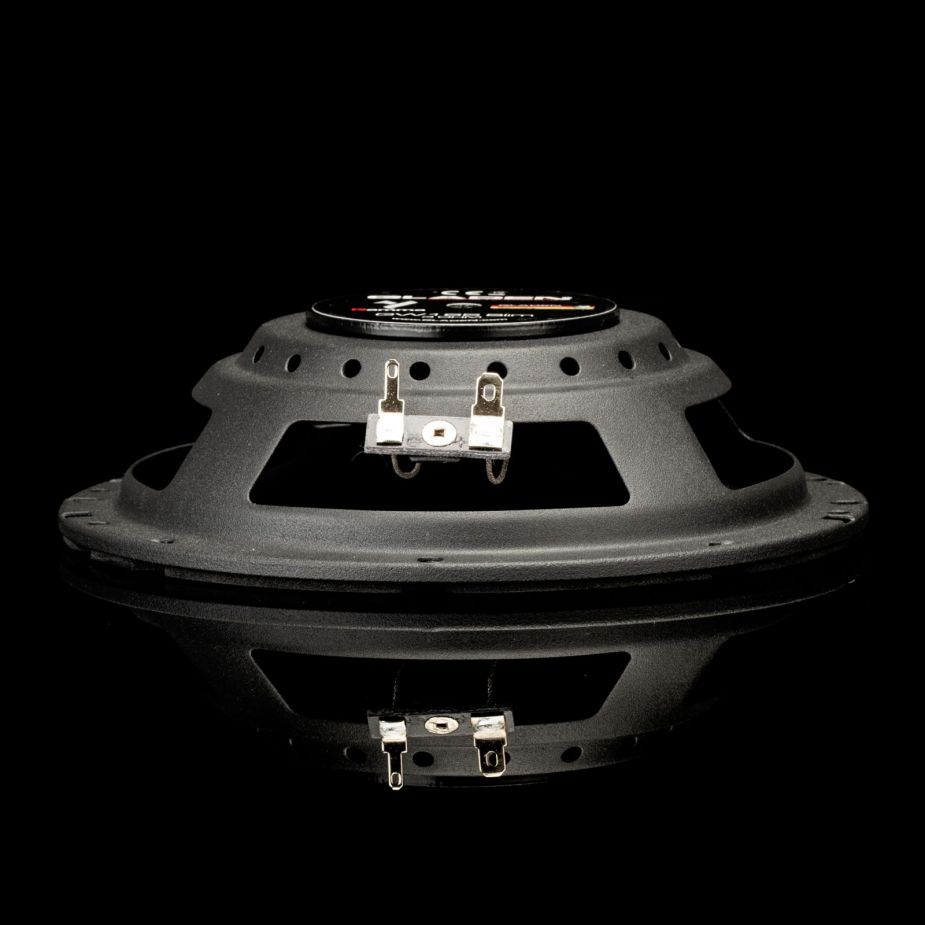

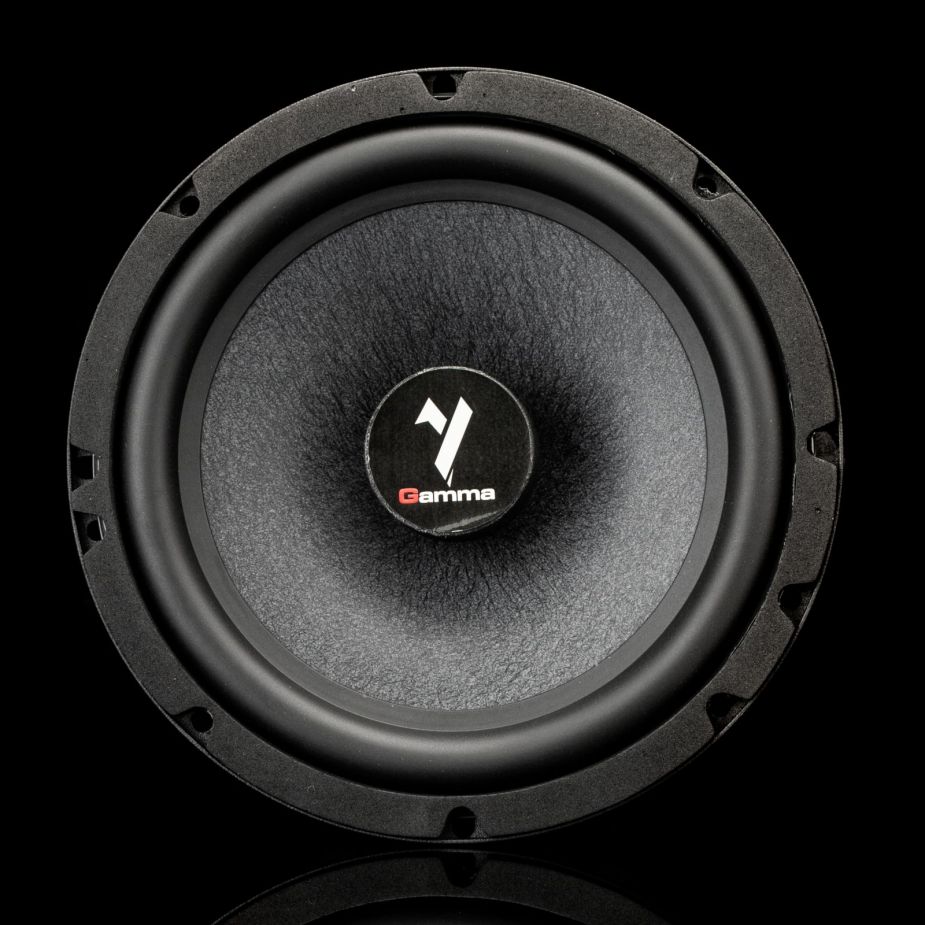

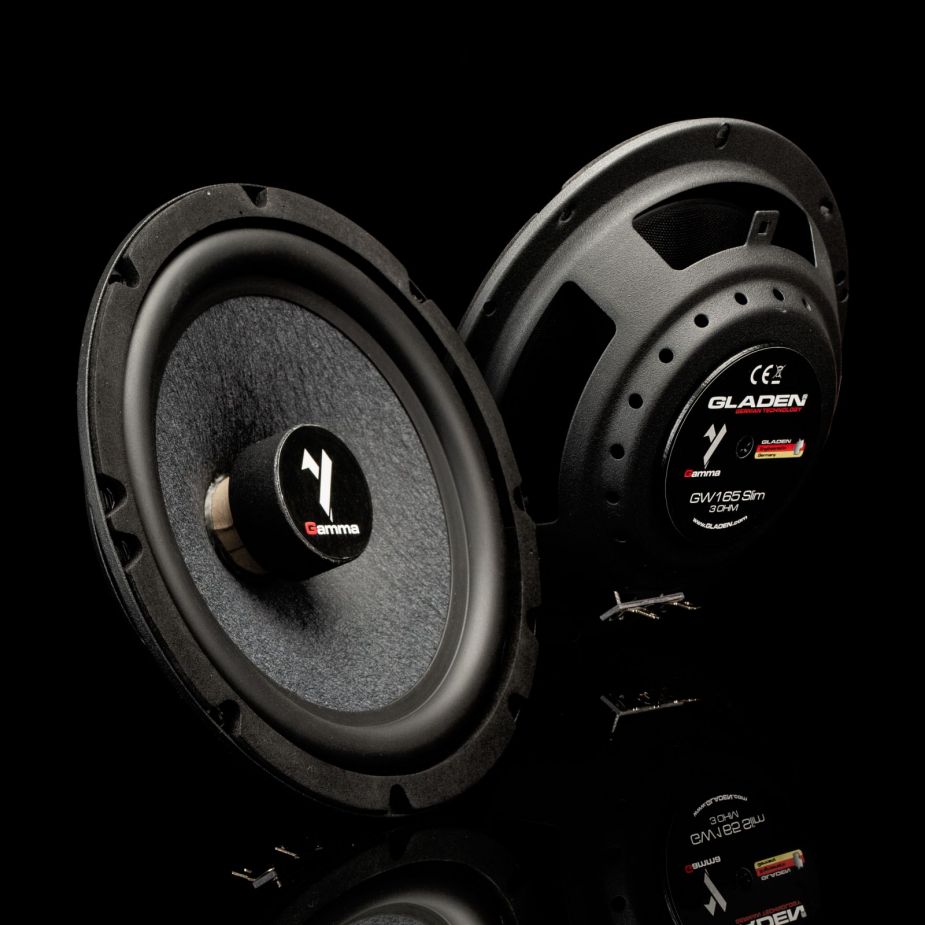

midWoofer

  • Size: 165 mm
  • Glass fibre Nomex cone
  • Nomex spider
  • 25 mm voice coil
  • Slimdesign

Tweeter

  • 25 mm Voicecoil
  • Carbon-Fiber-Graphene
  • Plastic housing with coupling volume
  • 4 Ohm Impedance

crossover

  • 12db/oct filter
  • 4-stage level adjustment
  • Compact design

Technical datas Gladen Gamma 165.2 Slim

MIdWoofer

  • Diameter:

    165 mm

  • Power handling:

    130 | 80 Watts

  • Impedance:

    3 Ohm

  • Fs:

    82 Hz

  • Re:

    2,6

  • Qms:

    5,21

  • Qes:

    0,99

  • Qts:

    0,83

  • Vas:

    9,5 Liter

  • Sq:

    135 cm²

  • Mms:

    10,1 g

Tweeter

  • Diameter:

    25 mm

  • Power handling:

    80 | 60 Watts (3,5 kHz|24dB/Okt.)

  • Impedance:

    4 Ohm

  • Fs:

    1050 Hz

  • Re:

    3,3 Ohm

  • Sq:

    6,6 cm²

Crossover

  • Crossover frequency:

    2800 Hz

  • Level adjustment (tweeter):

    4 x 2db

  • Bi-amping capable:

    yes
