2 - Way System

Gladen Gamma 165.2 (ac)

  • 165mm Loudspeakersystem
  • 175 | 100 Watt
  • 3 Ohm Impedance
  • carbon-Nomex-Membrane

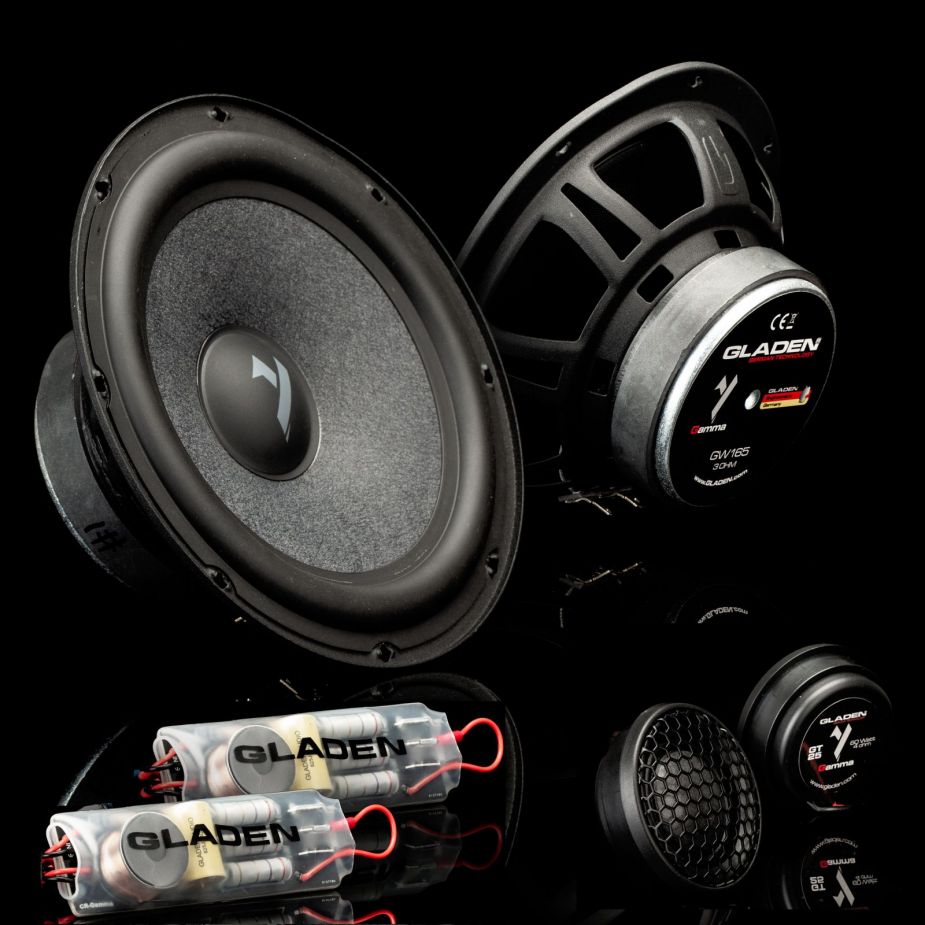

Overview Gladen Gamma 165.2 (AC)

The GLADEN GAMMA 165.2 delivers powerful, precise, and balanced sound to your vehicle. Designed for music lovers who want dynamics, control, and fine detail resolution in a harmonious package, this high-quality 2-way front system is a great choice.


The 165 mm woofer provides confident kick bass with clear structure and definition. Voices and instruments are reproduced cleanly and naturally, and the fundamental tone range gains noticeable body and presence. Even at higher volumes, the sound remains controlled and relaxed — exactly what a high-quality front system needs for everyday use.


In the high-frequency range, the newly developed GAMMA GT25 tweeter impresses with its exceptionally fine, spatial reproduction. It resolves details precisely without being intrusive, blending seamlessly into the overall sound. The result is an open, natural soundstage with clear localization and long-term listening comfort.
The CR-GAMMA crossover is perfectly matched to the system and ensures that all components work together harmoniously. It allows for flexible adaptation to installation positions and personal listening preferences, facilitating integration into a wide variety of vehicles. The system-specific connection for the tweeter enables quick, clean installation.


The GAMMA 165.2 is the ideal choice for anyone who wants to elevate their vehicle's sound with more dynamics, clarity, and musical precision without distorting the character of the music.

midWoofer

  • Size: 165 mm
  • Glass fibre Nomex cone
  • Nomex spider
  • 25 mm voice coil
  • Soft dust cap

Tweeter

  • 25 mm Voicecoil
  • Carbon-Fiber-Graphene
  • Plastic housing with coupling volume
  • 4 Ohm Impedance

crossover

  • 12db/oct filter
  • 4-stage level adjustment
  • Compact design

Technical datas Gladen Gamma 165.2 (AC)

MIdWoofer

  • Diameter:

    165 mm

  • Power handling:

    175 | 100 Watts

  • Impedance:

    3 Ohm

  • Fs:

    59 Hz

  • Re:

    2,63

  • Qms:

    2,7

  • Qes:

    0,55

  • Qts:

    0,45

  • Vas:

    16,2 Liter

  • Sq:

    135 cm²

  • Mms:

    10,9 g

Tweeter

  • Diameter:

    25 mm

  • Power handling:

    80 | 60 Watts (3,5 kHz|24dB/Okt.)

  • Impedance:

    4 Ohm

  • Fs:

    1050 Hz

  • Re:

    3,3 Ohm

  • Sq:

    6,6 cm²

Crossover

  • Crossover frequency:

    2800 Hz

  • Level adjustment (tweeter):

    4 x 2db

  • Bi-amping capable:

    yes
