2 - Way System

Gladen Gamma 130.2 slim

  • 130mm Loudspeakersystem
  • 130 | 80 Watt
  • 3 Ohm Impedance
  • carbon-Nomex-Membrane
  • Slim design

Overview Gladen Gamma 130.2 Slim

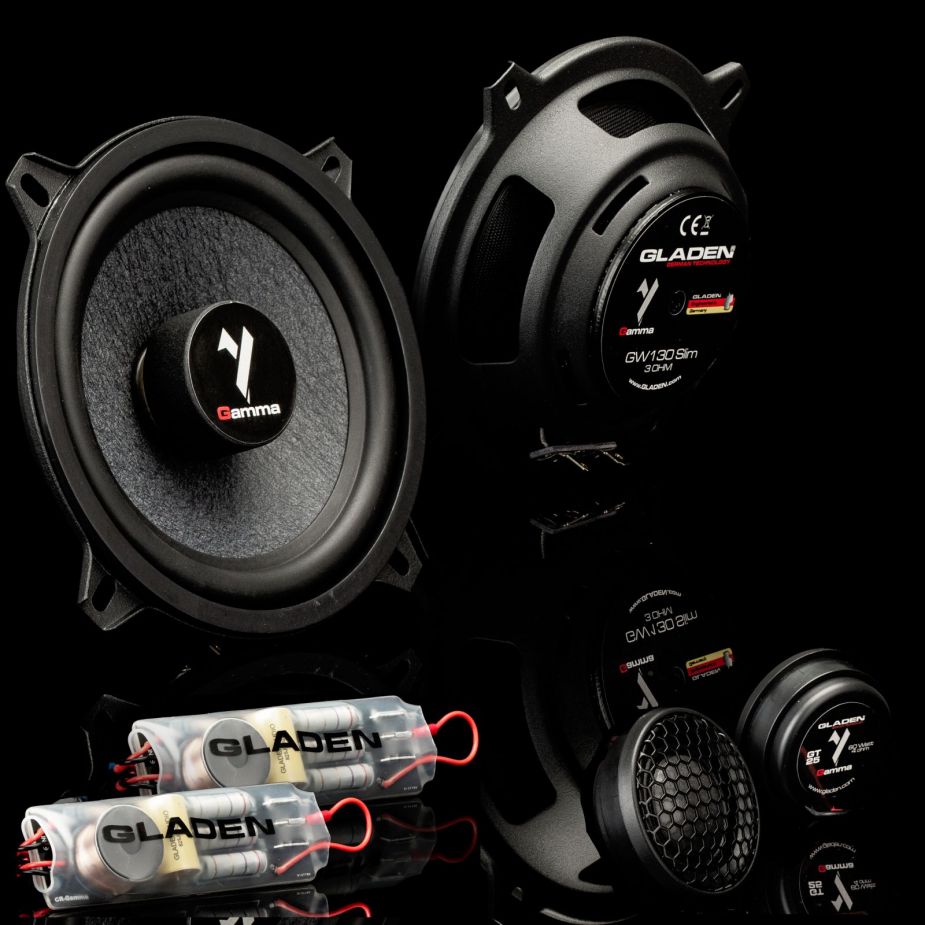

The GLADEN GAMMA 130.2 Slim is a compact, two-way front speaker system designed for vehicles with limited installation space. Developed to deliver precise, dynamic, and balanced sound performance in challenging spaces, it is a typical GAMMA product with an especially flat design.


The slim low-midrange driver impresses with its fast and controlled reproduction of kick bass and midrange frequencies. Voices are clear and focused, and instruments are reproduced with precise structure. Despite its flat design, the sound image remains clean, lively, and astonishingly robust. Therefore, the system is ideal for modern door concepts and tight installation situations.


In the high-frequency range, the newly developed GAMMA GT25 tweeter impresses with its exceptionally fine, spatial reproduction. It resolves details precisely without being intrusive, blending seamlessly into the overall sound. The result is an open, natural soundstage with clear localization and long-term listening comfort.
The CR-GAMMA crossover is perfectly matched to the system and ensures that all components work together harmoniously. It allows for flexible adaptation to installation positions and personal listening preferences, facilitating integration into a wide variety of vehicles. The system-specific connection for the tweeter enables quick, clean installation.


The GAMMA 130.2 Slim is the ideal solution for those seeking a space-saving front system offering high precision, clear dynamics, and genuine musical control. It is compact, high-quality, and uncompromisingly tuned.

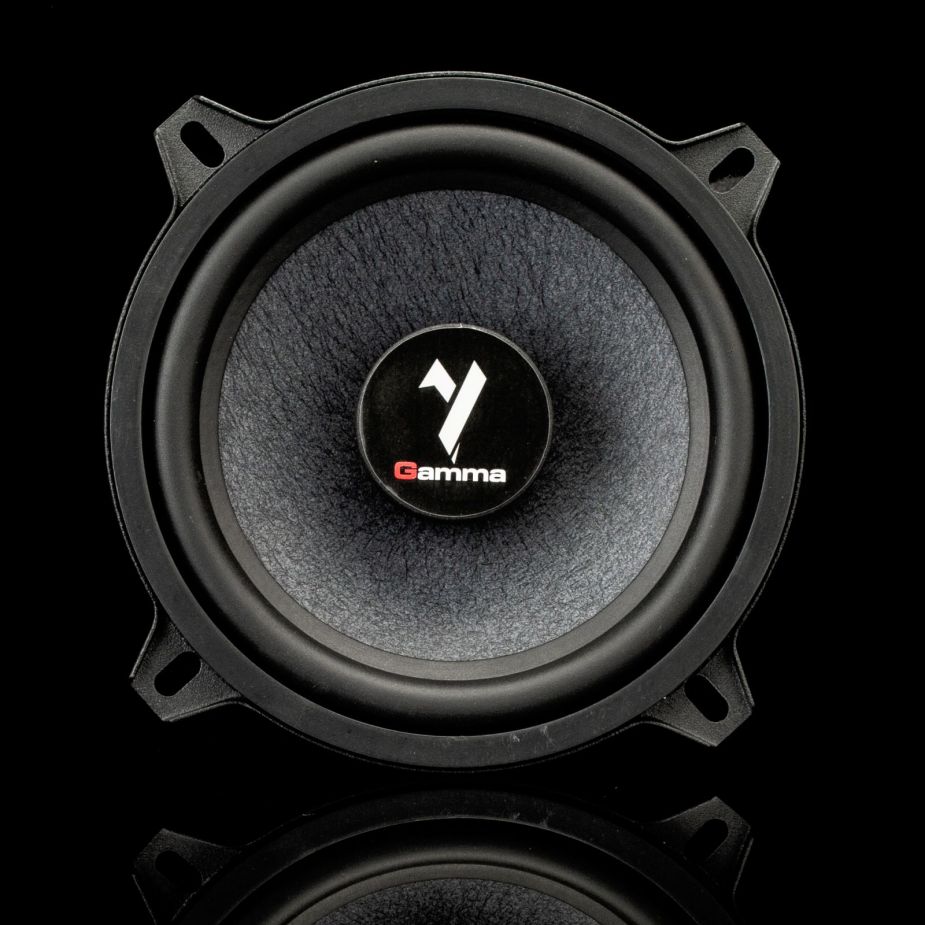

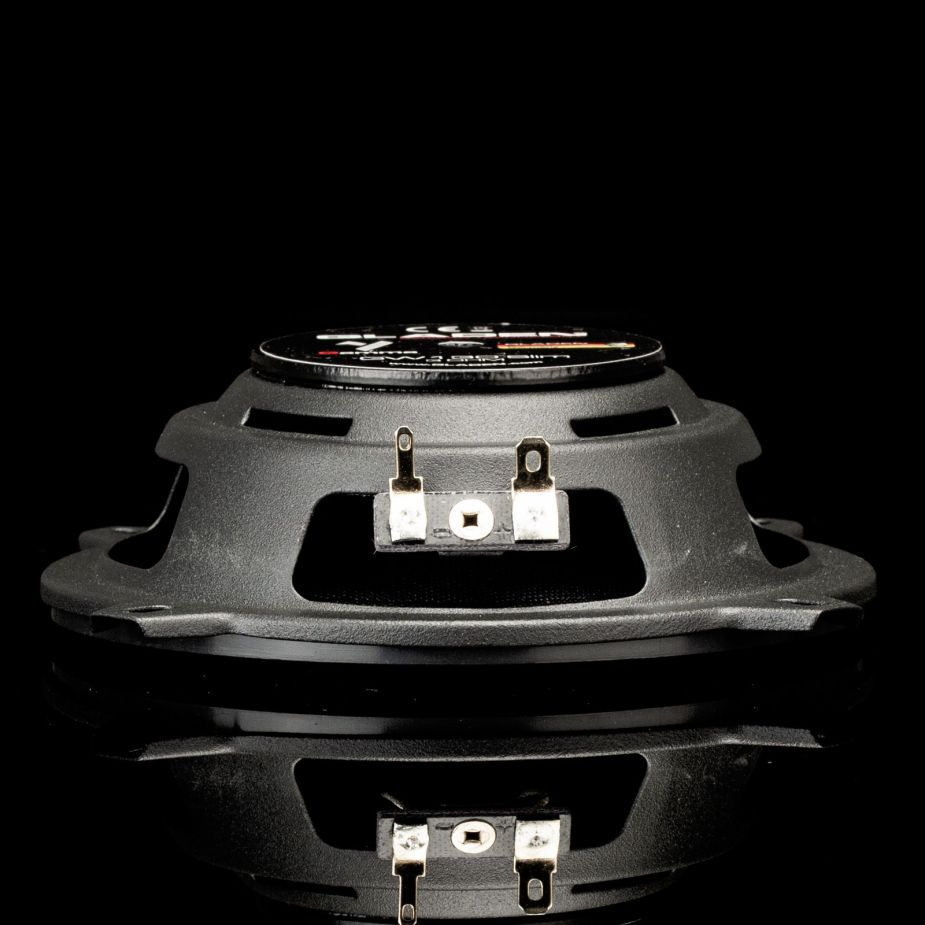

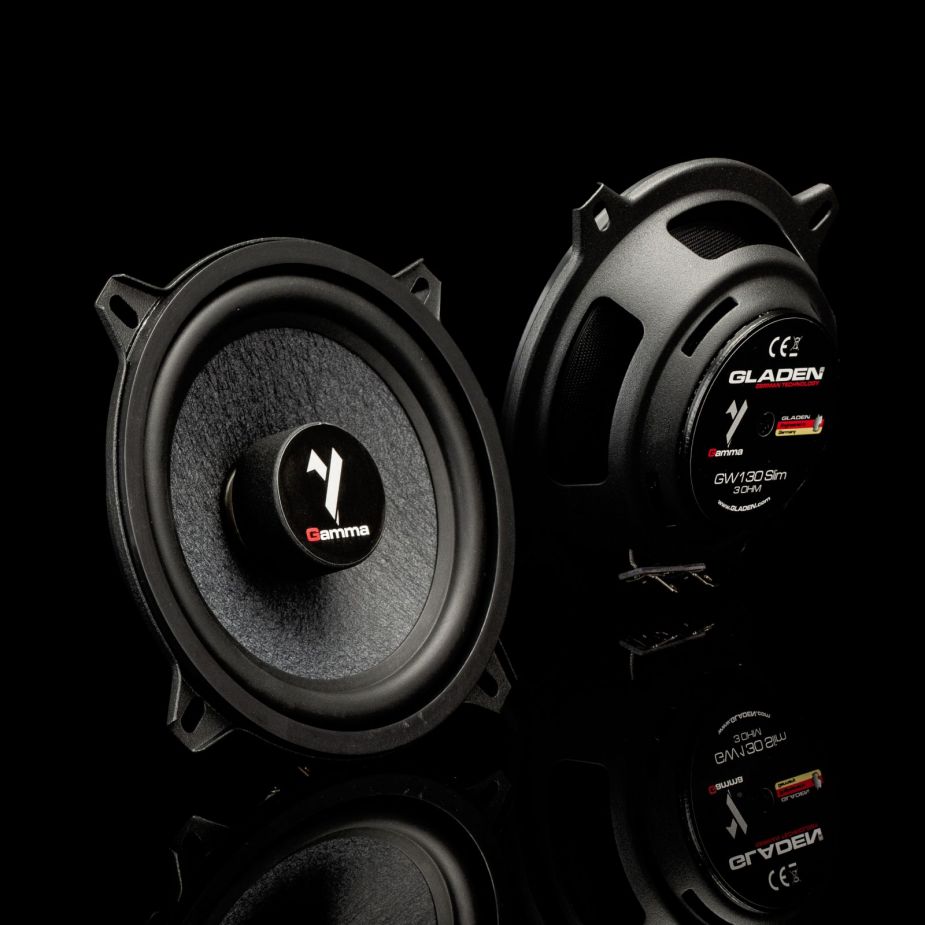

midWoofer

  • Size: 30 mm
  • Glass fibre Nomex cone
  • Nomex spider
  • 25 mm voice coil
  • Slim design

Tweeter

  • 25 mm Voicecoil
  • Carbon-Fiber-Graphene
  • Plastic housing with coupling volume
  • 4 Ohm Impedance

crossover

  • 12db/oct filter
  • 4-stage level adjustment
  • Compact design

Technical datas Gladen Gamma 130.2 Slim

MIdWoofer

  • Diameter:

    130 mm

  • Power handling:

    130 | 80 Watts

  • Impedance:

    3 Ohm

  • Fs:

    108 Hz

  • Re:

    2,6

  • Qms:

    4,97

  • Qes:

    1,65

  • Qts:

    1,24

  • Vas:

    4,36 Liter

  • Sq:

    85 cm²

  • Mms:

    5,01 g

Tweeter

  • Diameter:

    25 mm

  • Power handling:

    80 | 60 Watts (3,5 kHz|24dB/Okt.)

  • Impedance:

    4 Ohm

  • Fs:

    1050 Hz

  • Re:

    3,3 Ohm

  • Sq:

    6,6 cm²

Crossover

  • Crossover frequency:

    2800 Hz

  • Level adjustment (tweeter):

    4 x 2db

  • Bi-amping capable:

    yes
