2-Way System
Gladen Gamma 100.2
- 100 mm Loudspeaker System
- 140 | 80 Watts
- 3 Ohm Impedance
- Carbon-Nomex-Membrane

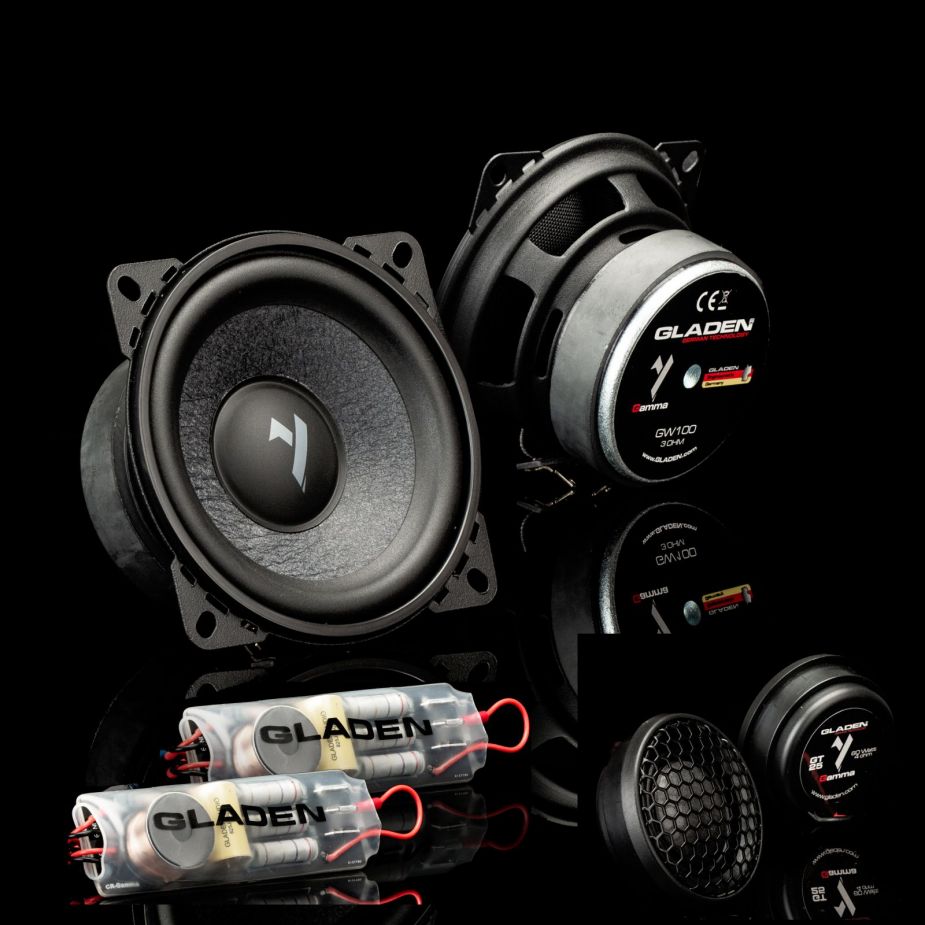

Overview Gladen Gamma 100.2
The GLADEN GAMMA 100.2 is a compact, two-way front speaker system for vehicles with limited installation space. Designed to deliver maximum sound quality in minimal space, it is ideal for users who want precision, clarity, and musical balance without compromising on size.
The 100 mm bass-midrange driver provides exceptionally clean and controlled midrange reproduction. Voices sound clear, direct, and natural, and instruments are precisely focused. Despite its compact size, the system produces a complete sound with clear structure and definition. This makes it ideal for modern vehicles, dashboards, and door installations.
In the high-frequency range, the newly developed GAMMA GT25 tweeter delivers exceptionally fine, spatial reproduction. It resolves details precisely without being intrusive, blending seamlessly into the overall sound. The result is an open, natural soundstage with clear localization and long-term listening comfort.
The CR-GAMMA crossover is perfectly matched to the system and ensures that all components work together harmoniously. It adapts flexibly to installation positions and personal listening preferences, which simplifies integration into a wide variety of vehicles. The system-specific connection for the tweeter enables quick, clean installation.
The GAMMA 100.2 is the answer for anyone who wants a high-quality front system that needs very little space — it delivers precise, musical sound tuning without compromise.
midWoofer
- Size: 100 mm
- Glass fiber Nomex cone
- Nomex spider
- 25 mm voice coil
- Soft dust cap
Tweeter
- 25 mm voice coil
- Carbon-Fiber-Graphene
- Plastic housing with coupling volume
- 4 Ohm Impedance
Crossover
- 12 dB/oct filter
- 4-stage level adjustment
- Compact design
Technical data Gladen Gamma 100.2
midWoofer
-
Diameter:
100 mm
-
Power handling:
140 | 80 Watts
-
Impedance:
3 Ohm
-
Fs:
123 Hz
-
Re:
2,6
-
Qms:
2,5
-
Qes:
1,02
-
Qts:
0,73
-
Vas:
1,5 Liter
-
Sq:
60 cm²
-
Mms:
5,6 g
Tweeter
-
Diameter:
25 mm
-
Power handling:
80 | 60 Watts (3,5 kHz|24 dB/oct.)
-
Impedance:
4 Ohm
-
Fs:
1050 Hz
-
Re:
3,3 Ohm
-
Sq:
6,6 cm²
Crossover
-
Crossover frequency:
2800 Hz
-
Level adjustment (tweeter):
4 x 2 dB
-
Bi-amping capable:
yes
