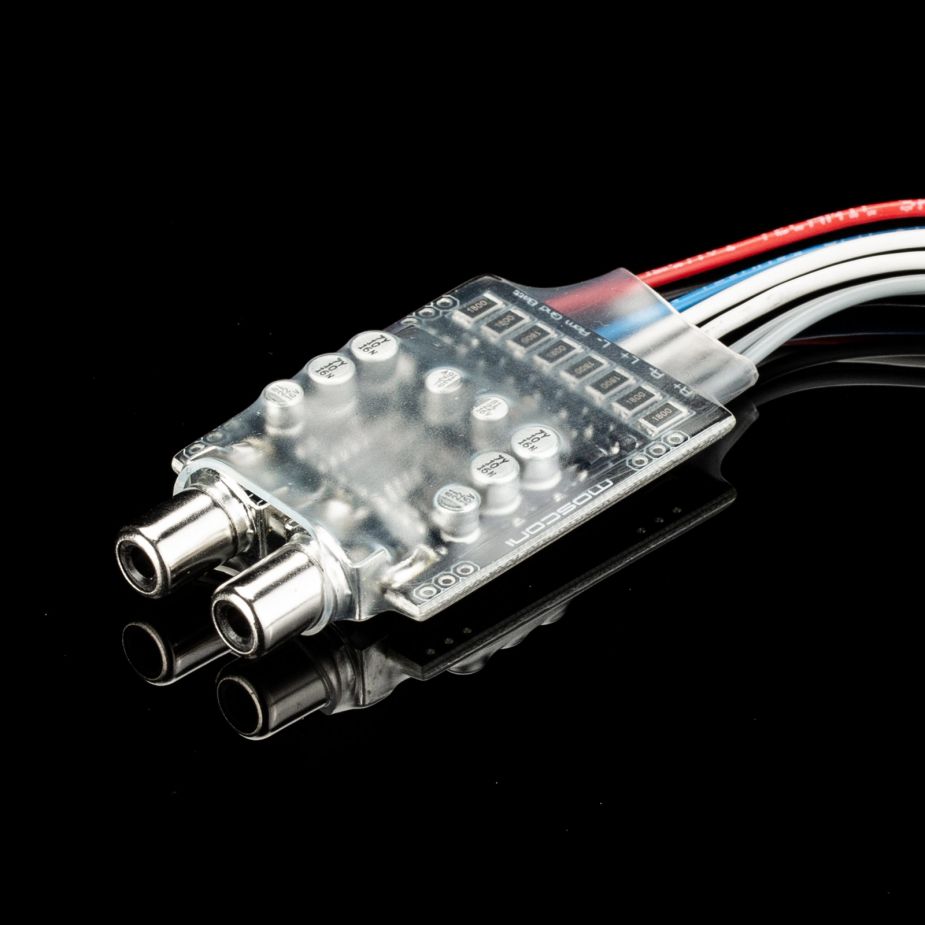

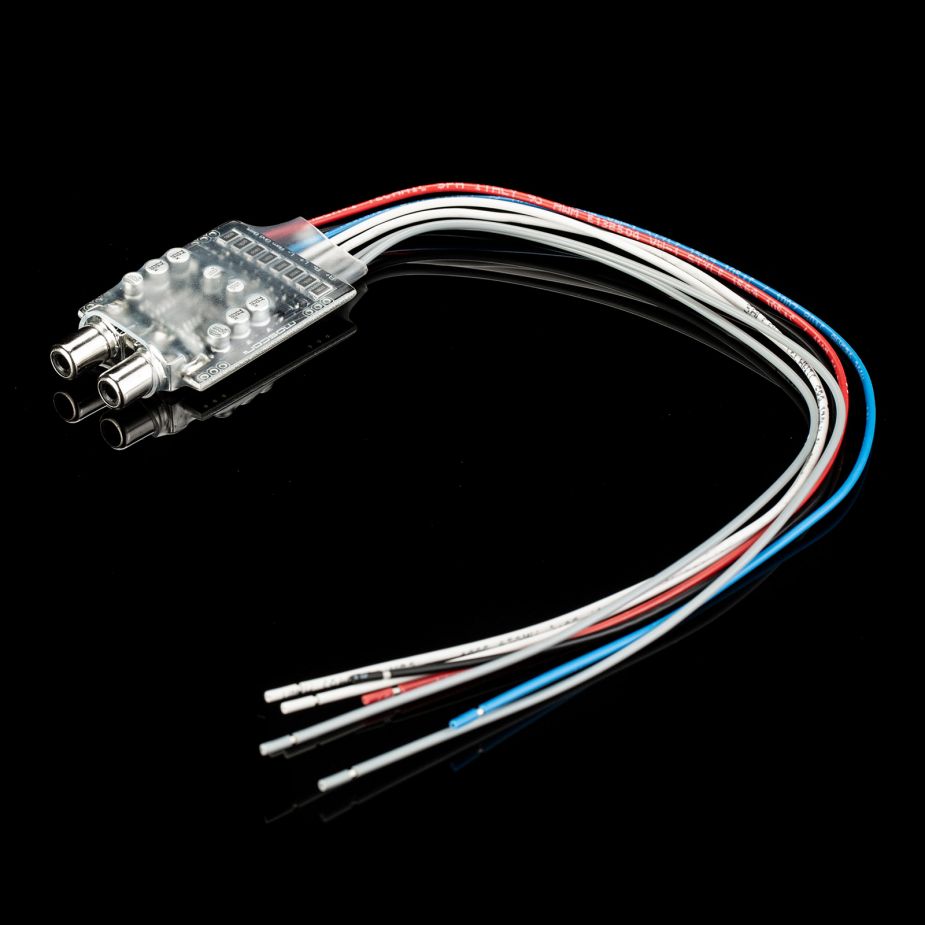

The MOSCONI HLA-SLIM is an extremely compact, two-channel, high-low adapter designed for modern vehicle audio systems with high-power head units (BTL outputs). Its lack of plastic housings and plug connections allows for particularly space-saving and inconspicuous installation — ideal for cramped spaces and OEM-like integration.
The HLA-SLIM HP (high power) is designed for speaker outputs of up to 50 watts, making it suitable for more powerful factory radios. Both versions have an integrated remote output with a load capacity of up to 100 mA that automatically turns on external amplifiers or digital signal processors (DSPs).
The remote signal is generated based on the detection of a constant DC voltage at the BTL outputs of modern, high-power head units. An applied voltage of at least 3 V DC is required at one input. The HLA-SLIM/HLA-SLIM HP only evaluates this DC voltage; the music signal itself is not processed.
The MOSCONI HLA-SLIM is a specialized solution for clearly defined OEM applications, offering reliable, interference-free remote generation in systems with BTL output stages.
Technical data Mosconi HLA-Slim
Data:
Standby power consumption:
< 0.8 mA
Operational power consumption:
< 15 mA (< 30 mA in the Dual version)
Protection against polarity reversal:
Yes
Maximum permissible current at remote out:
100 mA (normal operation)
Minimum permissible load at remote out:
120 Ohm (normal operation)
Remote Out Voltage:
> 12 V @ Irem-out < 100 mA
Remote Out Short Circuit Protection:
Yes (to ground)
Maximum short-circuit duration at Remote Out:
< 10 second (*)
Total harmonic distortion:
< 0.01 %
Rate of increase:
10 V/uS
S/N signal-to-noise ratio:
> 100 dB
Channel separation:
> 60 dB
Common-mode noise suppression:
> 60 dB
Downward conversion - Ratio:
4:1 V/V
High-level input ballast impedance:
45 Ohm / 2 W each channel
Maximum continuous power (sine wave) at 4 ohms:
25 Wrms x CH
Maximum permissible rated load capacity of the head unit:
50 W x CH (**)
Maximum output signal @ THD:
< 0.1 % 3.2 Vrms
Minimum output load impedance:
2 kOhm
(*) Exceeding the maximum permissible time may cause permanent damage to the device. (**) Maximum actual RMS rated power, not PMPO, peak, etc.
