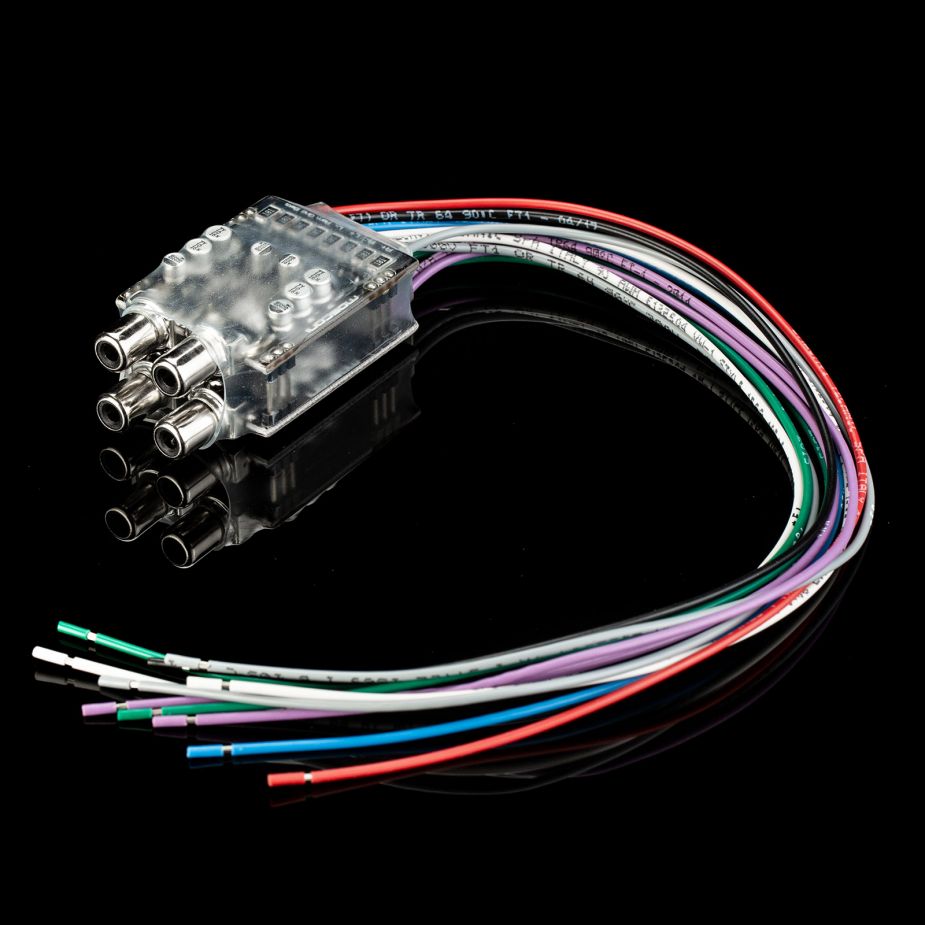

The MOSCONI HLA-DUAL is a compact, four-channel, high-low adapter designed to integrate amplifiers and digital signal processing (DSP) systems into modern original equipment manufacturer (OEM) audio systems.
Since many modern vehicles continuously monitor their speaker outputs and detect changes in the connected load, the HLA-DUAL is the ideal solution. Its integrated load simulation replicates the electrical impedance of a speaker, enabling seamless integration into modern vehicle architectures. This prevents malfunctions, such as speaker diagnostics errors, error messages, and signal shutdowns.
Designed for vehicles with high-power head units and BTL outputs, the HLA-DUAL allows for safe signal tapping at the speaker outputs of the original system. At the same time, the module generates a reliable remote signal by detecting the applied DC voltage. This allows amplifiers and digital signal processor (DSP) systems to be automatically turned on and off, even if no separate remote line is available.

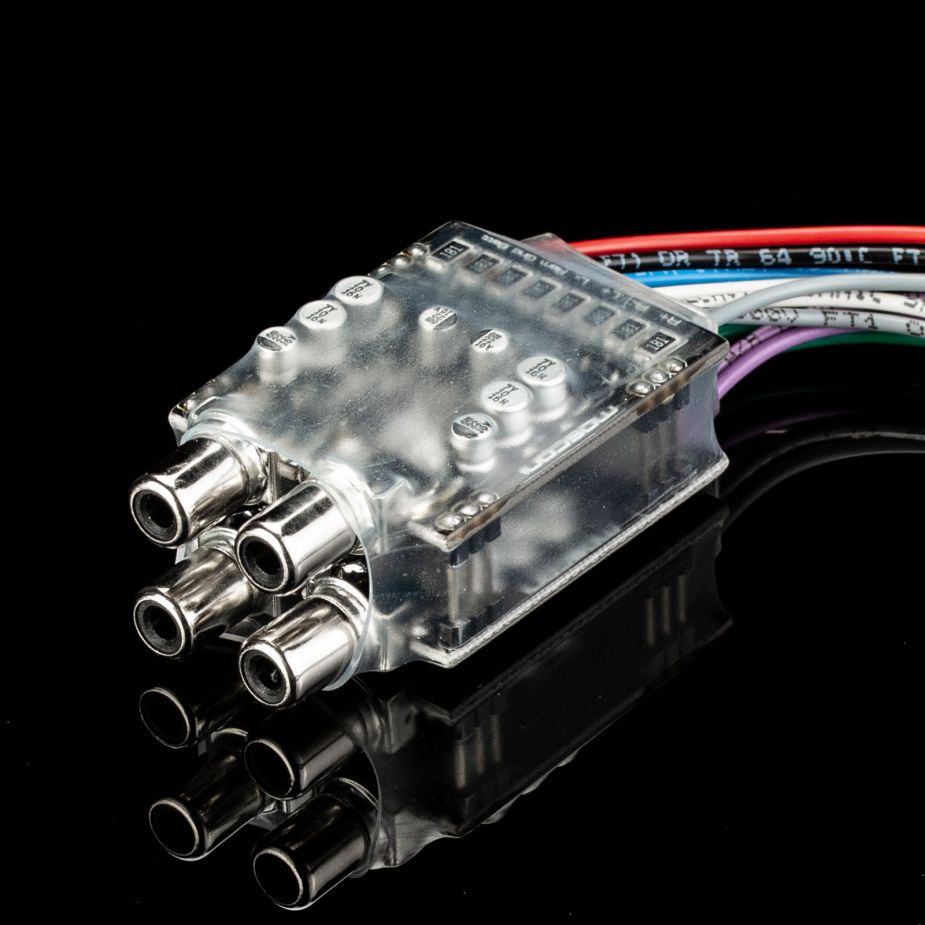

Thanks to its compact design, the HLA-DUAL can be installed directly in the wiring harness or close to the head unit. The lack of a housing and connectors minimizes the required space, enabling discreet integration even in tight spaces.
Technical data Mosconi HLA-Dual
Data:
Standby power consumption:
< 0.8 mA
Operational power consumption:
< 15 mA (< 30 mA in the Dual version)
Protection against polarity reversal:
Yes
Maximum permissible current at remote out:
100 mA (normal operation)
Minimum permissible load at remote out:
120 Ohm (normal operation)
Remote Out Voltage:
> 12 V @ Irem-out < 100 mA
Remote Out Short Circuit Protection:
Yes (to ground)
Maximum short-circuit duration at Remote Out:
< 10 second (*)
Total harmonic distortion:
< 0.01 %
Rate of increase:
10 V/uS
S/N signal-to-noise ratio:
> 100 dB
Channel separation:
> 60 dB
Common-mode noise suppression:
> 60 dB
Downward conversion - Ratio:
4:1 V/V
High-level input ballast impedance:
45 Ohm / 2 W each channel
Maximum continuous power (sine wave) at 4 ohms:
25 Wrms x CH
Maximum permissible rated load capacity of the head unit:
50 W x CH (**)
Maximum output signal @ THD:
< 0.1 % 3.2 Vrms
Minimum output load impedance:
2 kOhm
(*) Exceeding the maximum permissible time may result in permanent damage to the device. (**) This is the maximum actual RMS rated power, not PMPO, peak, etc.
