Multifunctional twist/push controller
Gladiator
- Multifunctional rotary/push controller
- Control of volume, sub-level, and DSP functions
- Preset selection directly on the control
- RGB status display for function and preset
Overview Gladiator

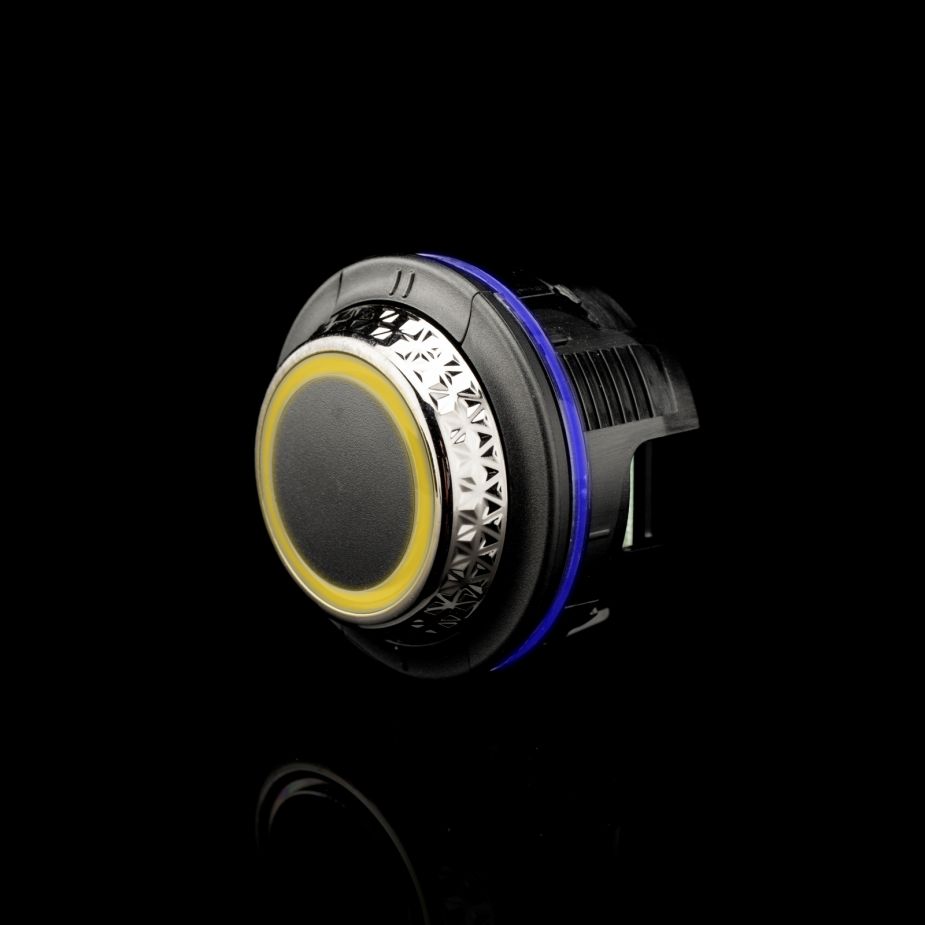

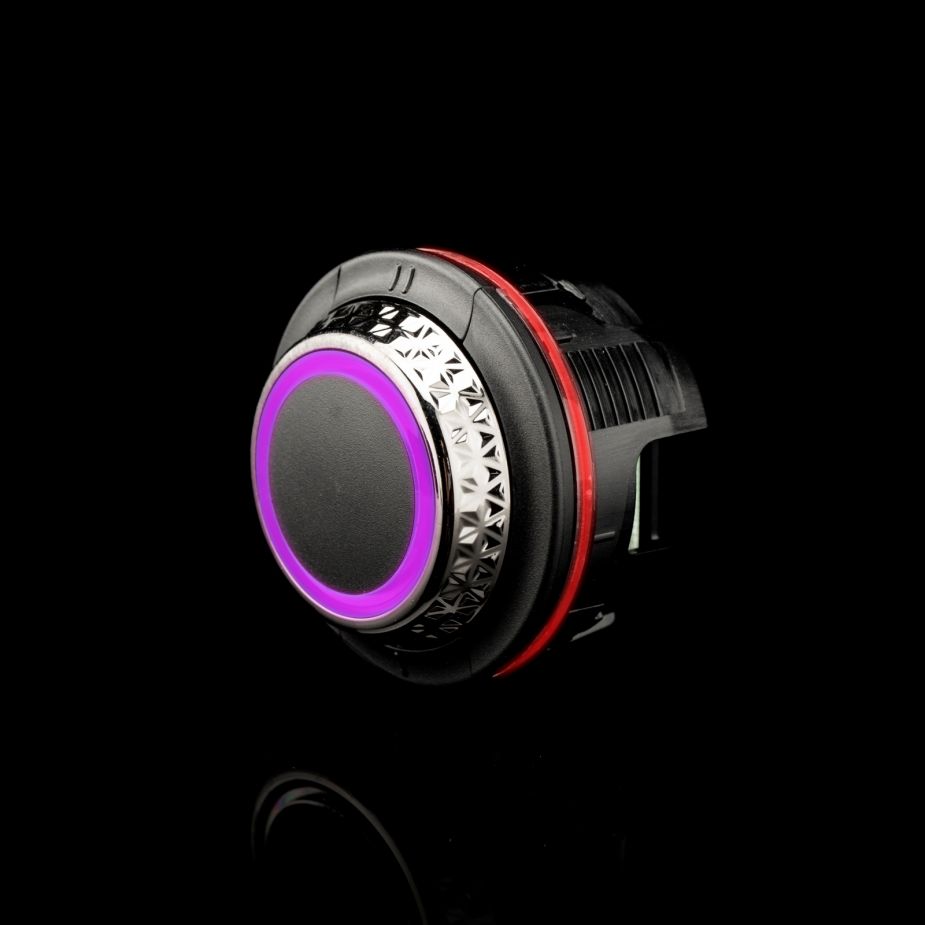

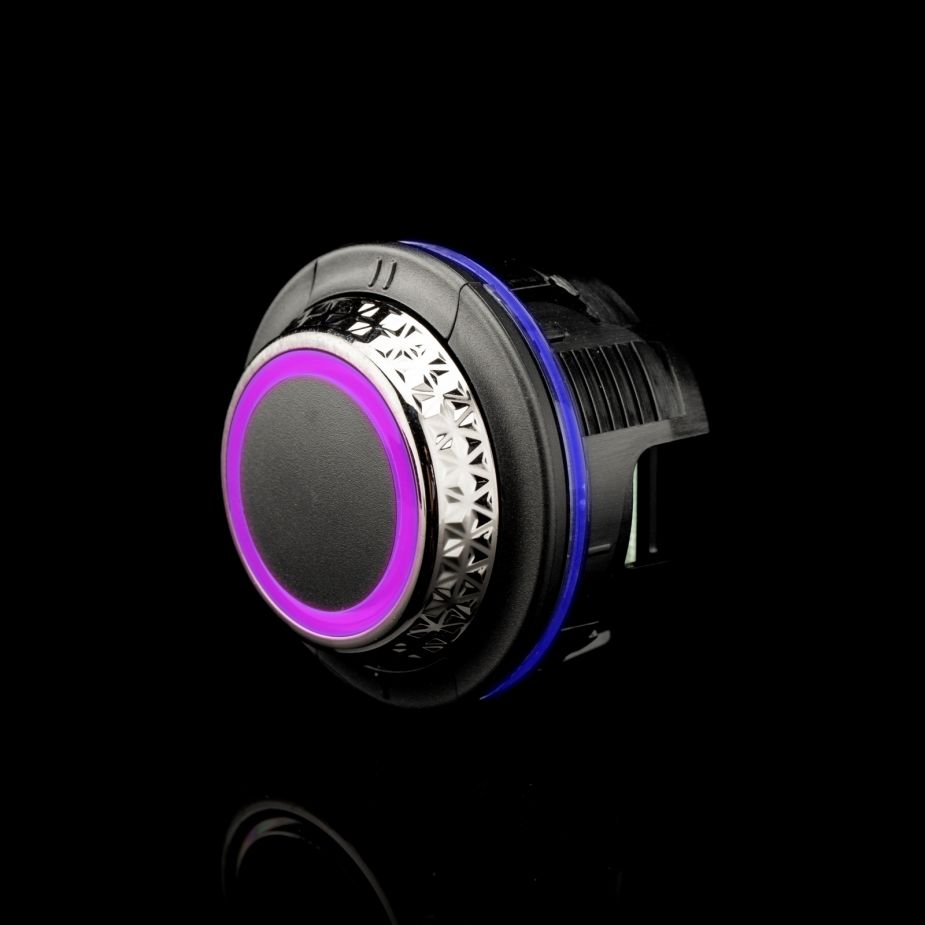

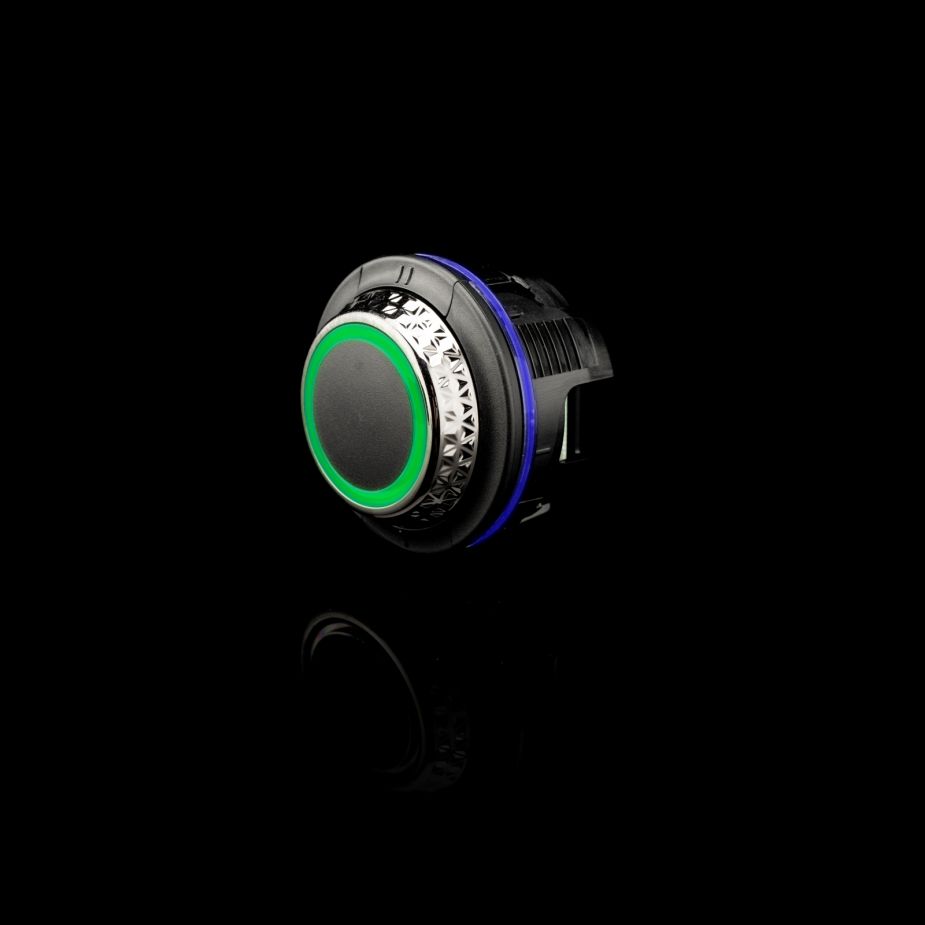

The GLADEN GLADIATOR is a compact, multifunctional rotary/push controller that allows for the direct operation of MOSCONI DSP processors and amplifiers. Designed for use in vehicles, it provides quick and easy access to essential DSP functions, eliminating the need for additional displays and distractions.
Thanks to its clearly structured operating concept, you can intuitively control the volume, subwoofer level, presets, and other parameters. Multi-level logic allows for individual adaptation to the respective sound system, and the controller automatically returns to the main function after a short period of inactivity.
The integrated RGB status display provides clear visual feedback on active functions and presets, ensuring maximum control while driving. Thanks to its compact dimensions and flexible flush or surface mounting, the GLADIATOR blends harmoniously into any vehicle interior.
Designed specifically for GLADEN-MOSCONI DSP systems, it can be integrated directly via the EXT-CARD interface for a clean, system-compliant, reliable operating solution.
Technical data Gladiator
-
System compatibility:
Gladen Mosconi DSP
-
Interface:
MOSCONI EXT-CARD 1
-
Software support:
MOSCONI GLADEN GUI from version 3.53 onwards
-
Visual feedback:
RGB light rings; color and brightness adjustable
-
Types of assembly:
Installation or assembly
-
Installation diameter:
41 mm
-
Total diameter:
45 mm
-
Installation depth:
19 mm
-
Color options for control element:
Chrome; optional black
