1 channel PWM amplifier

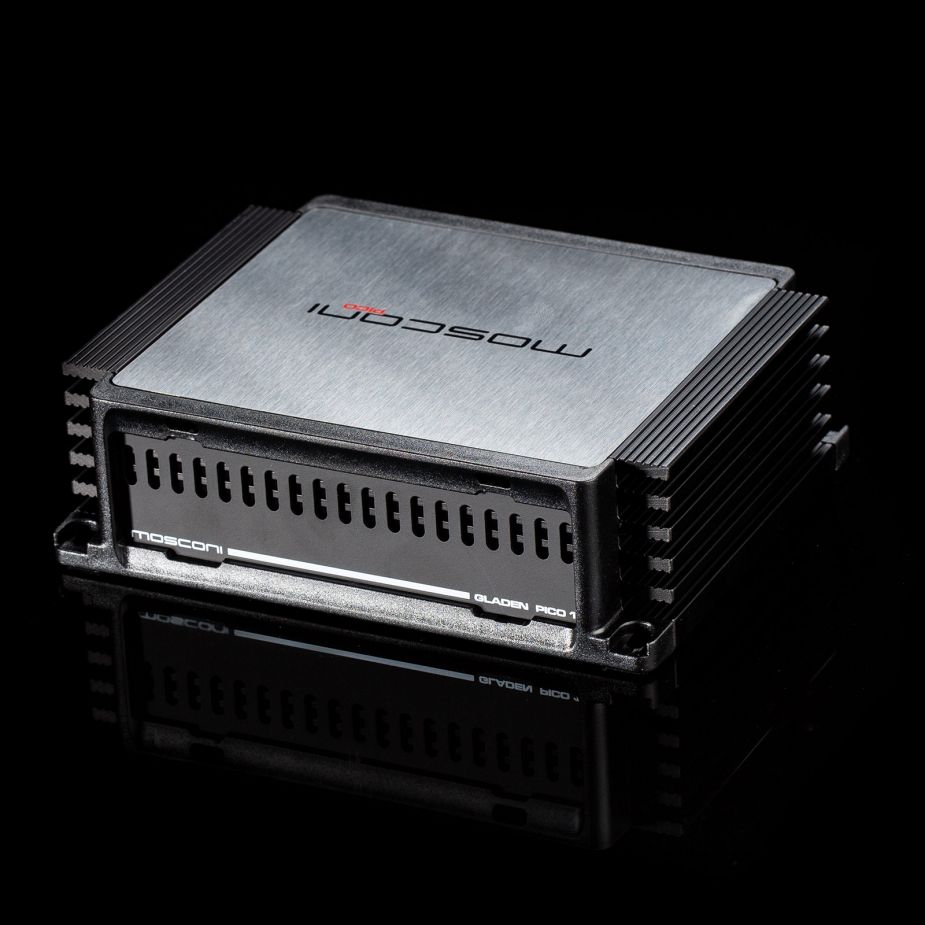

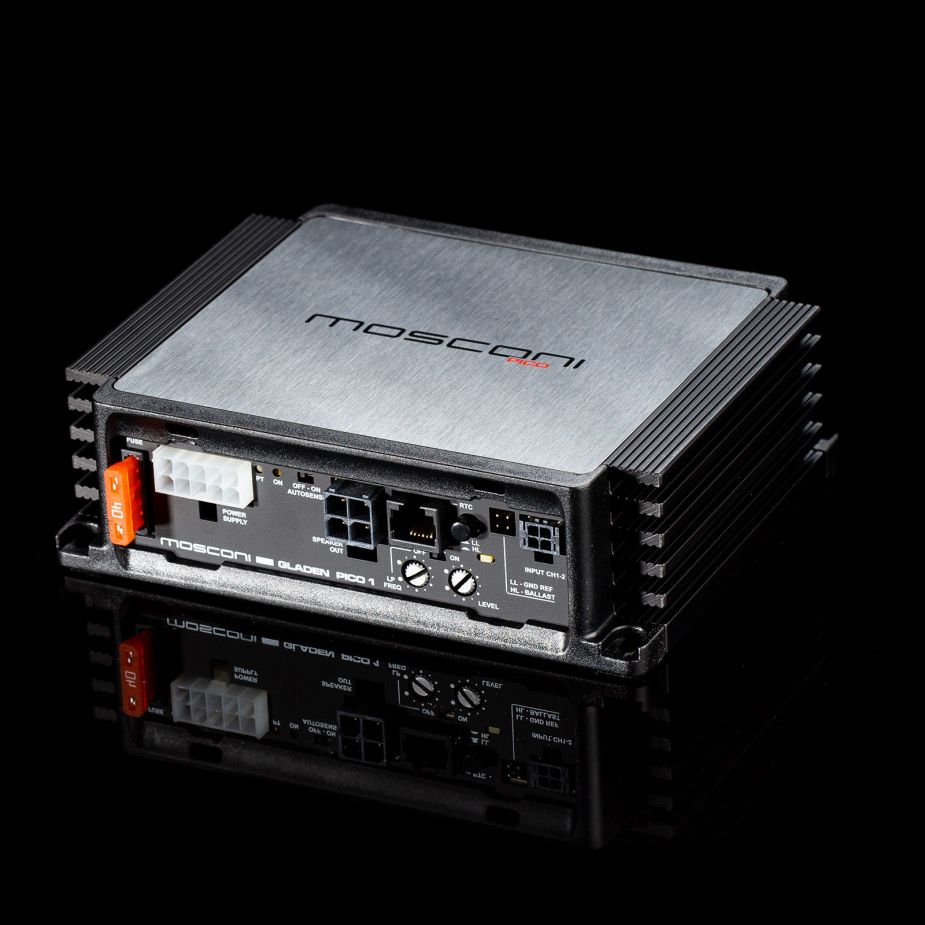

Mosconi Pico 1

  • 1 channel amplifier
  • Class D technology
  • Up to 750 Watts @ 2 Ohm
  • 12V and 18V Version

Overview Mosconi Pico 1

Full-range PWM amplifier with separate, synchronized modulation and fast high-current mosfets. The Mosconi PICO 1 delivers a full 750 Wrms into two ohms. It provides necessary power even to powerful subwoofers and extreme front systems at any time.

Ideal (subwoofer) supplement to a Mosconi PICO DSP amplifier, but with the high-level and low-level input and its own filters, it can also be used universally.

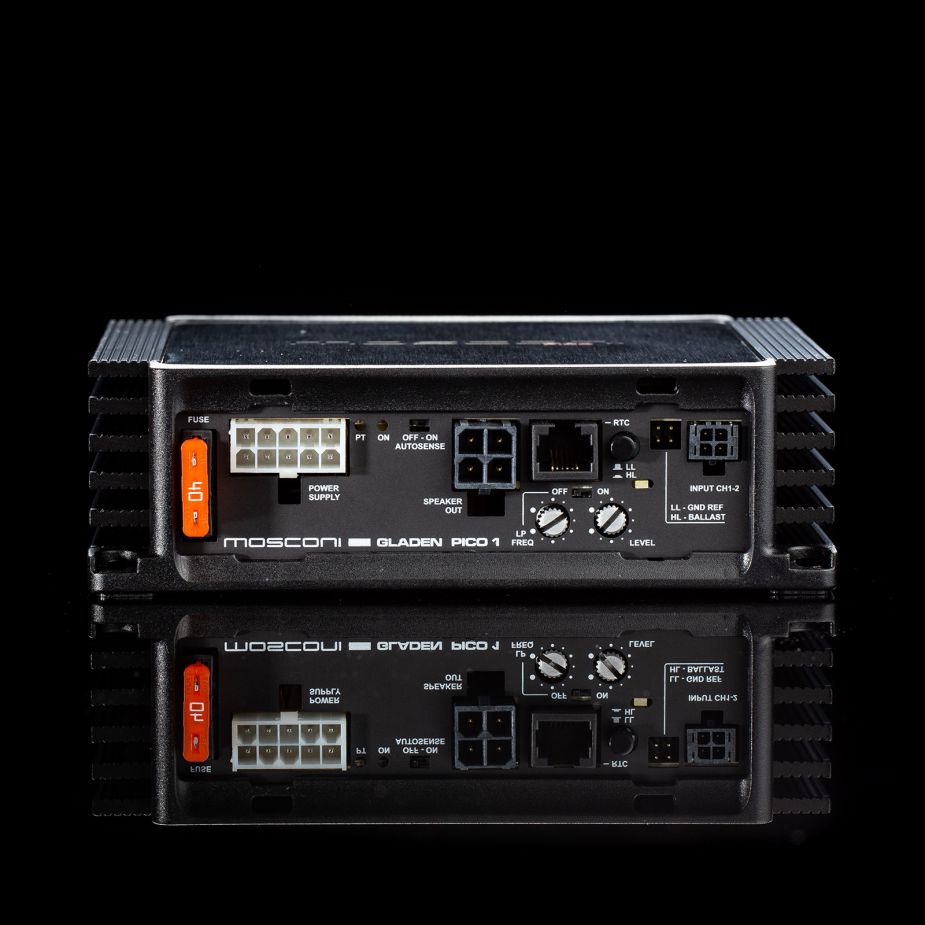

  • Automatic switch-on (only high level, SE or BTL mode)
  • Remote volume control (optional)
  • Molex connectors

The Pico 1 is also available as an 18 Volt version. This is specially adapted to the electrical system of the latest Tesla models.

Technical Data Mosconi Pico 1

OUTPUT POWER:

  • Output power RMS @ 4Ω:

    1 x 500 Watts

  • Output power RMS @ 2Ω:

    1 x 750 Watts

Specifications:

  • Input voltage:

    0,3 V - 20 V

  • Overall efficiency:

    > 75 %

  • Auto-On (only High Level):

    Off - BTL

  • Low-pass filter:

    Off / 45 - 310 Hz (12 dB/Oct)

  • Subsonic filter (always on) :

    13 Hz (12 dB/Oct)

  • Dimensions:

    150 x 115 x 46 mm

  • Weight:

    1050 Gramm

Download

Datasheet Mosconi Pico 1 (PDF)
Manual Mosconi Pico 1 (PDF)
Ground Reference Mosconi Pico 1
